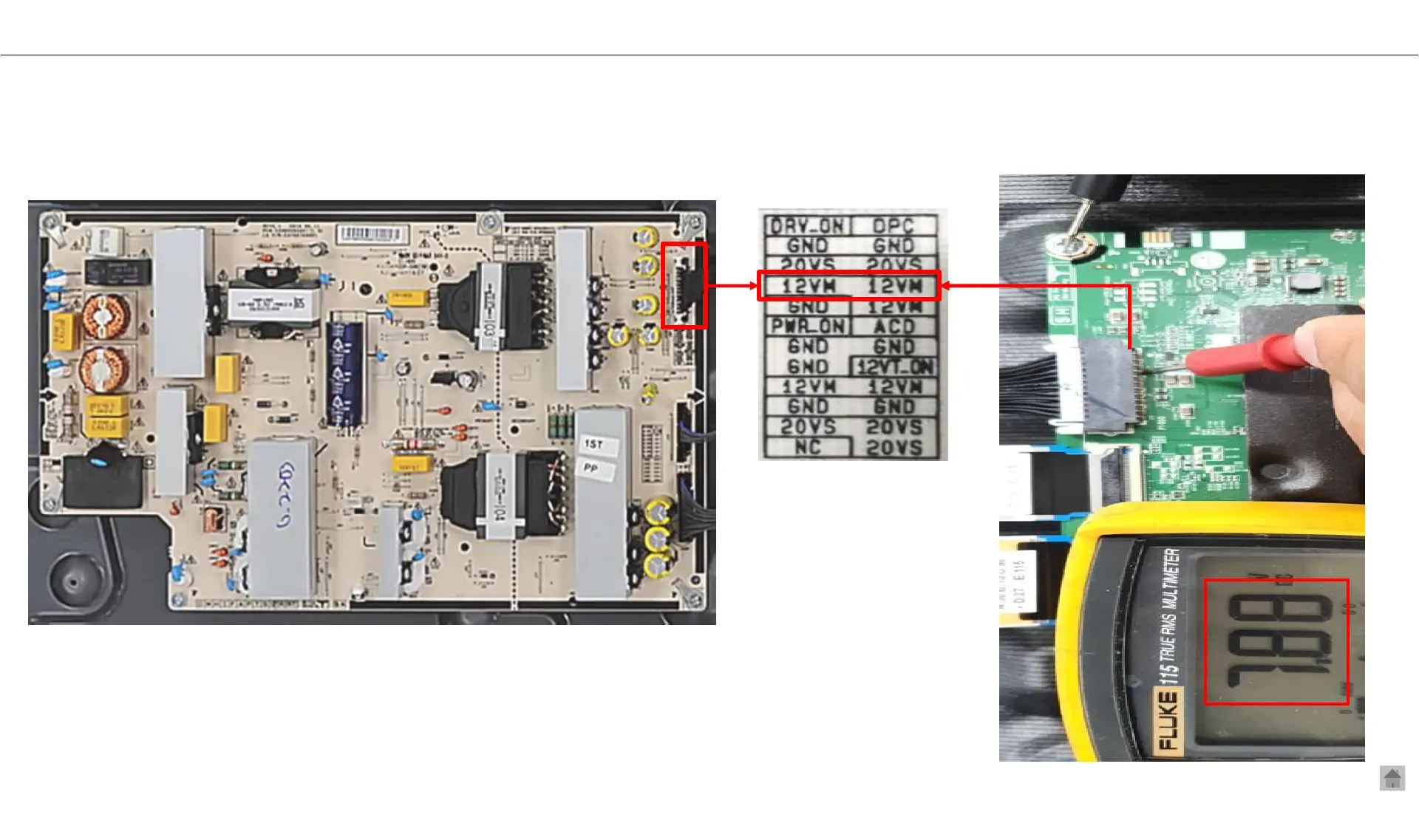

1. Measure the 12VM of Power B/D and Main B/D connector

2. When measuring 12VM, it is considered normal if ST-by is7.8V and Normal is 12.

3. If the result comes out ’NG’, replace Power Board

Note. 1 / 4

Note 1. How to measure ST-by

The ST-by voltage for each model may be different, so refer to the Appendix A9 page in Service Manual.

(Some models launched before 2017 may have 5V / 3.5V)

●

Only for training and service purposes.
