Normal
Audio
Y
N
Move to
No Video/No audio
No video
Normal audio
Check Vx1 lock
voltage
0V
Y
N
Check Power Board
output to Main.
(20V, 12V)
Normal
Voltage
Y
N
Replace Main B/D
Replace Power B/D
or repair parts
Check Power Board output
to Module.(20V)
Normal
Voltage
Y
Replace Module
N
Replace Power B/D
or repair parts
End
Always check & record S/W Version and White Balance value
before replacing the Main Board
Replace Main B/D
Re-enter White Balance value
※Precaution
Established
date

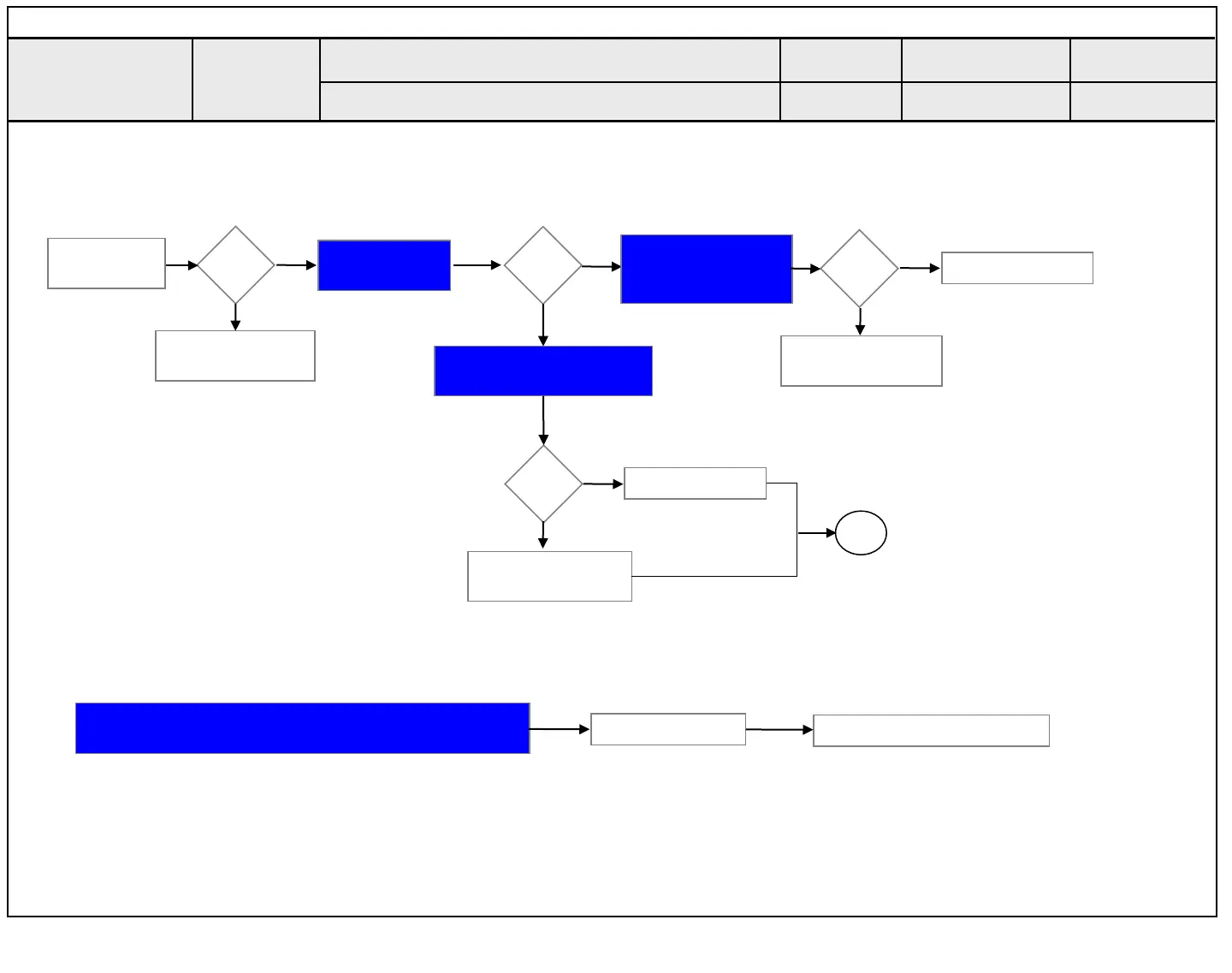

Standard Repair Process
Revised date
1/17
Error
symptom
A. Video error
No video / Normal audio
A10/A11
A10/A11
A4 & A2
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, Vx1 Cable, Speaker Cable, IR B/D Cable and so on)
1
A1
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
To Next Page
