10
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

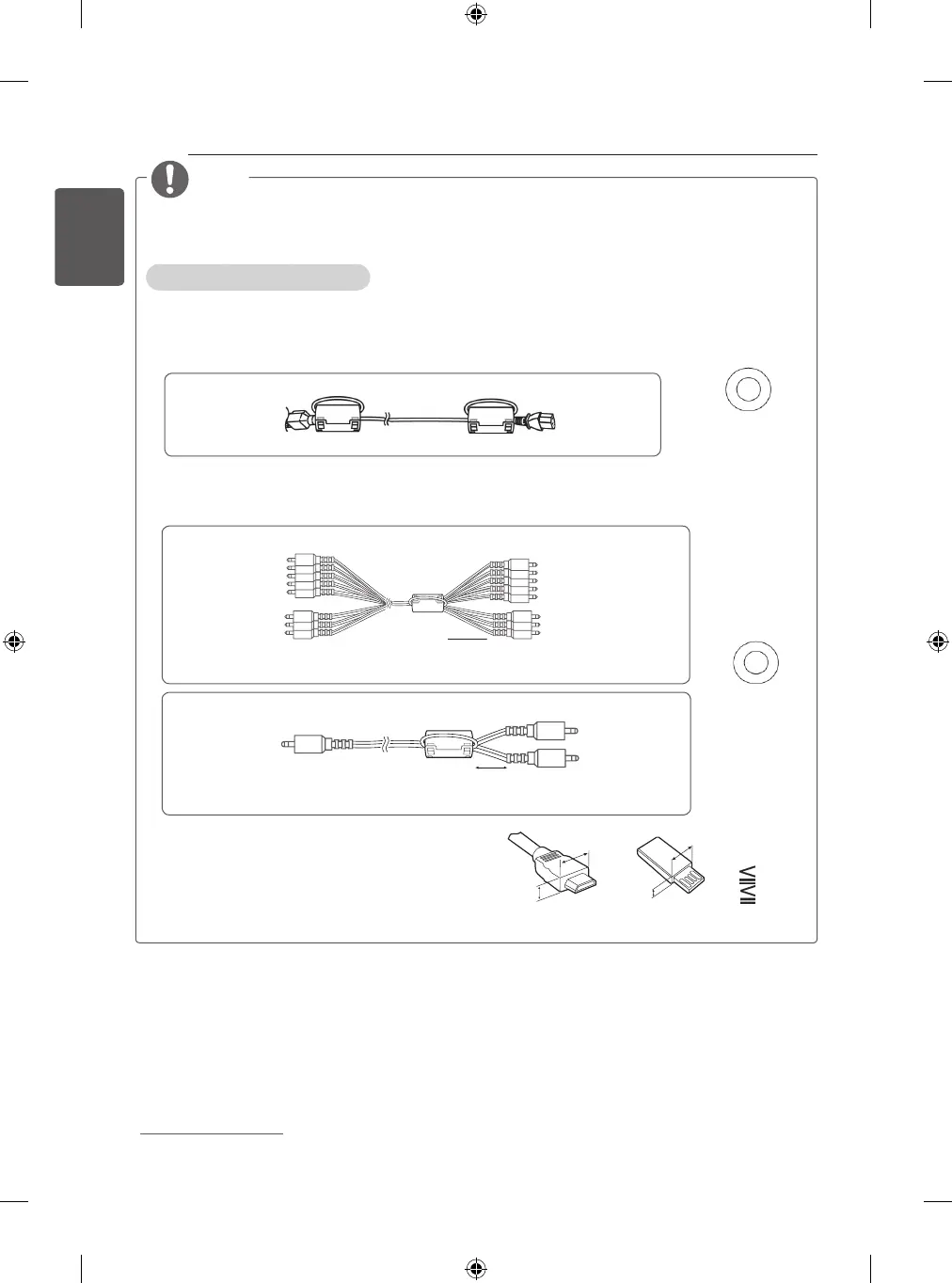

How to use the ferrite core
- If there are two ferrite cores, follow as shown in Figures 1.
- If there are three ferrite cores, follow as shown in Figures 1 and 2-1(or 2-2).
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once.
2 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L,
R cable & AV cable. Place the ferrite core close to the TV.
[Cross Section of
Ferrite Core]
(Black)
[to an External
device]
[to the TV]
10 mm(+ / - 5 mm)
[Figure 2-2]
y For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable
that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A 10 mm
*B 18 mm
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items. These devices only work with certain models. The model
name or design may be changed depending on the upgrade of product functions, manufacturer’s
circumstances or policies.
LG Audio Device
[to a wall plug]
[to the TV]
[Figure 1]
[Cross Section of
Ferrite Core]
(Black)
Place the ferrite core close to the TV and a wall plug.
Wind the
component Y, Pb, Pr, L, R cable & AV cable
on the ferrite core once.
[to an External
device]
[Figure 2-1]
[to the TV]
10 mm(+ / - 5 mm)
Wind the PC audio cable on the ferrite core once.
