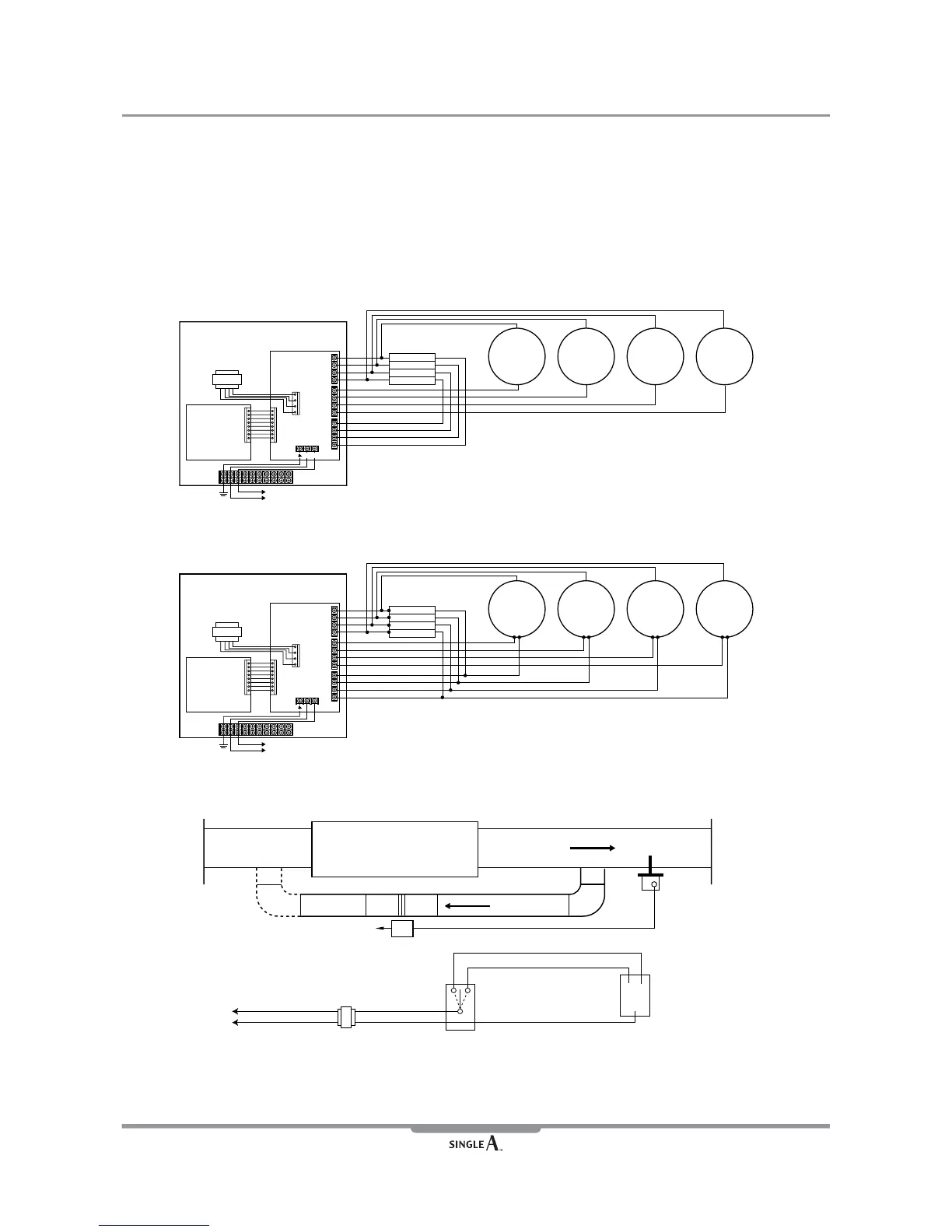

LG PQWRHSF0 Manual

Controller accessories 375
Zone Control
Indoor Unit
Main"
PCB
Damper"
Motor"
"1
Damper"
Motor"
"2
Damper"
Motor"
"3
Damper"
Motor"
"4
CH1
CH2
CH3
CH4
COM
COM
COM
COM
AC 24V
24V
24V
24V
Trans
Trans : 12VA"
(24V/130mA*4)
AC220~240V 50/60Hz
Zone"
Controller"
PCB
N
L
LL L
NNN
Thermostat " 1
Thermostat " 2
Thermostat " 3
Thermostat " 4
Damper"
Motor"
"1
Damper"
Motor"
"2
Damper"
Motor"
"3
Damper"
Motor"
"4
N
S
SS S
NN N
Thermostat " 1
Thermostat " 2
Thermostat " 3
Thermostat " 4
AC(L) AC(N)
Power Input
Indoor Unit
Main"
PCB
CH1
CH2
CH3
CH4
COM
COM
COM
COM
AC 24V
24V
24V
24V
Trans
Trans : 12VA"
(24V/130mA*4)
AC220~240V 50/60Hz
L": Live"
N": Neutral"
S": Signal
Zone"
Controller"
PCB
AC(L) AC(N)
Power Input
HVAC
By-pass damper
24 VCA"
power supply
Return Supply
Static"
pressure "
control
40 VA"
transformer
NC NO
Pressure controller
Closed
Common
3-channel damper motor
Open
1"
"
2"
"
3"
"
• Spring Return Damper Actuators
• Non Spring Return Damper Actuators
By Pass Damper System :-
To maintain an adequate flow of air and static pressure through the HVAC system, a by-pass system can be used that is
equipped with a motorized damper and a static pressure control.
Installation method:
• Connect main lead wires between main PCB and Zone Control.
• Connect thermostat to Zone Control according to thermostat maker's manuals.
• Connect Damper Motor to Zone Control according to Damper Motor maker's manuals.
• Wiring also depends upon the type of the damper actuators.
