10 AHU Control Kit / EEV Kit
Before Installation
Selection of Evaporator(Air Handling Unit)
See table below for applicable units

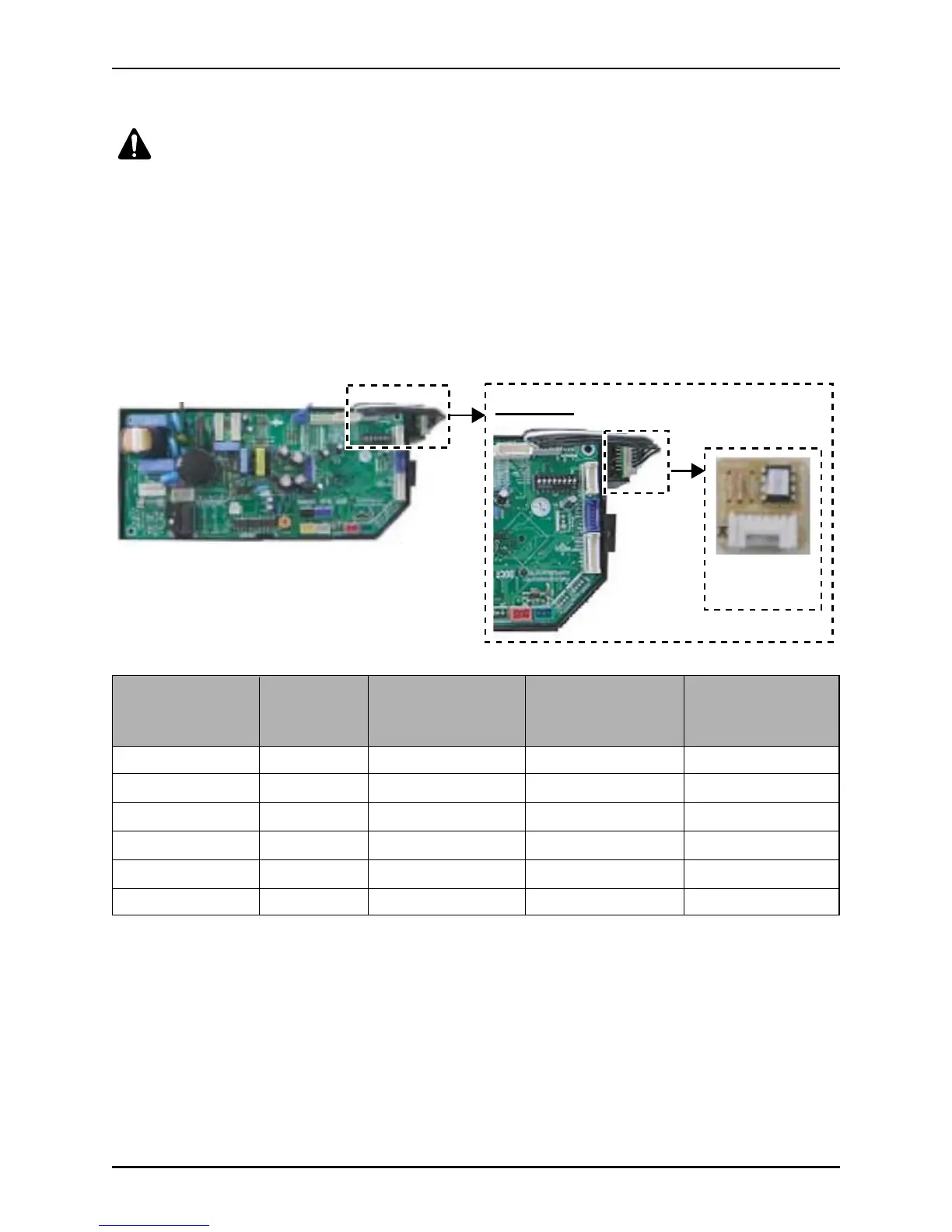

Selecting the capacity setting 'Option PCB'(Accessory) according to the capacity mentioned below.
- The corresponding capacity setting ' Option PCB' needs to be selected depending on the need
capacity.
- After checking the need capacity, remove the 36k
Option PCB equipped in the main PCB,
and set up the
Option PCB fitted the need capacity in the main PCB.
CAUTION
Saturated Suction Temperature (SST) = 6°C, SH (Superheat) = 5K, Air Temperature = 27°C DB / 19°C WB.
(Main PCB)
EBR52358907 28K 0.88~1.08 7 ~ 9 22 ~ 26
EBR52358908 36k 0.88~1.08 9 ~11 25 ~ 32
EBR52358909 42k 0.88~1.08 11~ 13 31 ~ 35
EBR52358910 48k 1.23~1.51 13 ~ 16 33 ~ 45
EBR52358911 76k 1.93~2.35 20 ~ 24 50 ~ 64
EBR52358912 96k 1.93~2.35 25 ~ 31 64 ~ 72
Option PCB
P/No
Capacity
(Btu/h)
Allowed heat
exchanger
Volume (dm
3
)
Allowed heat
exchanger capacity
(kW)
Air flow rate
(CMM)
Capacity setting
'Option PCB'
Detail
