Installation Manual 17
ENGLISH
Control Kit Installation
Electric Wiring Work
1. For electric wiring, refer to figure 'Circuit diagram' mentioned below.

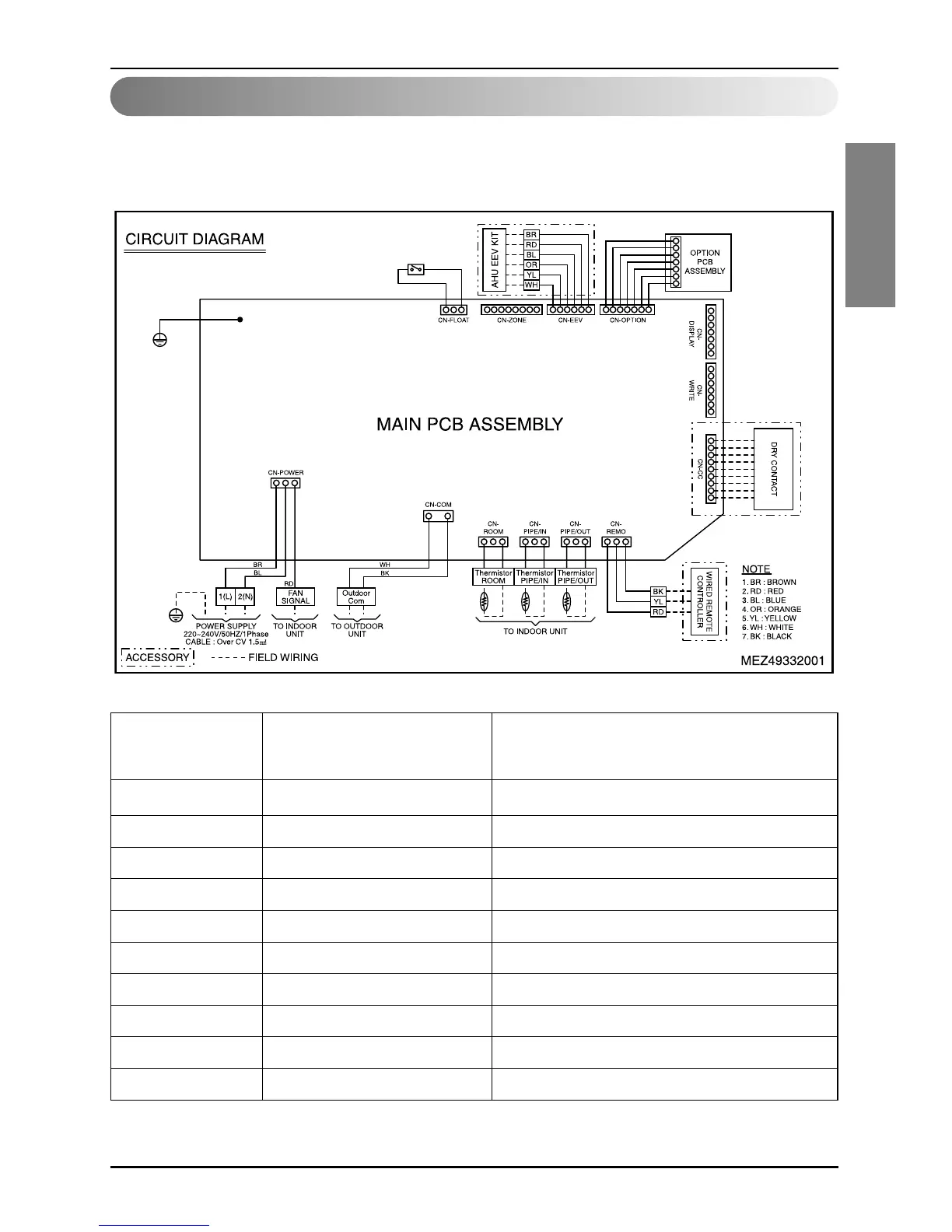

■ Circuit diagram
CN-POWER AC POWER SUPPLY
AC POWER LINE INPUT FOR INDOOR CONTROLLER
CN-COM COMMUNICATION
CONNECTION BETWEEN INDOOR AND OUTDOOR
CN-ROOM ROOM SENSOR ROOM AIR THERMISTOR
CN-PIPE/IN SUCTION PIPE SENSOR PIPE IN THERMISTOR
CN-PIPE/OUT
DISCHARGE PIPE SENSOR
PIPE OUT THERMISTOR
CN-REMO REMOTE CONTROLLER REMOTE CONTROL LINE
CN-FLOAT FLOAT SWITCH INPUT FLOAT SWITCH SENSING
CN-EEV EEV OUTPUT EEV CONTROL OUTPUT
CN-OPTION OPTION PCB
COMMUNICATION BETWEEN MAIN AND OPTION
CN-CC DRY CONTACT DRY CONTACT LINE
LOCATION POINT FUNCTION
CONNECTOR
NUMBER
To Next Page
