LG PRCKA0 - Mechanical Installation

12 AHU Control Kit / EEV Kit
EEV Kit Installation

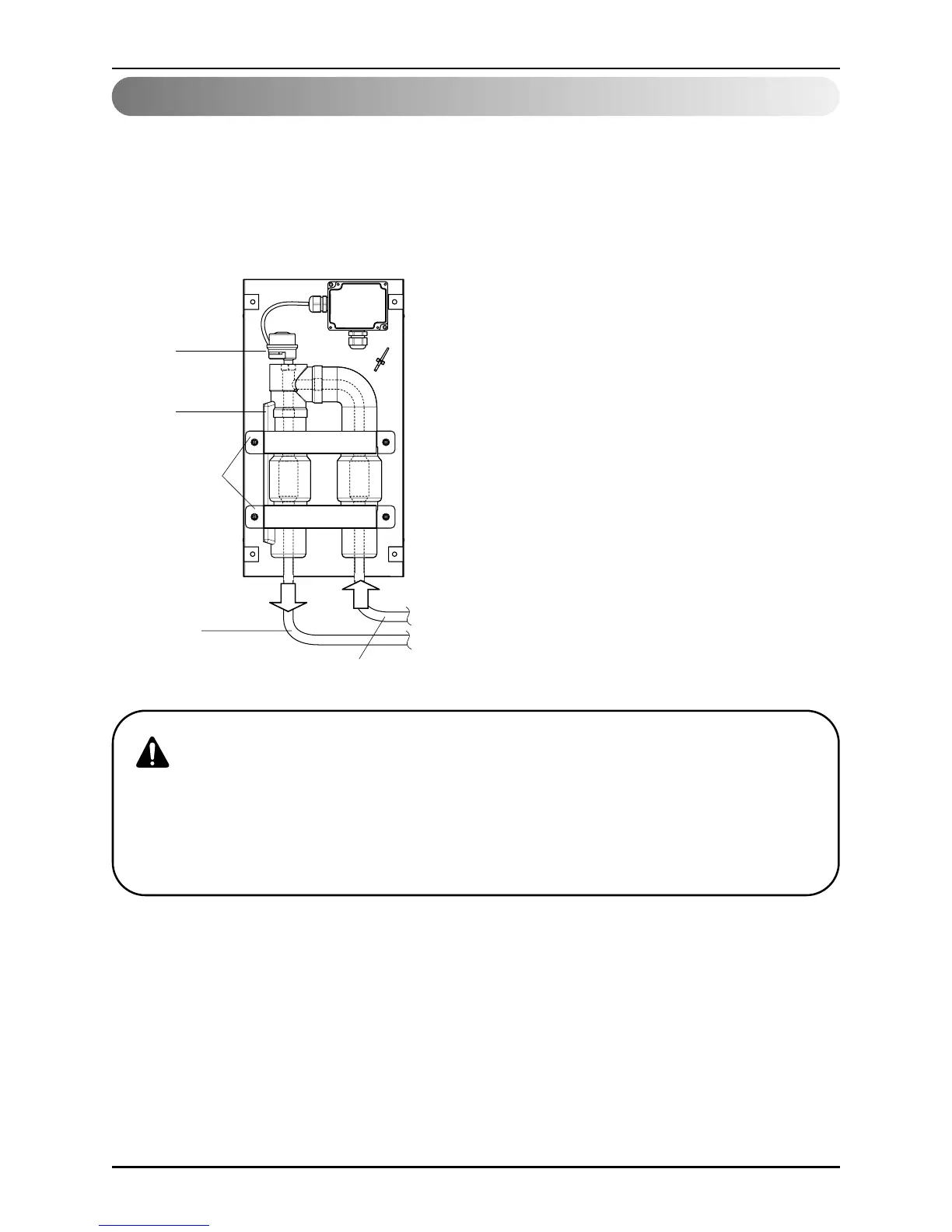

3. Prepare the inlet/outlet field piping just in front of the connection(do not braze yet).
4. Remove the pipe fixing bracket(C) by unscrewing 4 x M4.
5. Remove the Pipe insulation.
6. Braze the field piping.
A. Inlet coming from the outdoor unit
B. Outlet to evaporator
C. Pipe fixing bracket(2EA)
D. Pipe insulation
E. EEV Assembly
F. Field pipe(Inlet / Outlet)
E
D
C(2EA)
F
F
B A
■ Make sure to cool the filters and EEV body with a wet cloth and make sure the body
temperature does not exceed 120°C during brazing.
■ Make sure that the other parts such as electrical box, tie wraps and wires protected from
direct brazing flames during brazing.
CAUTION
Mechanical installation
