BEFORE INSTALLATION
11
ENGLISH
CAUTION
Selection of Evaporator(Air Handling Unit)
See table below for applicable units
Selecting the capacity setting 'Option PCB'(Accessory) according to the capacity mentioned
below.
- The corresponding capacity setting 'Option PCB' needs to be selected depending on the
need capacity.

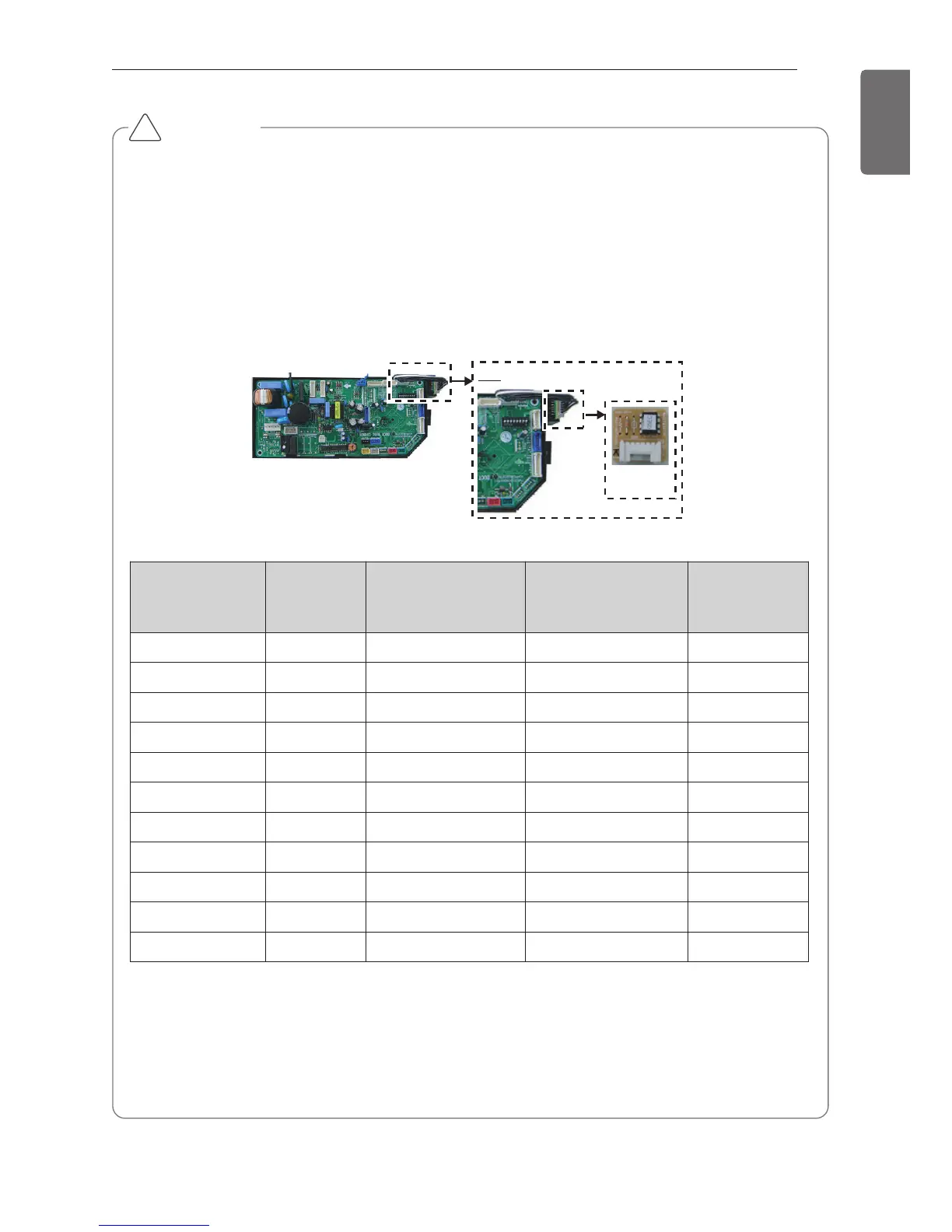

- After checking the need capacity, remove the 192 k Option PCB equipped in the main
PCB, and set up the Option PCB fitted the need capacity in the main PCB.
* Evaporator Saturated Temperature(SST) = 6 °C, SH (Superheat) 5K, Air Temperature =
27 °C DBT / 19 °C WBT
* Heat exchanger volume [m
3
] : Pipe cross-section × Tube length
-. Pipe cross-section [m
2
] = π × ID
2
/4
-. Tube length [m] = Tube length of 1 pipe × Tube step × Tube row
!
Capacity setting
'Option PCB'
Detail
Option PCB
P/NO
Capacity
(Btu/h)
Standard heat
exchanger volume
(10
-3
× m
3
)
Maximum heat
exchanger capacity
(kW)
Air Flow rate
(CMM)
EBR52358907 28 k 2.7 8.6 22~26
EBR52358908 36 k 3.1 11 25~32
EBR52358909 42 k 3.4 13.8 31~35
EBR52358910 48 k 4.0 15.4 33~45
EBR52358911 76 k 5.4 22.2 50~64
EBR52358912 96 k 6.3 28.1 64~72
EBR52358914 115 k 7.3 33.7 72~88
EBR52358915 134 k 8.5 39.3 88~103
EBR52358916 153 k 9.5 45.4 103~116
EBR52358917 172 k 10.5 50.4 114~129
EBR52358913 192 k 11.2 56.2 121~137
