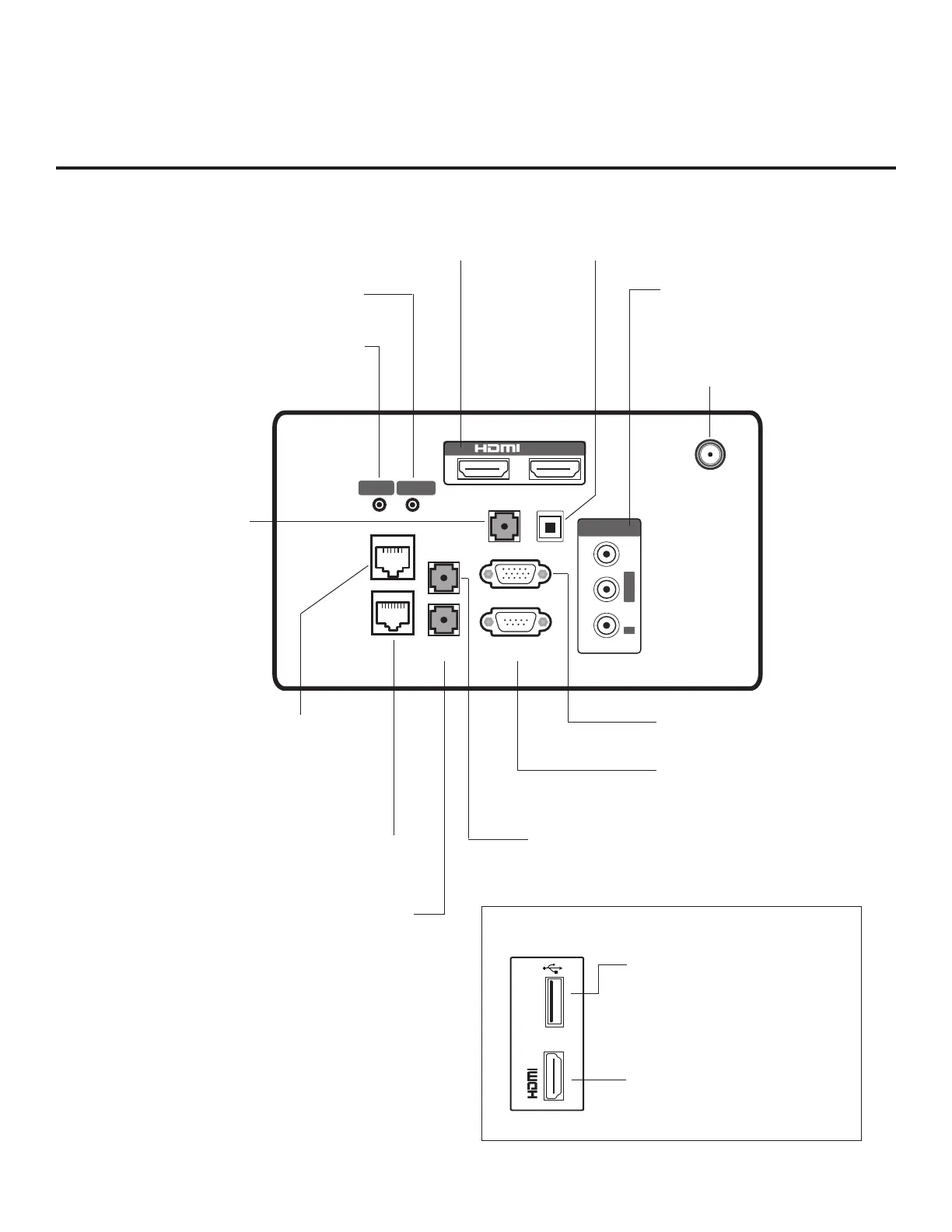

LG Pro Centric 32LP645H - Reference: LP645 H Rear and Side Jack Panels; TV Port Descriptions

69
206-4232
IN 3
..........
USB IN
ANTENNA/
CABLE IN
RGB IN (PC)
TV-LINK
CFG
AUDIO IN (RGB/DVI)
SPEAKER OUT
LINE OUT
PTC SERVICE
(SERVICE ONLY)
RJP
GAME CONTROL
/MPI
RS-232C IN
(SERVICE ONLY)
/ DVI IN
1
2
..........
..........
VIDEO
L/MONO-AUDIO-R
AV IN
L R
RESET
UPDATE
OPTICAL
AUDIO OUT
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and
turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode,
the MPI function enables an external MPI
control device (i.e., clone programmer, VOD/
PPV STB, etc.) to control the TV. Game
Control—EBL in LodgeNet PPV Mode only.
AUDIO/VIDEO IN
Connection for composite audio/
video output from external device.
SPEAKER OUT
LINE OUT
( 3.5 mm jack) Connect
external audio (xed speaker,
variable speaker, or xed line
level [amplier]) equipment.
See Reference section,
“External Stereo Speaker
Setup,” for further information.
RS-232C (SERVICE ONLY)
Typically used for downloading
software updates, etc.
RJP
Connection for Remote Jack
Pack (RJP) Control cable.
HDMI/DVI IN
Connection for HDMI/DVI
output from external device.
ANTENNA/CABLE IN
Connect to Antenna/CATV.
PTC SERVICE (SERVICE ONLY)
Restricted to PTC service updates.
TV-LINK CFG
( 3.5 mm jack) Use for direct
PC-to-TV FTG configuration.
Side Jack Panel
HDMI
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.
Reference: LP645H Rear and Side Jack Panels
OPTICAL AUDIO OUT
Use for amps and home theater systems.
Note: When the TV is OFF, this port is not enabled.
RGB IN (PC)
Connection for RGB output from PC.
