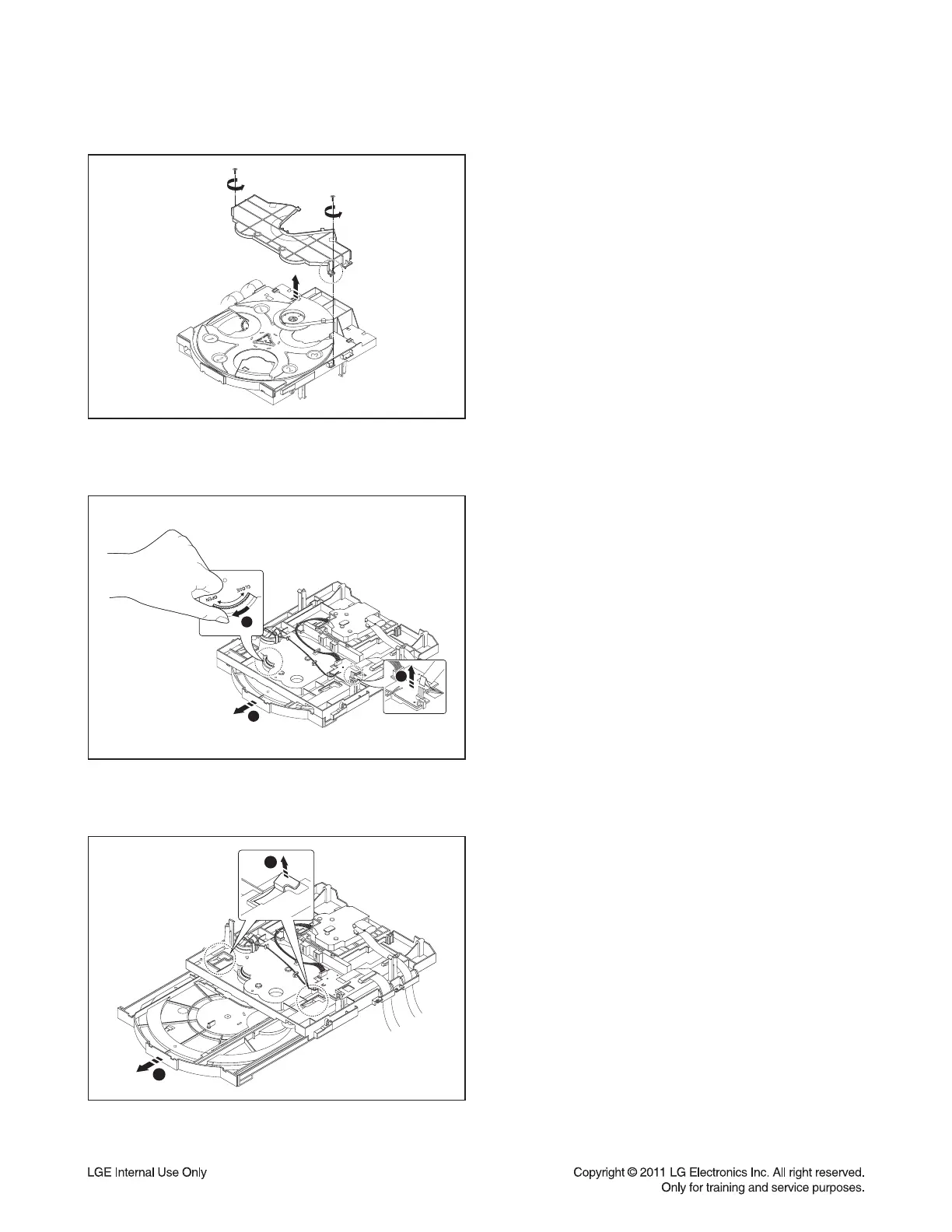

DISASSEMBLY AND ASSEMBLY FOR MECHANISM DECK (CDM-H1803)
1. ORDER OF DISASSEMBLY FOR MECHANISM DECK
Figure 1
1) Disassemble the Cover Guide Disc.
2
1
Figure 3
3) Pull up the Holder 1 to completely disassemble the
Tray Loading Assy from the Base Main Assy.
3
2
1
Figure 2
2) Disassemble the Loading FFC from the Main PCB
Assy.
Turn the Gear in OPEN direction as shown in Figure 2
to take out the Tray Loading Assy in 3 direction.
