LG RCS606F Service Manual

3-49 3-50
+12V
SMPS
+3.7VA
+5.6V
SPEANA
Q601
IC605
MIC AMP
S4308
FAN
Q701
IC102
RESET
KIA7027
D102
D104
IC101
U_COM
LC87F085
IC601
LDO
TJ3965D
TU101
TUNER
YST996
IC103
PWR SENS
KIA7027AF
IC100
EEPROM
24CS16
IC602
PWM
PS9850
IC603
ADC(MIC)
AK5358A
IC201
IPOD AMP
NJM2794
IC501
MCS
MLC9800
IC502
SDRAM
EM638165
IC503
FLASH
MX25L8005
IC506
CP2.0B
Q405
IC407
RF
BU9543KV
Q406
+1.8V
+3.3V
VCC12
IC509
KIA1112F
IC504
USB HUB
USB2512A
IC701/702/703
POW AMP
TAS5631
FRONT LED
9EA x 2
VOLUME LED
9EA
DIG301
VFD
RMC301
REMOCON
IC507
74AHC244
IC401
TJ3965D
IC801
BEAT BOX
FS-503B
IC802
TJ3965D
VCC12A
IC803
BOOT
FLASH 16MB
IC805
BEAT SOURCE
FLASH 32MB
WOOFER
EXTENDERx2
12VA
IC505
278P33
IC203
IPOD PWR
LM39102D
IC3U01
USB PWR
LM39102D
IC408
MOTOR
AM3053S
IC406
MOTOR
S8082
ADC
IC202
CS5346
VCC33
+5V
IC604
DRV603
+3.3V(ADC)
+3.3V(CD)
+3.3V(RF)
+3.3V(USB)
+3.3V(BEAT)
IC806
74AHC244
IC807
74AHC244
D301
IC5058
TJ3965D
+48V
IC701/702/703
AUDIO AMP
TAS5631
+3.3V(CD)
FL·
DIG301
D101
D302
k’G

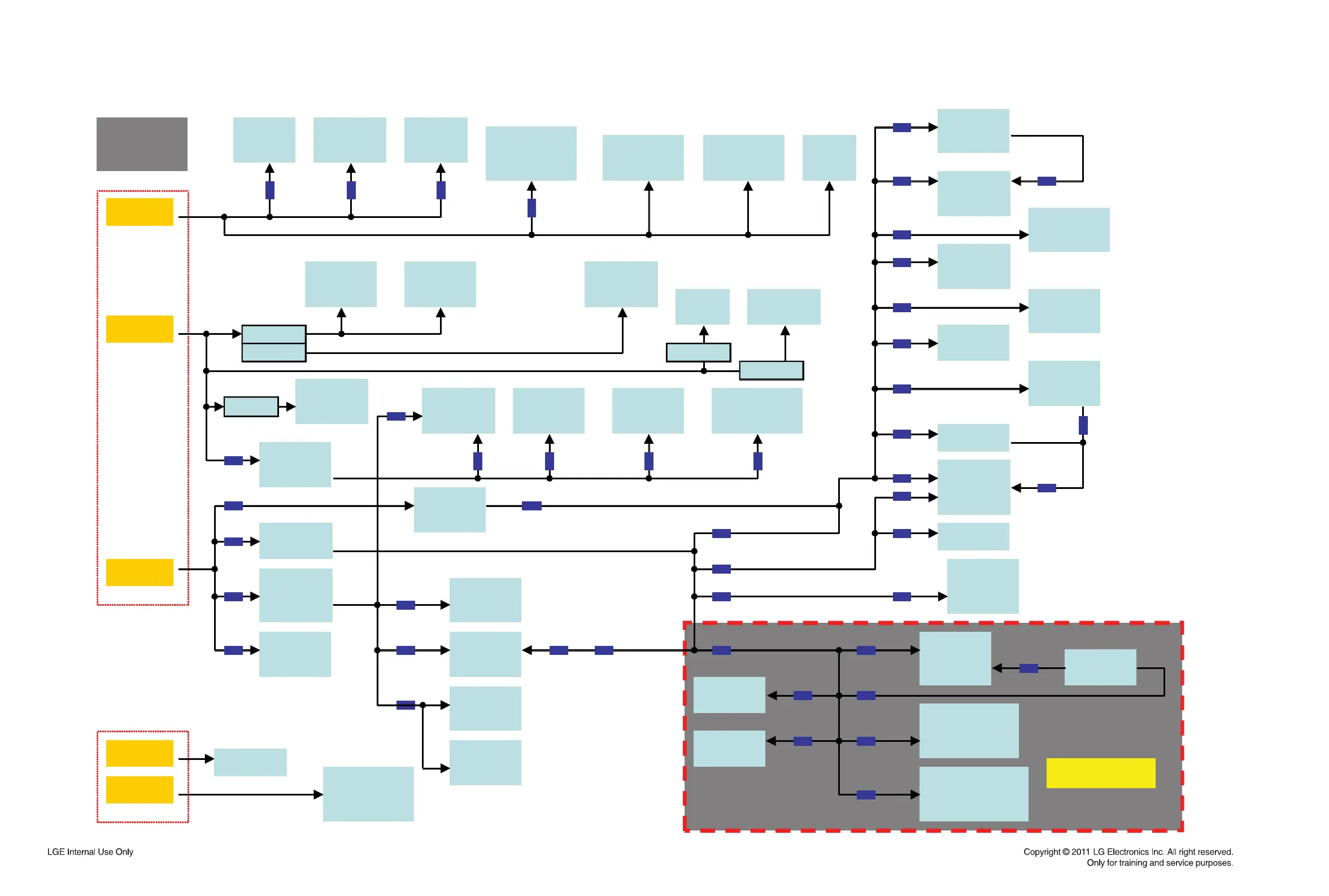

3. POWER BLOCK DIAGRAM
