3) Set the Gear Loading 1 and Gear Pulley 2 on the
Base Main.
Hang the belt between the Gear Pulley and Motor Pul-
ley.
Assemble the Clamp Disc, Clamp Magnet and Cover
Plate to the Base Main.
4) After setting the Gear Main 2, Gear Pu Up 3 and Gear
Pu Down 4 on the Base Main, tighten the screws.
After assembling the Gear Main, align the location as
shown in Figure.

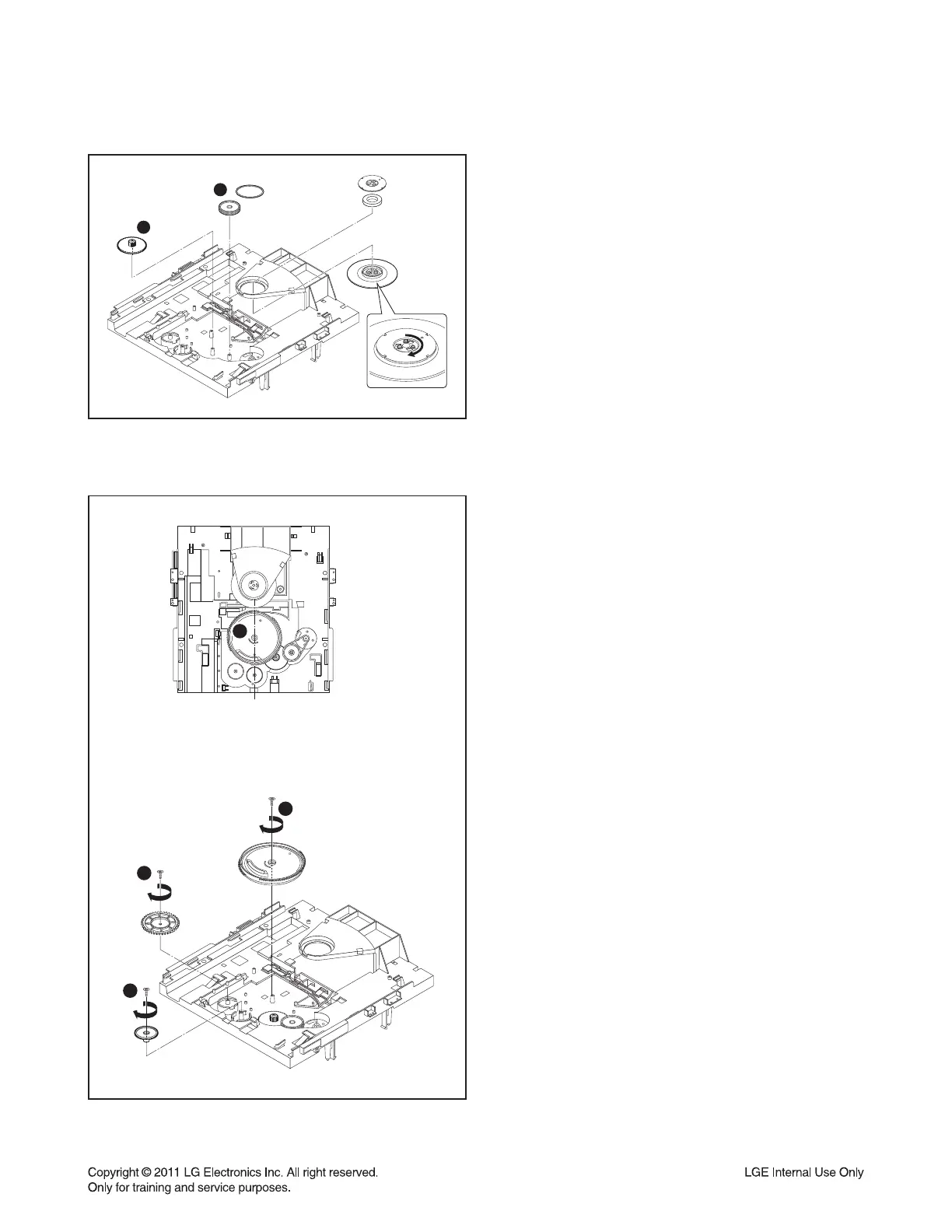

ORDER OF ASSEMBLY FOR MECHANISM DECK
1
2
Figure 3
Figure 4
2
3
4
1
