- 19 -

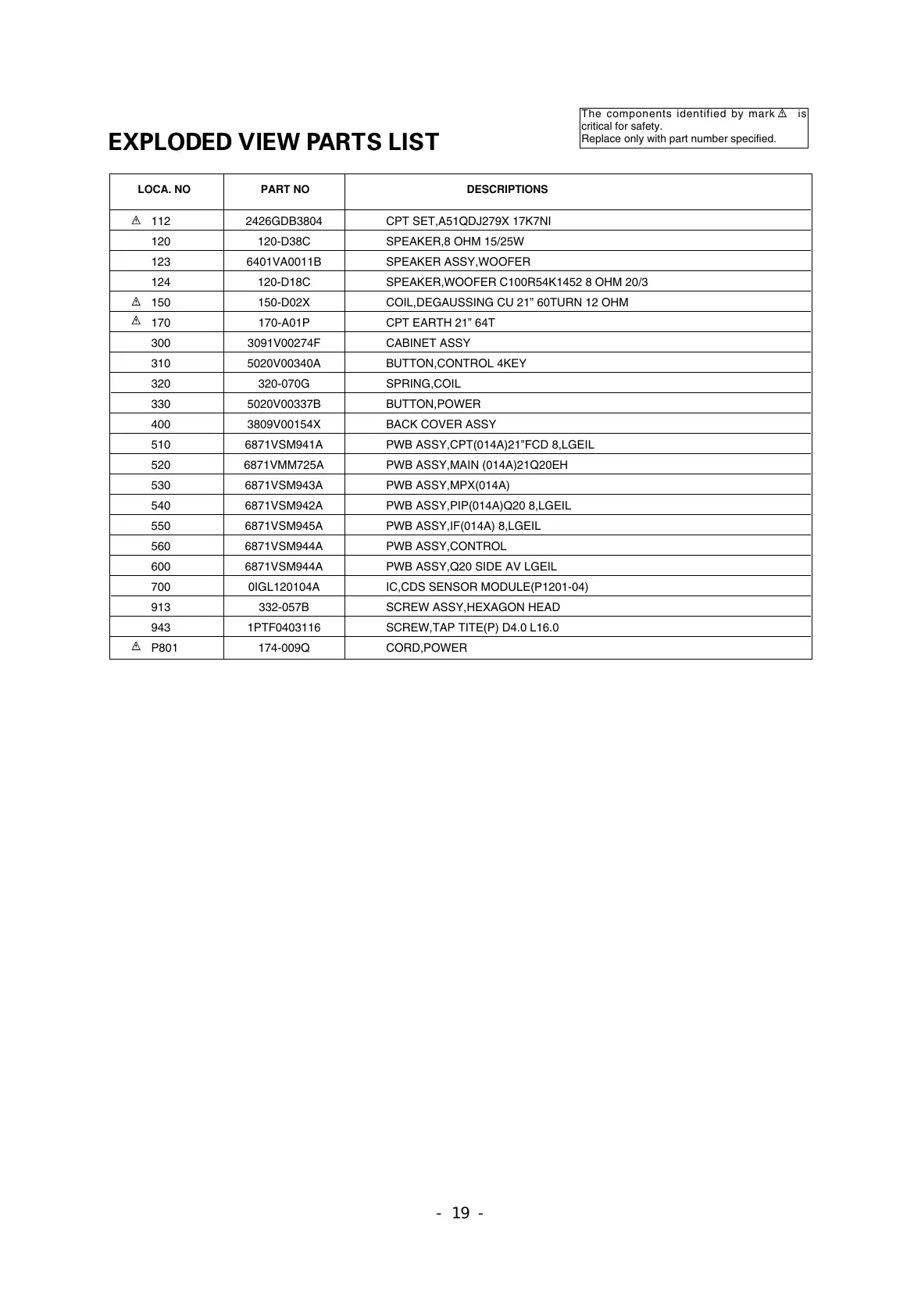

EXPLODED VIEW PARTS LIST
LOCA. NO PART NO DESCRIPTIONS
112 2426GDB3804 CPT SET,A51QDJ279X 17K7NI
120 120-D38C SPEAKER,8 OHM 15/25W
123 6401VA0011B SPEAKER ASSY,WOOFER
124 120-D18C SPEAKER,WOOFER C100R54K1452 8 OHM 20/3
150 150-D02X COIL,DEGAUSSING CU 21” 60TURN 12 OHM
170 170-A01P CPT EARTH 21” 64T
300 3091V00274F CABINET ASSY
310 5020V00340A BUTTON,CONTROL 4KEY
320 320-070G SPRING,COIL
330 5020V00337B BUTTON,POWER
400 3809V00154X BACK COVER ASSY
510 6871VSM941A PWB ASSY,CPT(014A)21”FCD 8,LGEIL
520 6871VMM725A PWB ASSY,MAIN (014A)21Q20EH
530 6871VSM943A PWB ASSY,MPX(014A)
540 6871VSM942A PWB ASSY,PIP(014A)Q20 8,LGEIL
550 6871VSM945A PWB ASSY,IF(014A) 8,LGEIL
560 6871VSM944A PWB ASSY,CONTROL
600 6871VSM944A PWB ASSY,Q20 SIDE AV LGEIL
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-057B SCREW ASSY,HEXAGON HEAD
943 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0
P801 174-009Q CORD,POWER
The components identified by mark is
critical for safety.
Replace only with part number specified.
