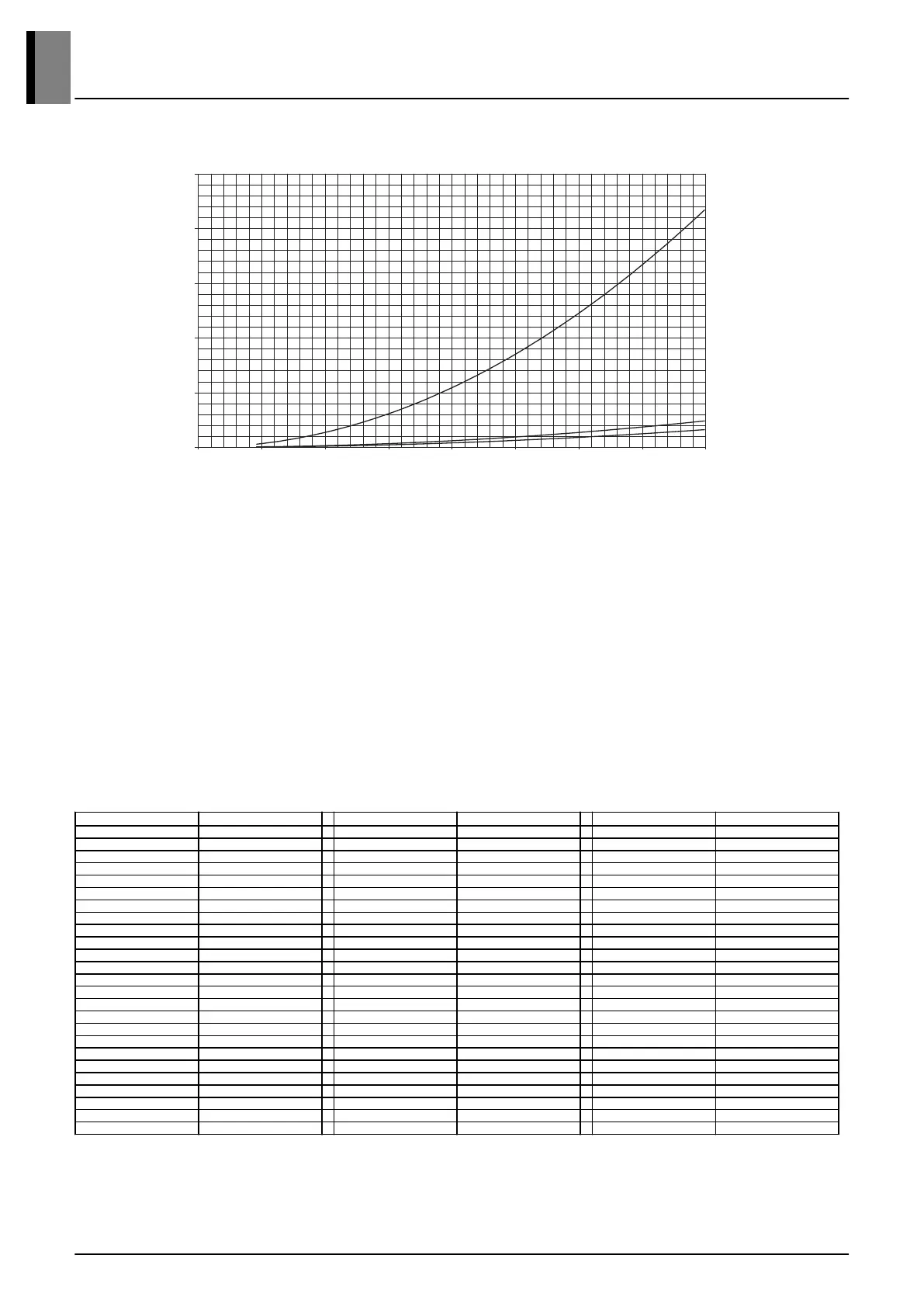

1.3 Minimum Floor Area for Installation : accordance with IEC06
Floor standing
Wall mounted
Ceiling mounted
0
500
1000
1500
2000
2500
0 2 4 6 8 16141210
Minimum Area for installation ( m² )
Total refrigerant amount in the system ( kg )
<!> CAUTIONS
• "Minimum Area for installation" might be different by revision of IEC regulation. "Minimum Area for installation" should be
selected in accordance with that revision based on the local and national environment.
• The following information is according to 'IEC 60335-2-40:2018 Edition 6.0'.
• Pipe-work shall be protected from physical damage and shall not be installed in an unventilated space, if that space is
smaller than minimum area for installation.
• The unit should be installed, operated and stored in a room with a floor area larger than the minimum area.
Use the below calcuation formula to determine the minimum area.
- m
c
: T
otal refrigerant amount in the system = factory refrigerant charge + additional refrigerant amount (kg)
- A
min
: Minimum Area for installation of unit
- LFL : Lower flammability limit (kg/m
3
). In case of R32, LFL is 0.307 kg/m
3
- h
0
: Height of unit installation
Choose the higher of the two values.
A
min
= [m
c
/ (2.5 x LFL
5/4
x h
0
)]
2
or A
min
= m
c
/ (0.75 x LFL x h
0
)
* The table below is a reference value, and the exact value is calculated and applied.
m
c
(kg) A
min
m
c
(kg) A
min
m
c
(kg) A
min
< 1.842 No Limit 6.6 27.6 11.6 85.2
1.842 3.6 6.8 29.3 11.8 88.1
2.0 3.9 7.0 31.0 12.0 91.2
2.2 4.3 7.2 32.8 12.2 94.2
2.4 4.7 7.41 34.7 12.4 97.3
2.6 5.1 7.6 36.6 12.6 100.5
2.8 5.5 7.8 38.5 12.8 103.7
3.0 5.9 8.0 40.5 13.0 107.0
3.2 6.5 8.2 42.6 13.2 110.3
3.4 7.3 8.4 44.7 13.4 113.7
3.6 8.2 8.6 46.8 13.6 117.1
3.8 9.1 8.8 49.0 13.8 120.6
4.0 10.1 9.0 51.3 14.0 124.1
4.2 11.2 9.2 53.6 14.2 127.6
4.4 12.3 9.4 55.9 14.4 131.3
4.6 13.4 9.6 58.3 14.6 134.9
4.8 14.6 9.8 60.8 14.8 138.7
5.0 15.8 10.0 63.3 15.0 142.4
5.2 17.1 10.2 65.9 15.2 146.3
5.4 18.5 10.4 68.5 15.4 150.1
5.6 19.9 10.6 71.1 15.6 154.1
5.8 21.3 10.8 73.8 15.8 158.0
6.0 22.8 11.0 76.6 15.964 161.3
6.2 24.3 11.2 79.4
6.4 25.9 11.4 82.3
