12
Connecting
2
Connecting

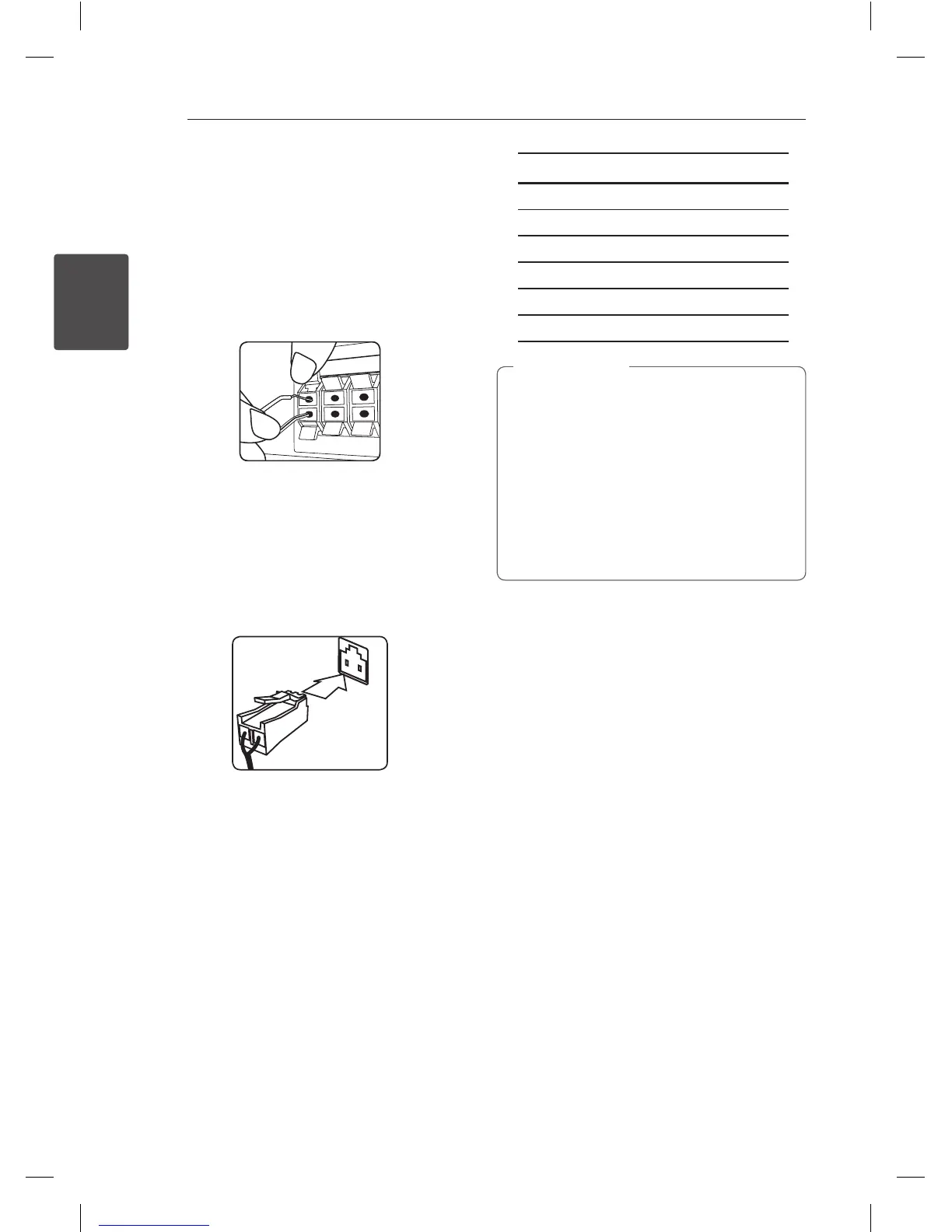

Attaching the speakers
to the unit
1. To connect the cable to the unit, press each
plastic finger pad to open the connection
terminals on the unit. Insert the wire and release
the finger pad.
2. Connect the black stripe of each wire to the
terminals marked - (minus) and the other end
to the terminals marked + (plus).
Connect a woofer cord to the player.
When connecting a woofer cord to the player,
insert the connector until it clicks.
Speaker Position
REAR R Rear right
REAR L Rear left
CENTER Center
SUB WOOFER Any front position
FRONT R Front right
FRONT L Front left
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
>
Caution
DH4130S-F2_DCHLLLK_ENG_8518.indd 12 2013-05-14 11:58:57
