3-2
ONE POINT REPAIR GUIDE
1. NO POWER PROBLEM (PVDD)
No power problem occurs when you power on the unit
1-1. Solution
Replace SMPS board.
1-2. How to troubleshoot (Countermeasure)
1) Check the PVDD voltage 18.7 V at pin1, 2, 3.
When you check the no power at this point, then replace SMPS board.
1-3. Service hint (Any picture / Remark)

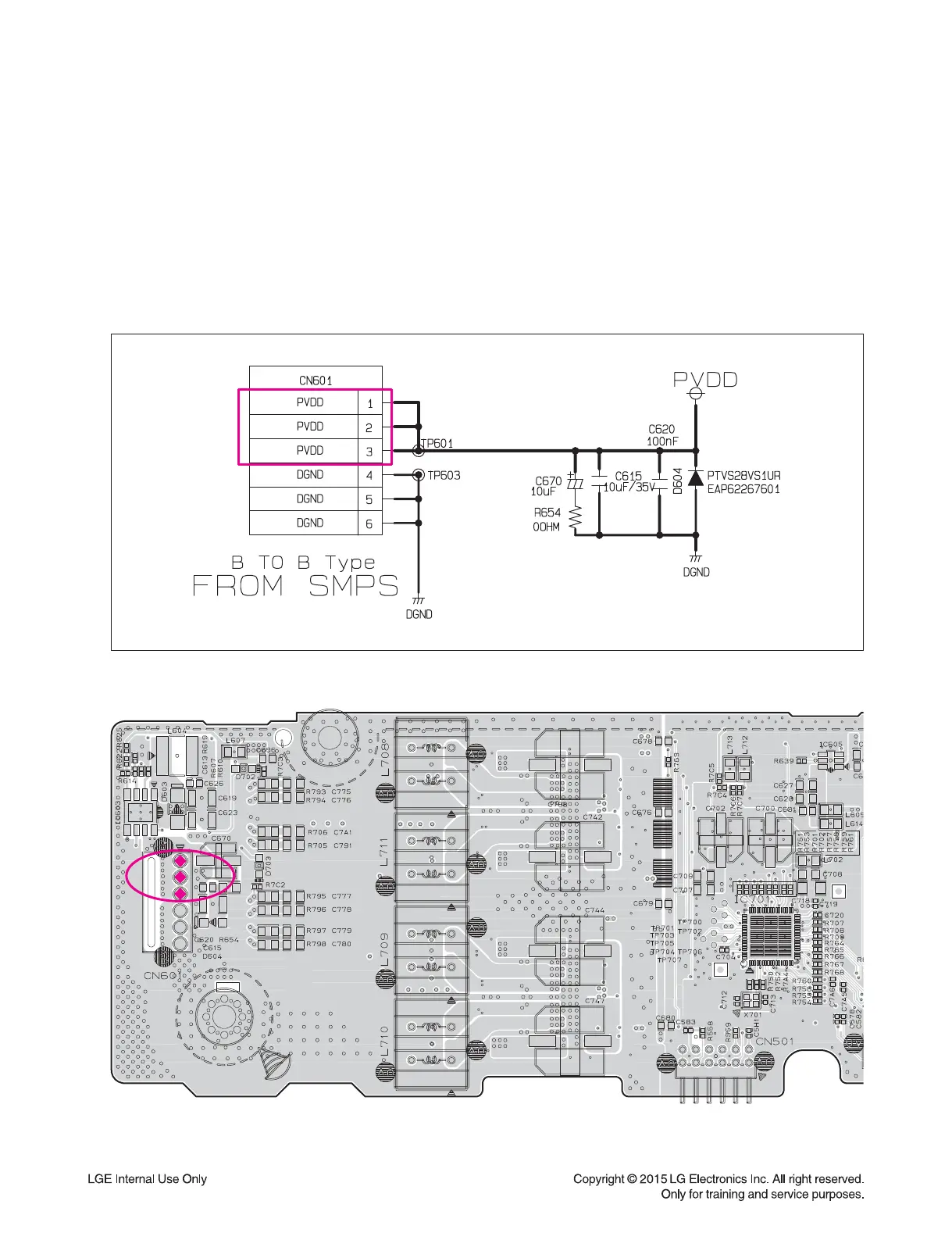

< MAIN board top view >
PVDD
PVDD
18
20
