Video Output
Resolution
Displayed resolution in display window and outputted
resolution may different according to connection
type.
[HDMI OUT] : 1080p, 1080i, 720p and 480p (or
576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)
Optional Equipment
Connection

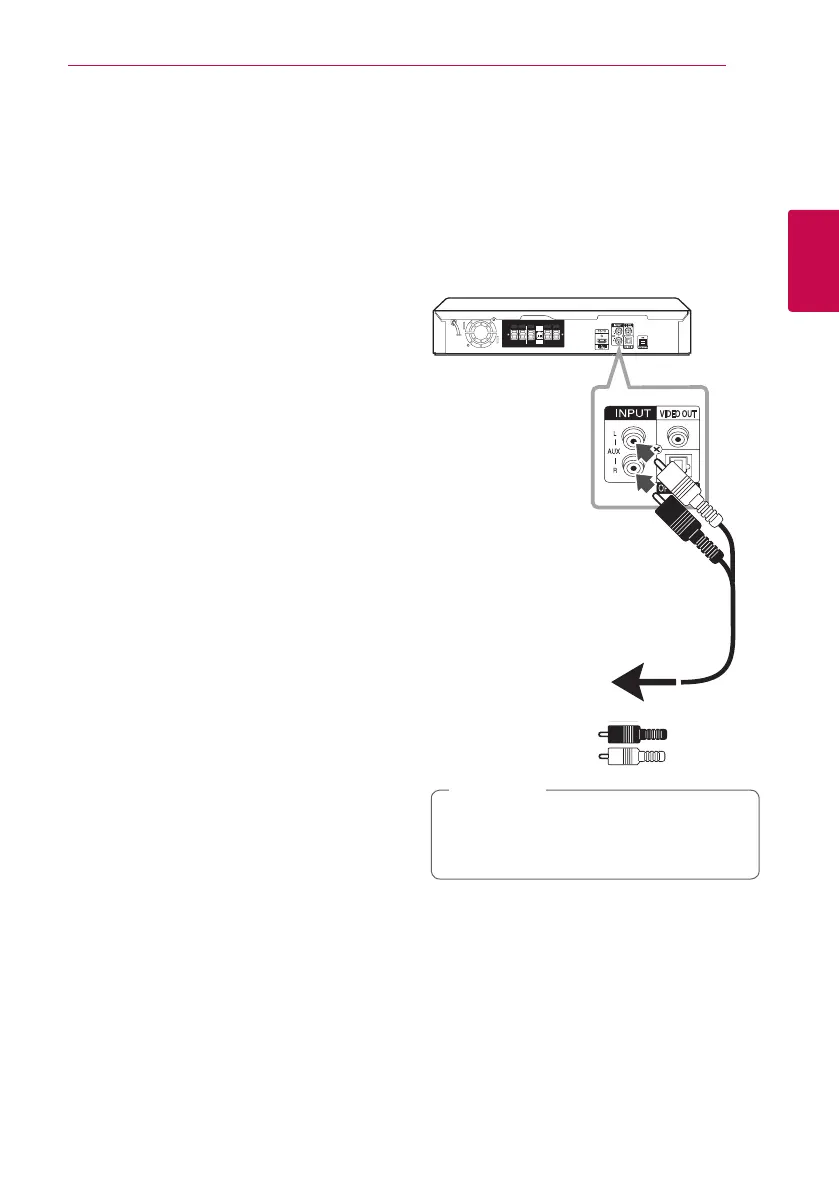

AUX (L/R) INPUT Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
Red
White
To the audio output jacks of
your component
(TV, VCR, etc.)
If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the
unit.
,
Note
To Next Page
