Getting Started8
Getting Started
1
A Remote sensor
B Standby LED (Red)
C Function LED (White)
D The buttons are located on the rear.

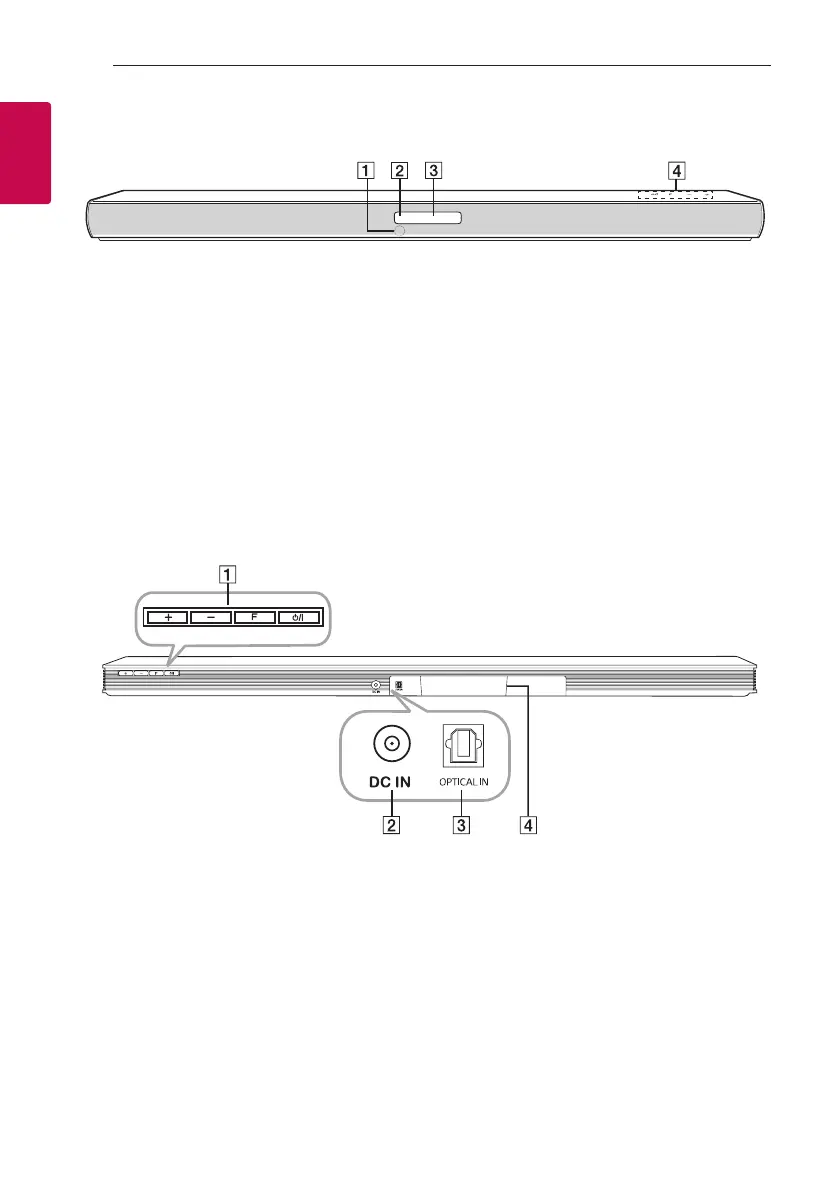

Front panel
A o/p (Volume) : Adjusts volume level
F (Function) : Selects the function and input
source.
1/! (Standby/On)
B DC IN : AC adapter input
C OPTICAL IN : Optical input
D USB (Service only) : S/W download connector
Rear panel
