HOW TO DISASSEMBLE THE MAIN UNIT
7
6
1
2
3
4
5
4

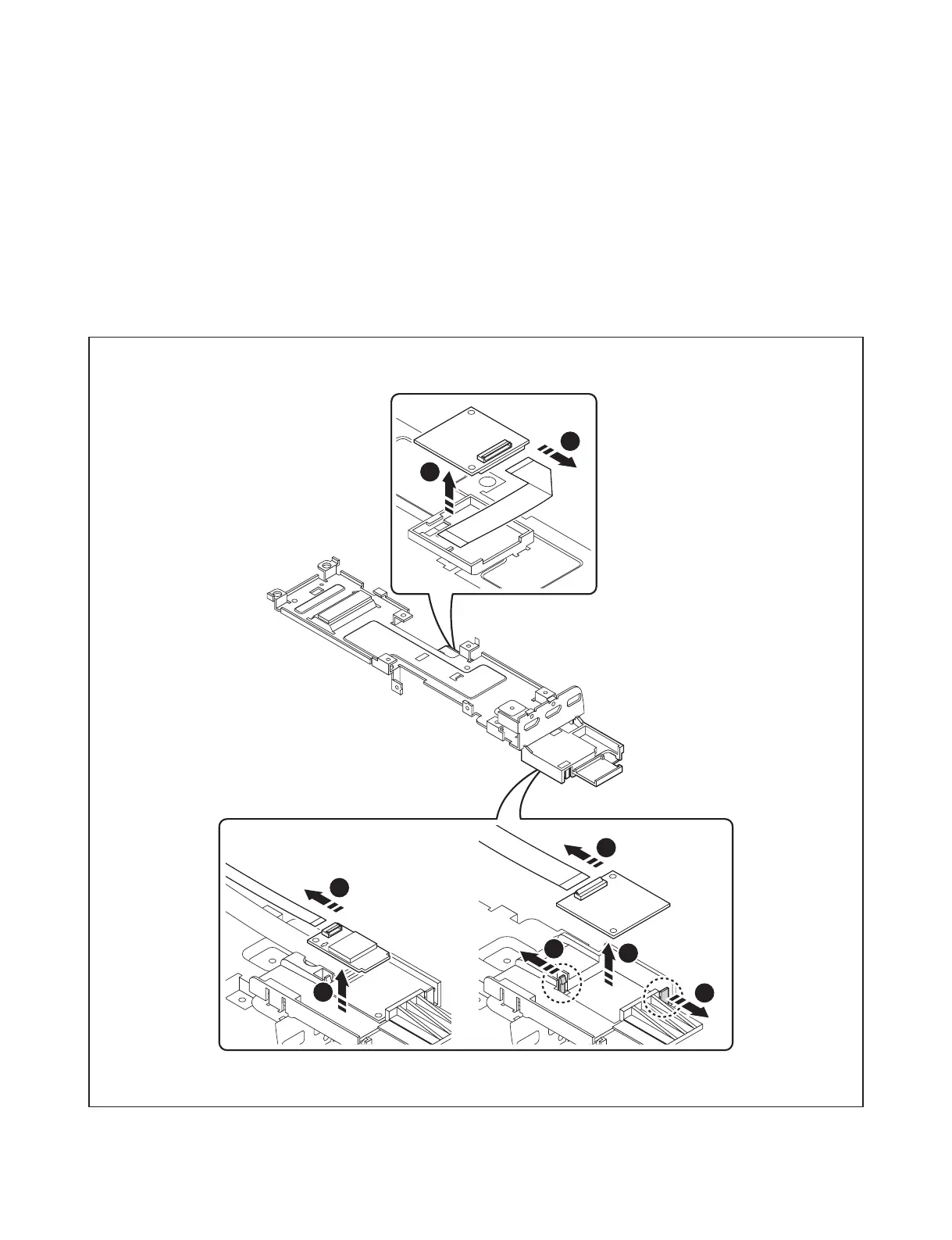

Figure 1-2-3
1-2-3. BT and WIRELESS Module
1) Disconnect the FFC cable from the BT module.
2) Remove the BT module.
3) Disconnect the FFC cable from the WIRELESS module.
4) Disconnect the 2 Hooks.
5) Remove the WIRELESS module.
6) Disconnect the FFC cable from the WIRELESS module.
7) Remove the WIRELESS module.
BT Module WIRELESS Module
WIRELESS Module
