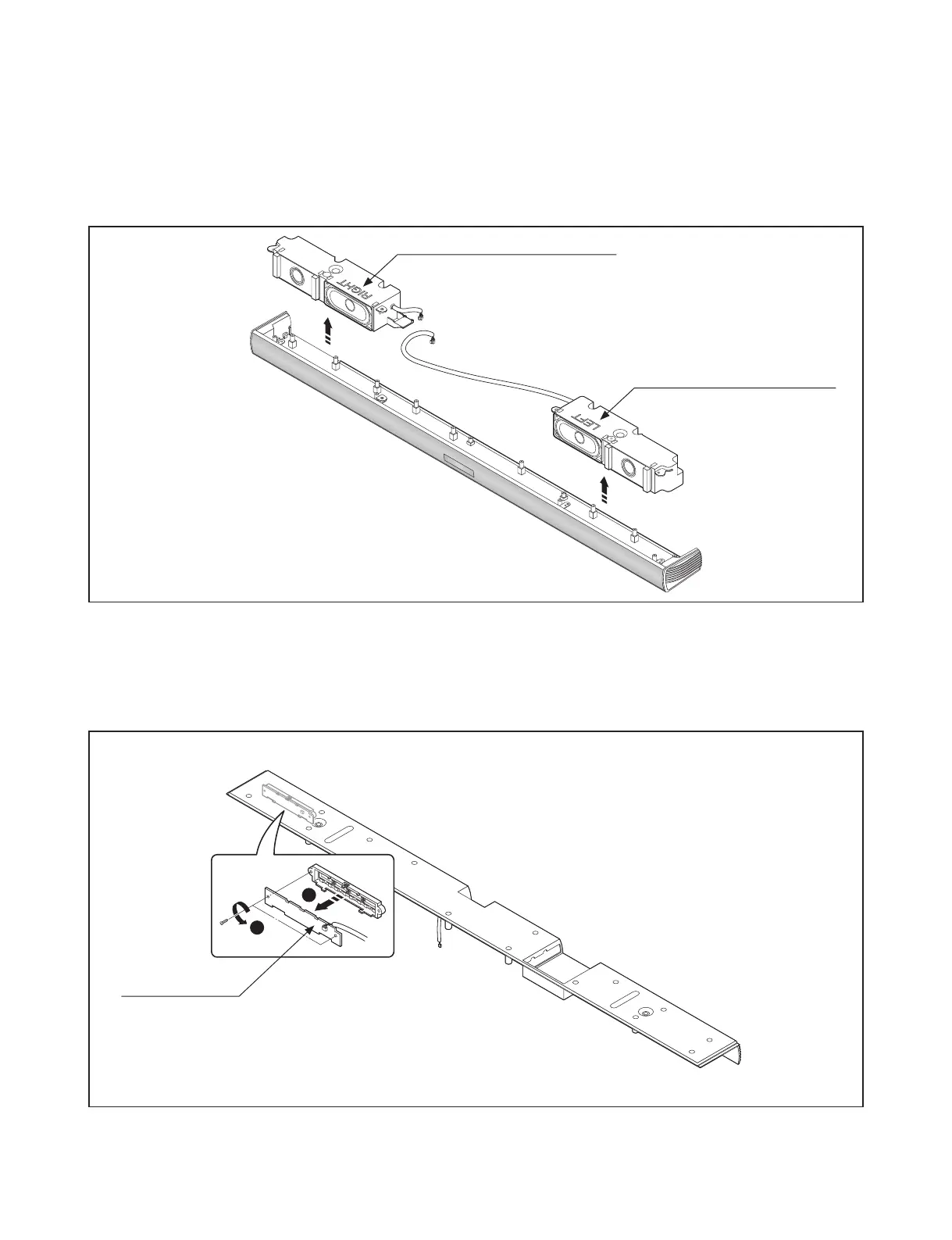

HOW TO DISASSEMBLE THE MAIN UNIT
1-4. KEY PCB Assembly
1) Remove the 2 screws.
2) Remove the Key PCB Assembly.
1-3. SPEAKER CHAMBER L/R Assembly
1) Remove the Speaker Chamber L/R Assembly.
Speaker Chamber Left Assembly
Speaker Chamber Right Assembly
Key PCB Assembly
