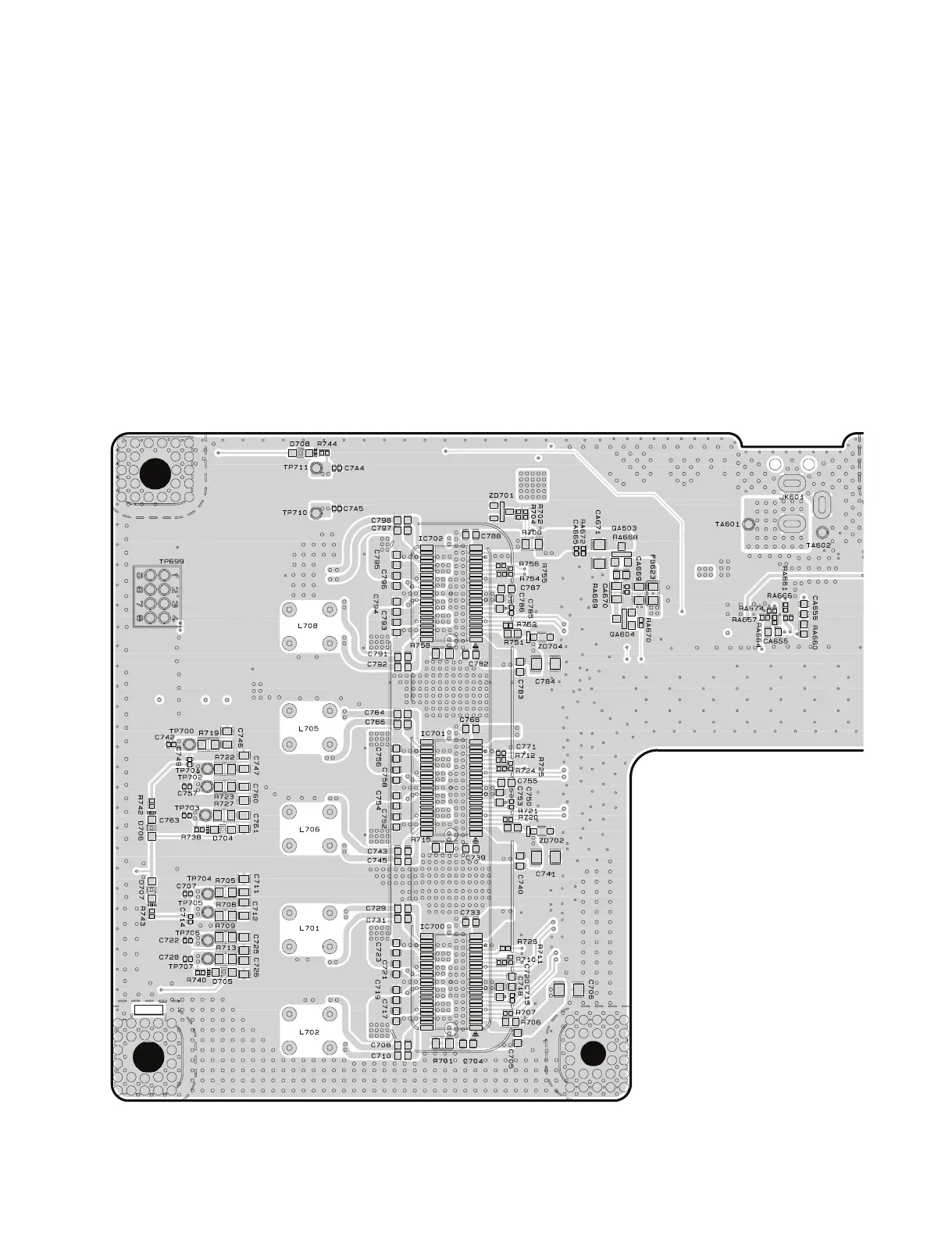

< AMP board bottom view >
IC702
IC702
IC701
IC701
IC700
IC700
ONE POINT REPAIR GUIDE
PROTECTION ERROR
No display or No Sound.
3-3. B(BURNT) PROTECTION
3-3-1. Solution
Replace AMP board.
3-3-2. How to troubleshoot (Countermeasure)
1) Check GVDD, VDD voltage (12 V) of IC700, IC701, IC702 pin1, 2, 22.
- If GVDD, VDD voltage has 8.5 V under, refer to STEP 1-1.
2) If 12 V is OK, replace AMP board.
3-3-3. Service hint (Any picture / Remark)
