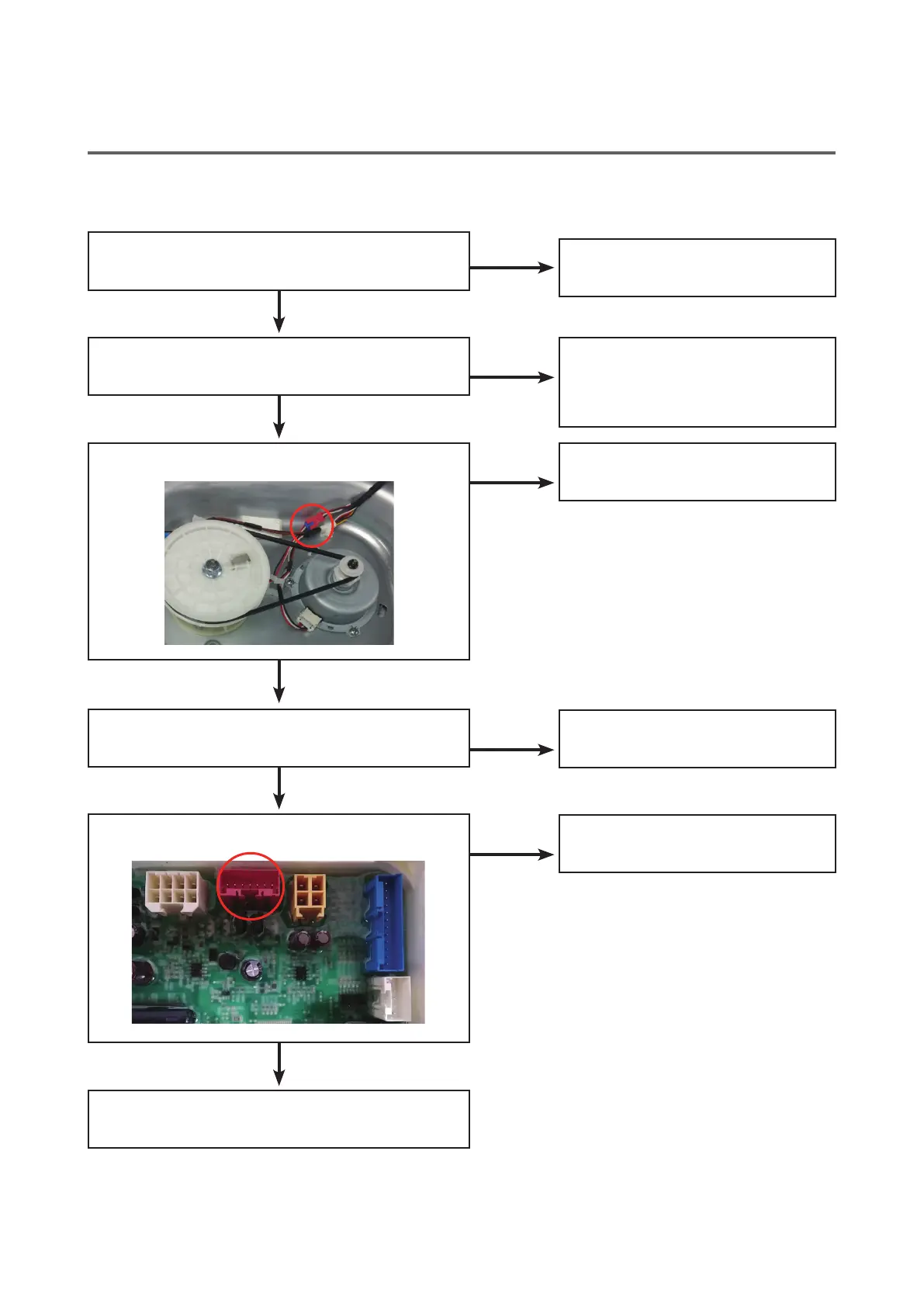

12-19. Moving Hanger not in Proper Position
Is the magnet properly settled on the pulley idle?
Is the hall sensor properly settled?
Is the hall sensor connector (RD3) connected?
Is the key groove between the shaft bump and the pulley idle
properly assembled?
Is the main PCB connector (RD7) properly connected?
Replace the main PCB.
Attach the magnet and check again.
※
Use silicon when mounting the magnet.
Attach the hall sensor.
Connect the connector.
Replace the pulley idle.
Connect the connector.
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
