6-1. Heat Pump Cycle
(Principles of Heat Pump/Refrigerant Gas Circulation)
6-1-1. Principles of Heat Pump
Heat pump maintains the temperature higher than the ambient temperature. In order to achieve
this, it requires insulated space, refrigerant R134a for absorbing heat, and a circulation circuit for
controlling phase of the refrigerant (compressor, condenser, evaporator, etc.).

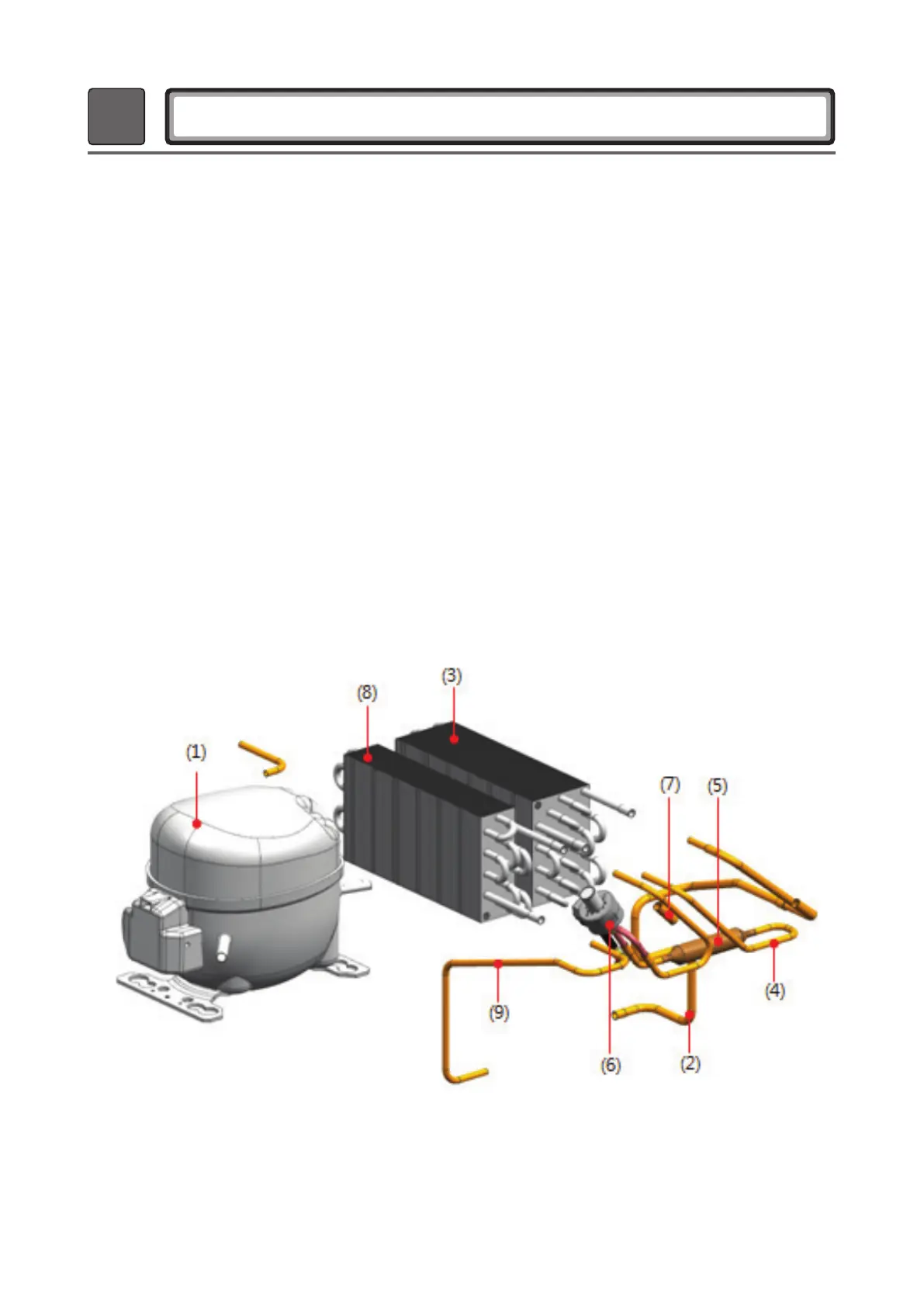

6-1-2. Refrigerant Gas Circulation
(1).  Compressor
(2). Pipe,CondIn
(3). Condenser
(4). Pipe,CondOut
(5). Dryer
(6). LEV
(7). Pipe,EvaIn
(8). Evaporator
(9). Pipe,EvaOut
