28
DIASSEMBL
Y INSTRUCTIONS
12

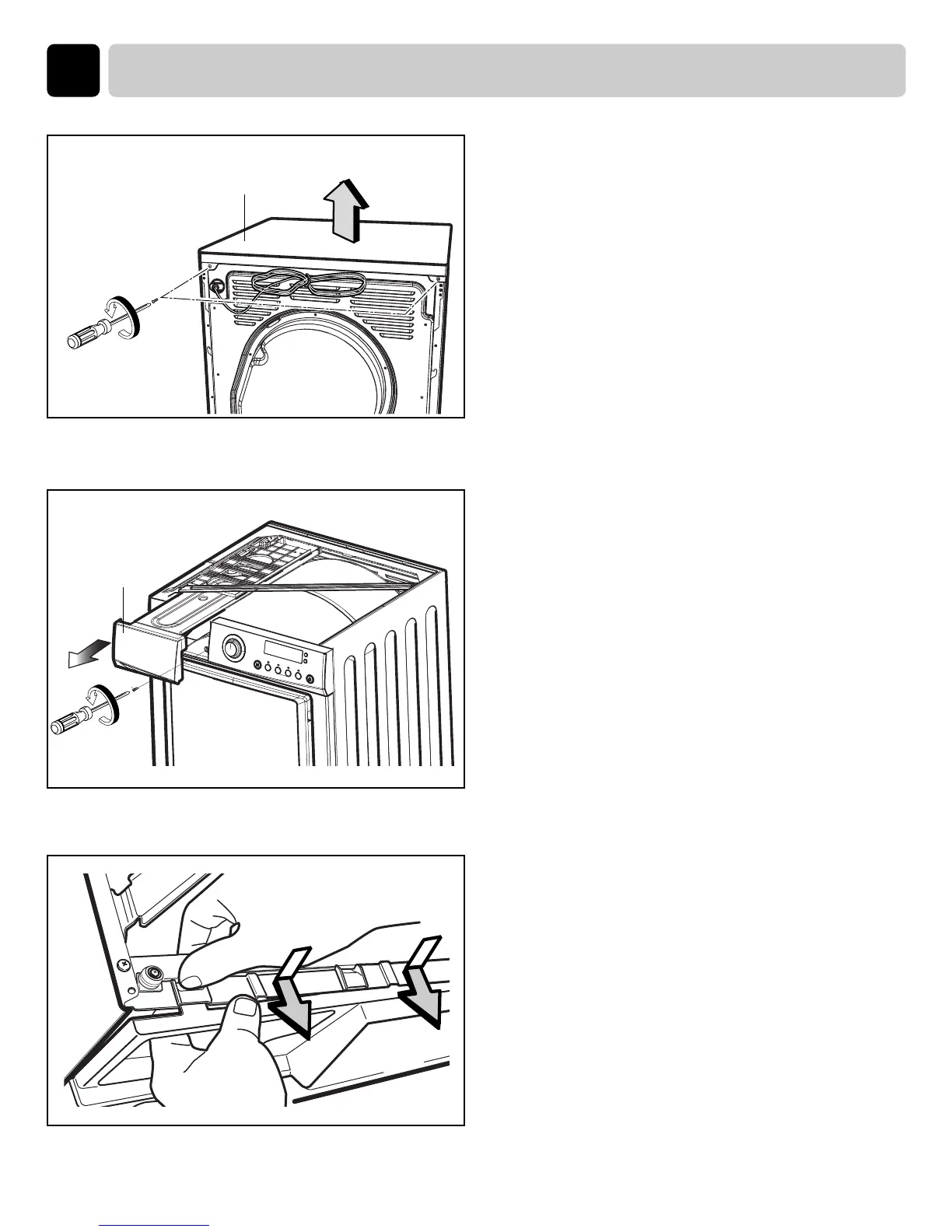

1. Disassemble top plate by unscrewing 2
screws on the rear of the dryer
.
2. After pulling drawer assembly out,
unscrew 1 screw
.
3.
After releasing 4 hooks of control panel
assembly
, separate connectors from
PWB assembly for disassembling
control panel assembly
.
DRAWER
TOP PLATE
28
30
