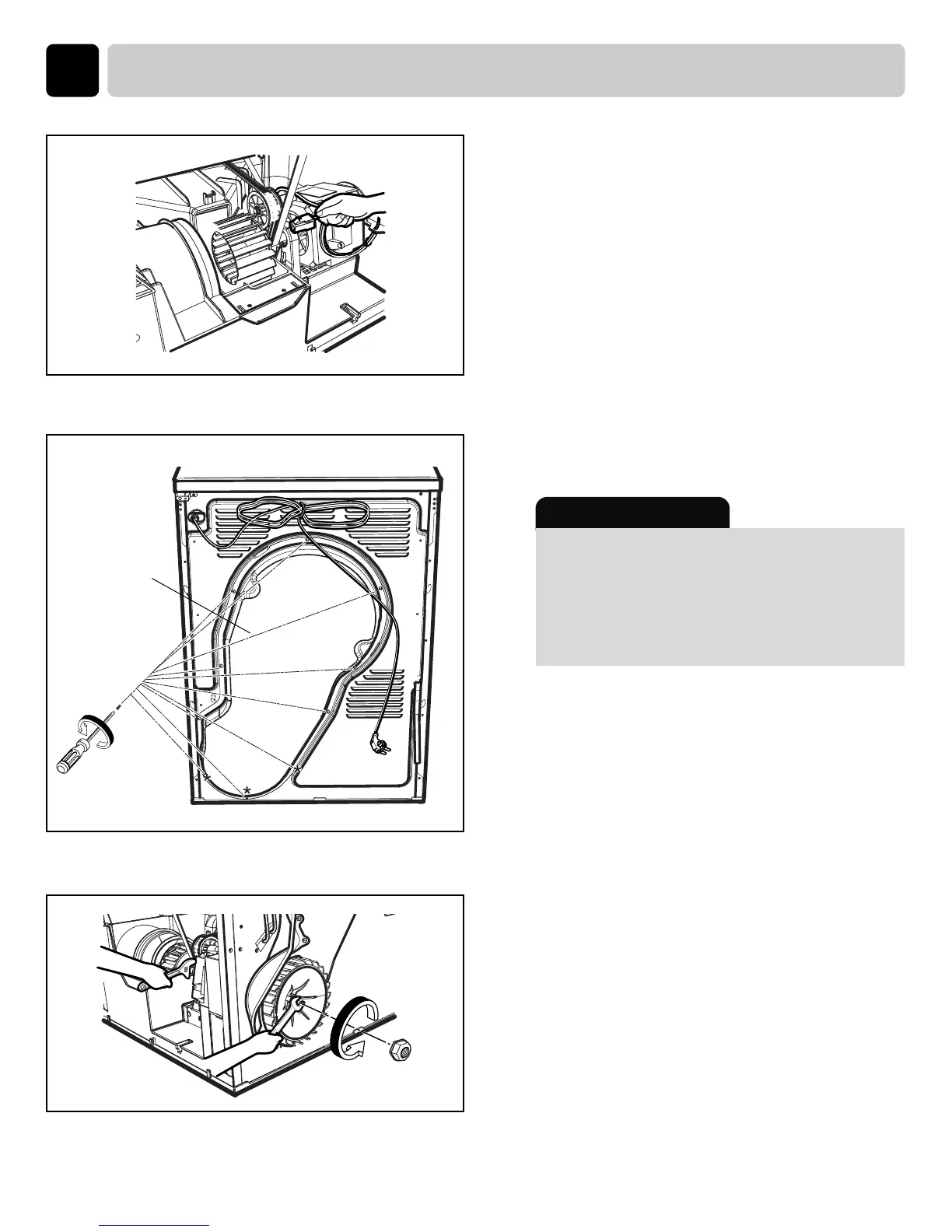

DIASSEMBLY INSTRUCTIONS
12
1. Disassemble Harness of Motor
2. Disassemble Duct by unscrewing.
3. Disassemble Nut by grasping the edge
of left motor shaft at the same time.
DUCT
Note !
"*" marked 3 screws on the lower position
of Duct are only used for molding parts.
Be careful of not using them for other
holes. Otherwise, the holes will be
exposed to water leak.
