26
DIAGOSTIC TEST
10

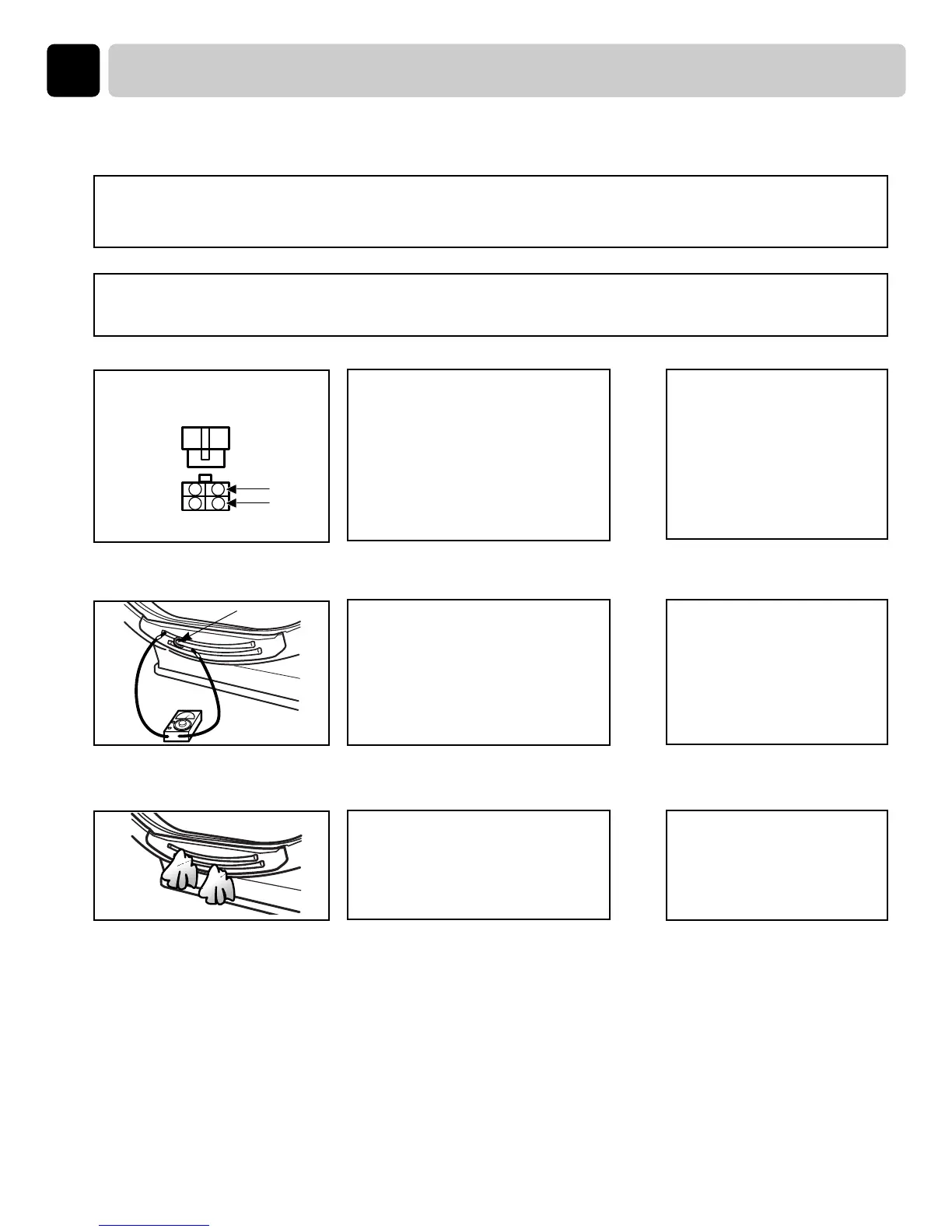

Test 6 Moisture sensor check
Measurement condition : Power cord is unplugged.
Trouble Symptom : Drying Failure
• Check Harness
• Check if Sensor tips
have foreign objects
- Refer to the left picture
• Check Harness
- Open, Connector is
disconnected
With metal tape attached to
Sensor tips, RD4
①
- RD4 ③
resistance is less than 10Ω?
After damp clothes touch
Sensor tips,
the range are within the
below table when QA-test?
⇨
NO
⇨⇨
YES
⇨⇨
YES
⇨
NO
⇨
NO
• Check and replace
Controller
To Next Page
