DIASSEMBLY INSTRUCTIONS
11
①. DOOR
CASE

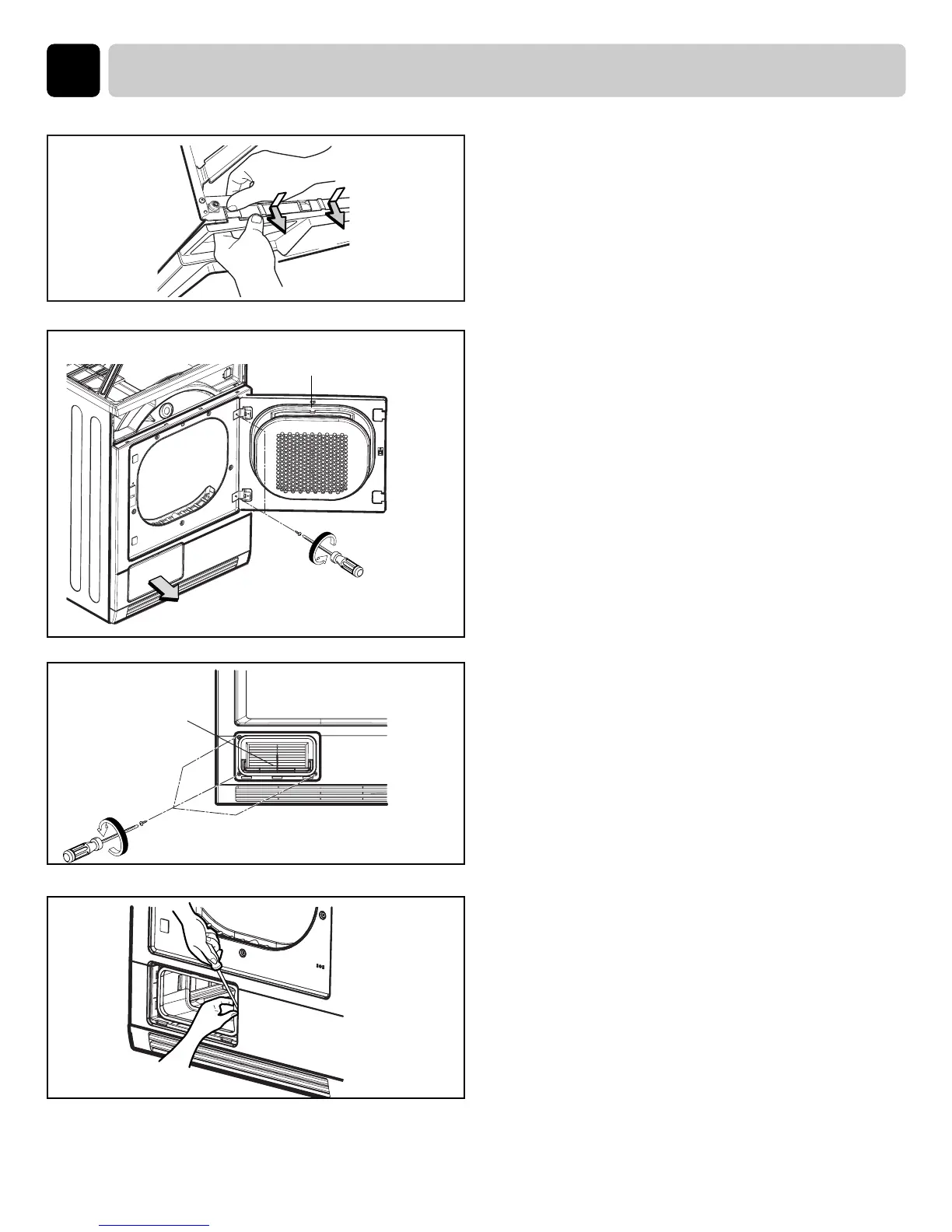

2-1. Disassemble door assembly by
unscrewing 2 screws.
2-2. Disassemble lower cover by releasing
hook.
2-3. After releasing 2 levers, disassemble
safety cover.
3. Disassemble 3 screws.
4.Disassemble the case with a Philips
driver by releasing hook.
1. After releasing 4 hooks of control
panel assembly, separate connectors
from PWB assembly for disassembling
control panel assembly.
②. COVER, LOWER
③. COVER, SAFETY
To Next Page
