ENGLISH
29

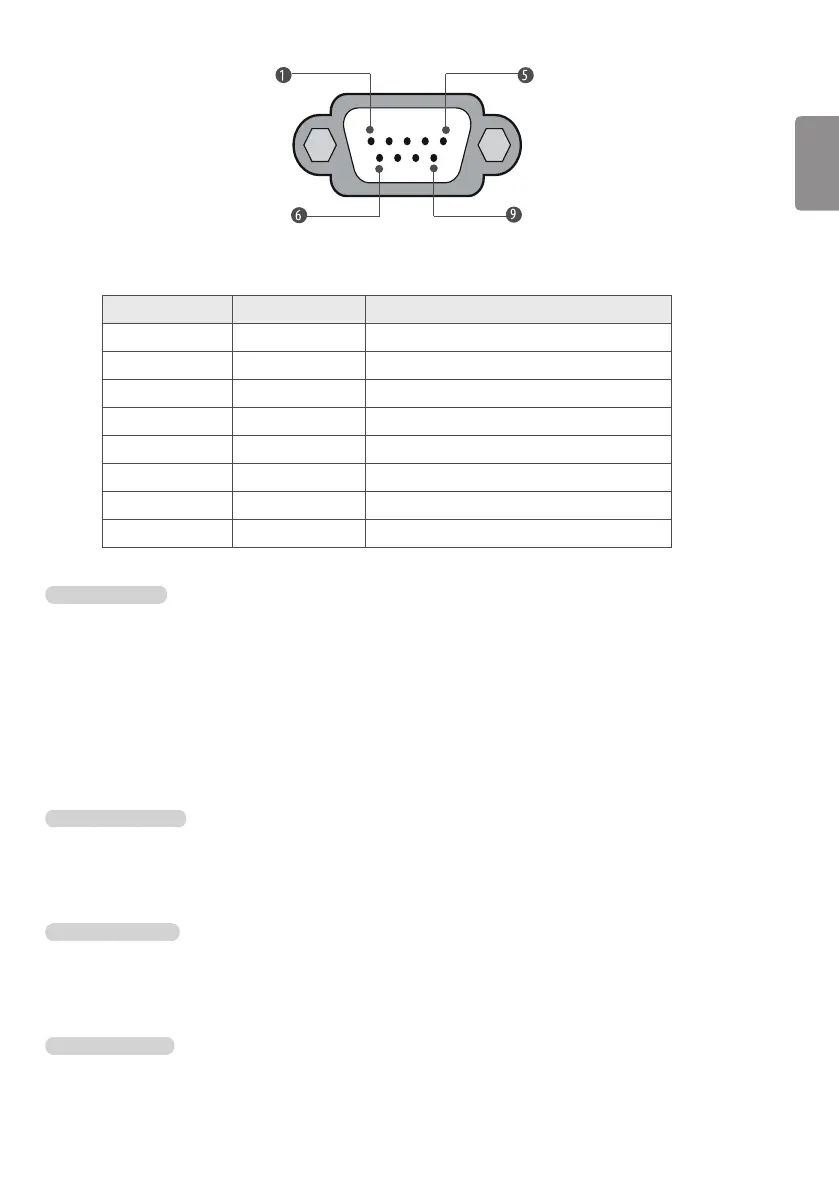

» Type of Connector: D-Sub 9-Pin Male
Male connector on box, viewed towards connector.
No. Signal Signal requirements
1 VCC
2 RX RS232 Standard RS232 specication
3 TX RS232 Standard RS232 specication
4 IR from TV
5 GND Power ground
6, 8 Not connected
7 2 A +5 V DC 10 %, max 100 mV ripple
9 1.5 A +12 V DC 10 %, max 100 mV ripple
One Channel Map
(Depending on model)
• If set to ‘Enable’, the TV will operate as below.
-
A. When the TV is auto-scanning, it searches both air and cable channels.
-
B. User can assign a channel number him/herself by manual scan.
-
C. In 'Channel Edit’ window, all channels are shown in a single list regardless of input source.
-
D. Automatically scanned channels may not have the user-desired channel numbers.
• If user change the ‘Enable/Disable’ value, an pop-up window will be displayed to warn that all channel will be deleted. The Default value is
‘Enable’.
DTV Channel Update
• It is a mode to set whether to update DTV Channel automatically or not.
• When set to ‘Auto’, the function to update TV’s Channel map according to DTV Channel’s stream information.
• When set to ‘Manual’, the function to keep TV’s Channel map even though DTV Channel’s information is changed.
On Timer Operation
• It is a mode to select ‘Timer Power On’ working one time or repeatedly.
• 'Once': ‘Timer Power On’ in the user menu operates only one time when the Timer Power On menu is set to On.
• ‘Repeat’ : ‘Timer Power On’ operates repeatedly when the Timer Power On menu is set to On.
USB Auto Playback
(Depending on model)
• When ‘USB Auto Playback’ is set to ‘Movie’, TV nds and plays the USB’s movie les located at the root(top) directory Movies if USB is plugged in.
• When ‘USB Auto Playback’ is set to ‘Photo’, TV nds and plays the USB’s photo les located at the root(top) directory Photos if USB is plugged in.
• If it reaches the last le, it starts the rst le again
