LG V-3310D - Internal Component Replacement

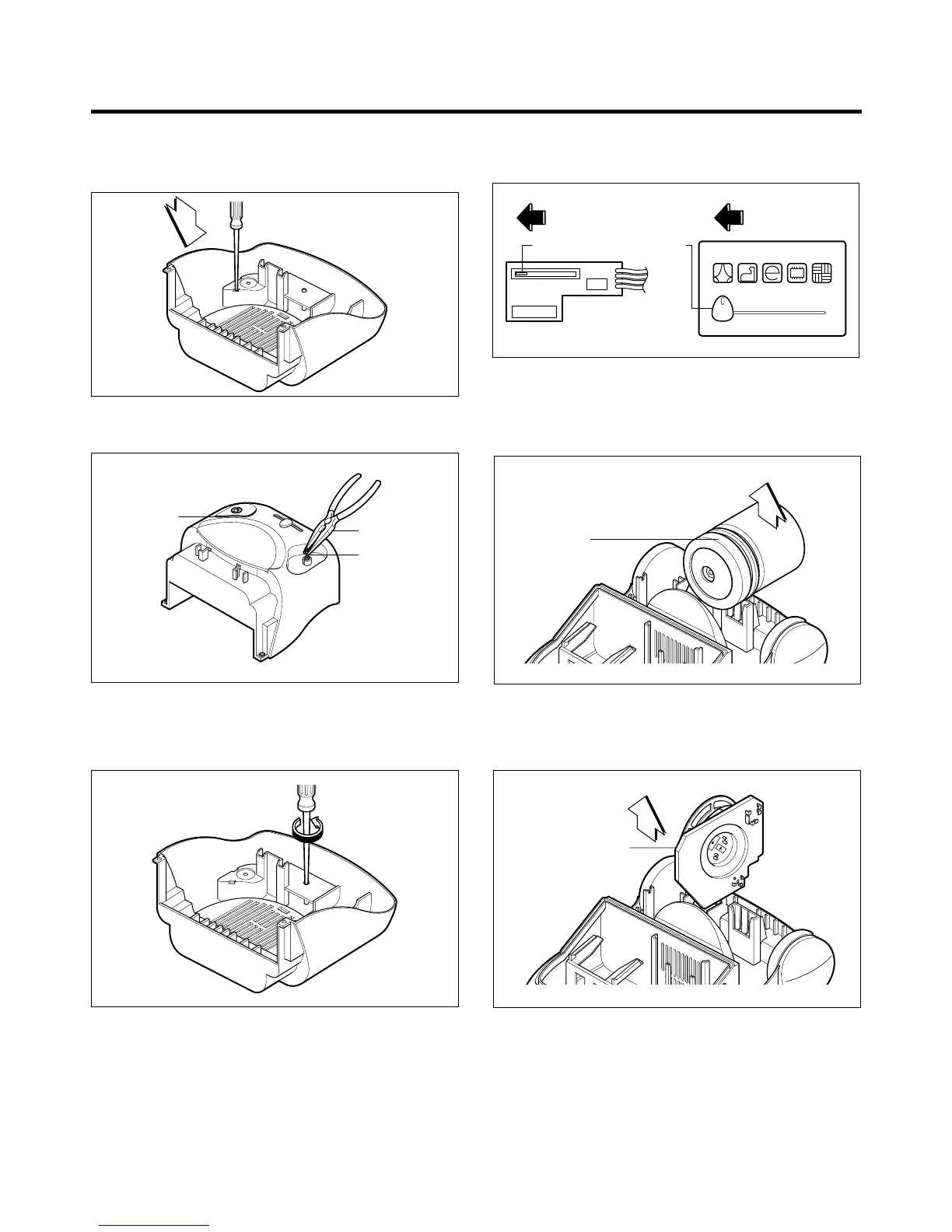

4. Push Switch Assembly Replacement
1) Push the s/w button hook in the direction of the arrow.
2) Push the push switch down grasping the wings of push
switch by long nose.
5. P.W.B ASM Replacement.
1) Remove the two screws fastening the P.W.B Ass’y on
the body cover.
2) When reassembling, assemble after sliding the lever of
P.W.B Ass’y and switch knob to the left side.
6. Motor Assembly Replacement
• Lift the motor assembly in direction of the arrow after
stripping off the lead wires.
7. Cord Reel Assembly Replacement
• Lift the cord reel assembly from the body base in
direction of the arrow.
- 7 -
Cord Reel
Button
Push Switch
Long Nose
Motor Asm
Cord Reel Asm
Slide KnobLever
