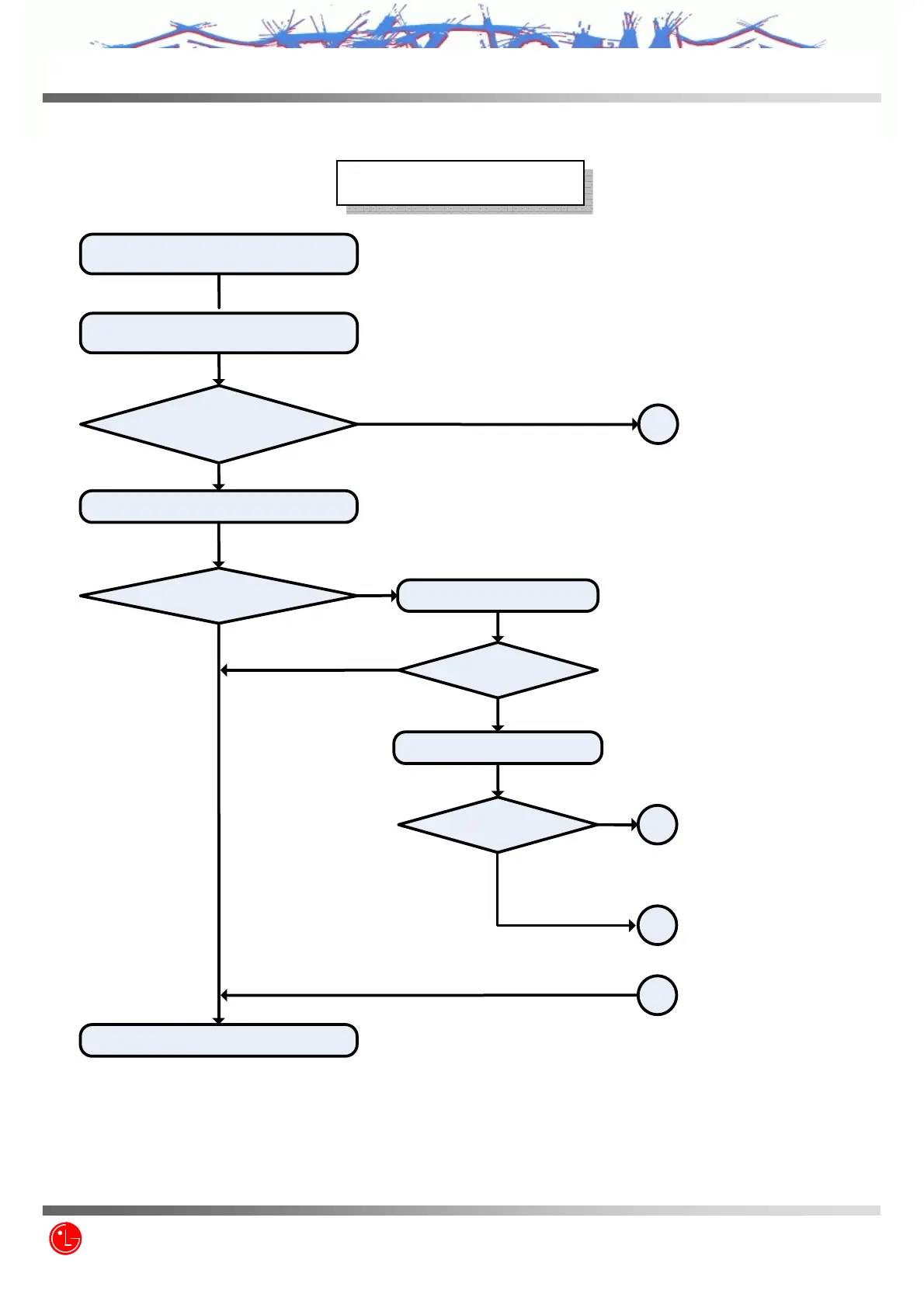

Checking Flow
Checking Flow
START
Set the audio part of the test equipment
to echo mode
YES
YES
NO
NO
Can you hear your
voice from headset ?
NO
YES
YES
Insert 4pole headset to 4pole ear-jack
Does the audio profile of
the phone change to the headset
Mode ?
1
: Headset detect
problem
Change headset
and try again
Can you hear the
Sound from headset ?
Set the audio part of the test
equipment to continuous wave mode
Can you hear your
voice from headset ?
Headset will work properly
4
3
2
: Headset receiving
path problem
: Headset sending
path problem
YES
YES
NO
NO
4.3.5.3 Headset Trouble
