Checking Flow
Checking Flow
Check pinK23 at U200 (C162)
Check if there is any major difference referring
To Figure 4.2.1.3. Is it similar?
Start
QSC 6075 is OK. See next page
YES
Replace U200
YES

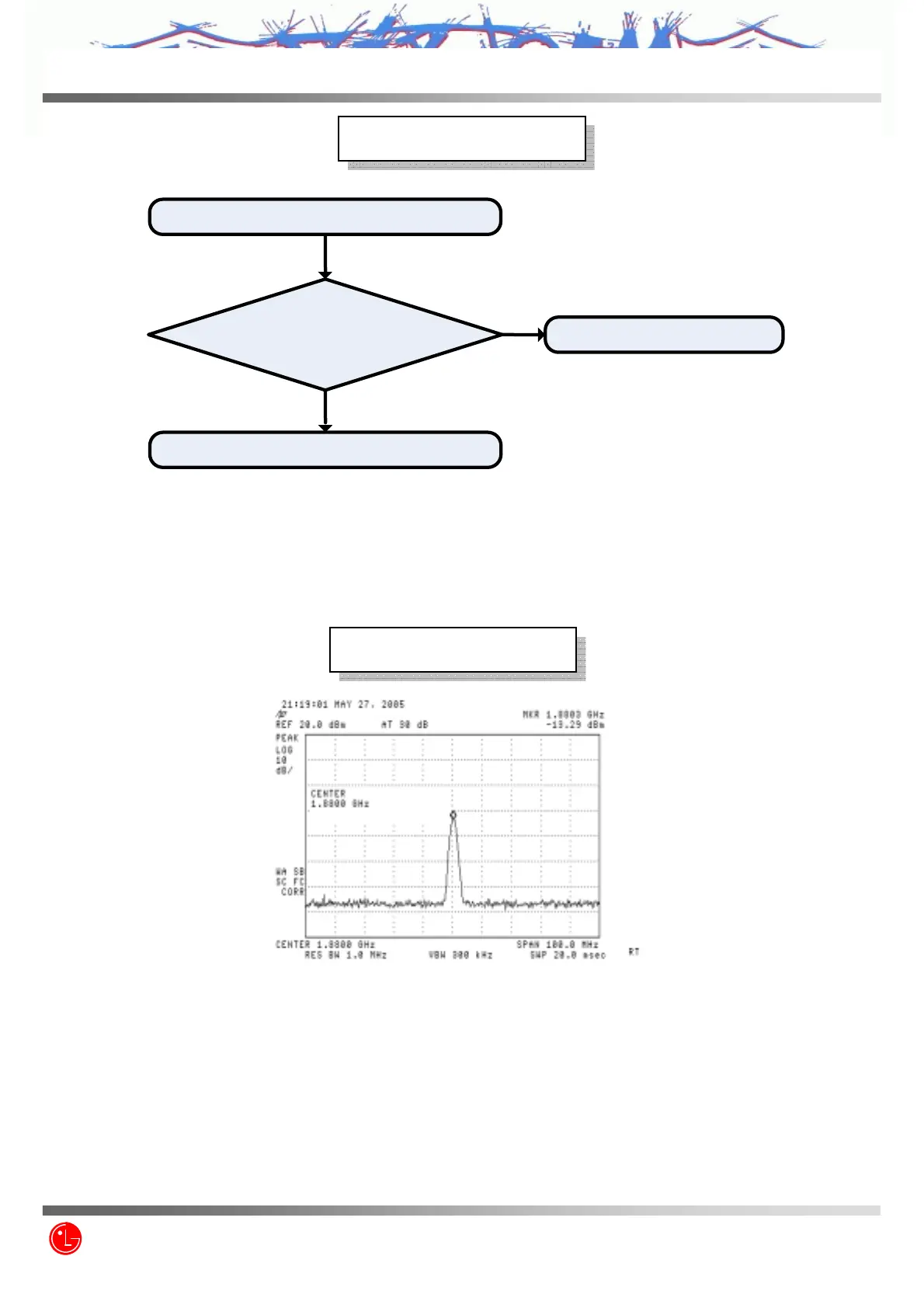

Graph 4.2.1.3
Waveform
Waveform
