LG VX8560 - Page 92

LG Electronics Inc.
VX8560

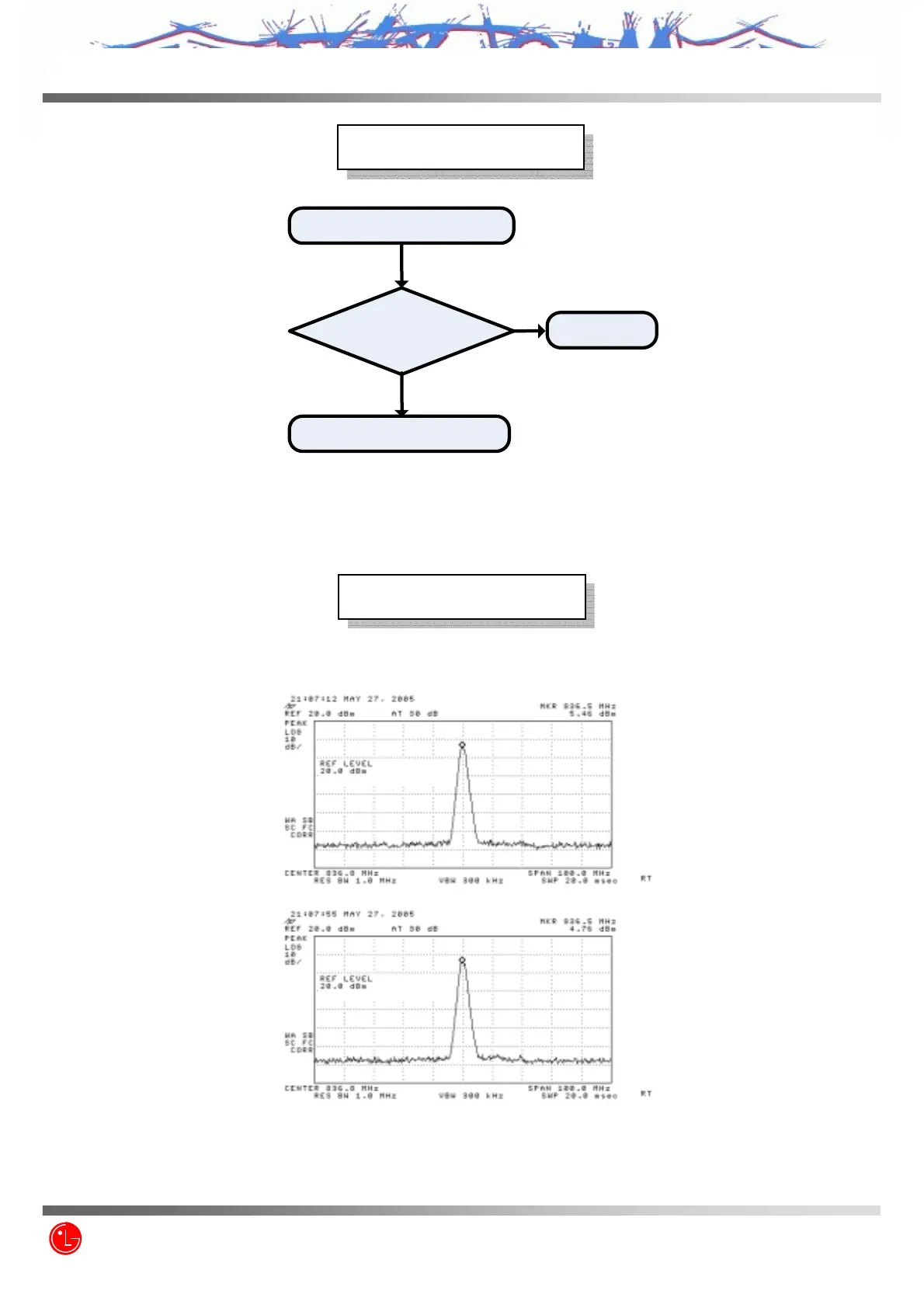

Checking Flow
Checking Flow
Waveform
Waveform
DCN Port
ANT Port
Check pin3,
5
at DP
100.
Referring to
Figure 4.2.1.6.
Is it similar?
Start
Replace DP 100
YES
NO
Quintplexer is OK
Figure 4.2.1.6
`YVYZ\
92/235
