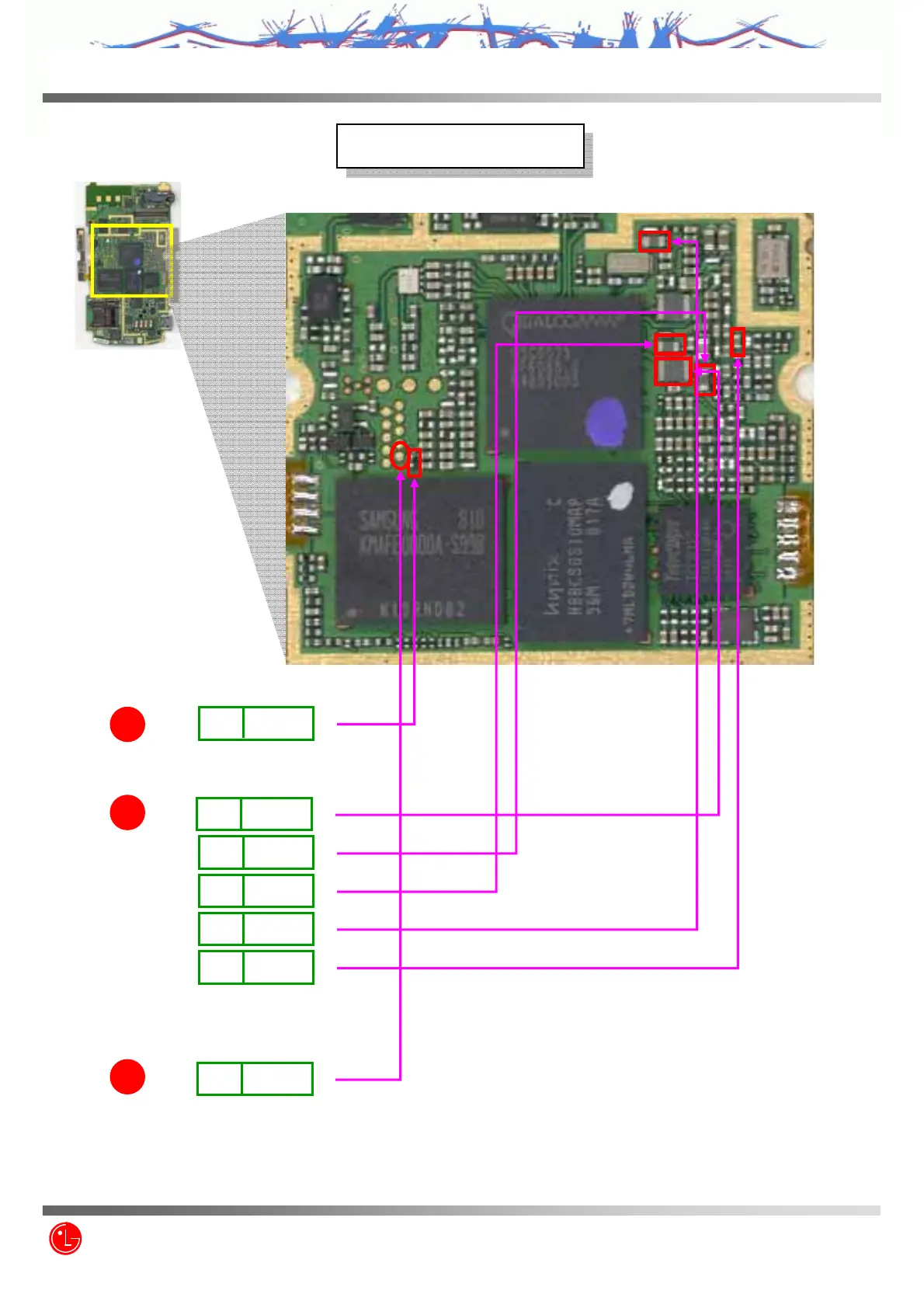

Test point
Test point
1
2
3
TP1
R707
PWR_ON_SW/
TP2
L200
+1.3_MSMC
TP3
C263
+1.8_MSME1
TP4
C259
+2.6_MSMP
TP5
C267
+2.1_MSMA
TP6
C239
+2.8_TCXO
TP7
CON200
PS_HOLD
