Connecting the Display

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard compliance

for the product.

Using the Computer

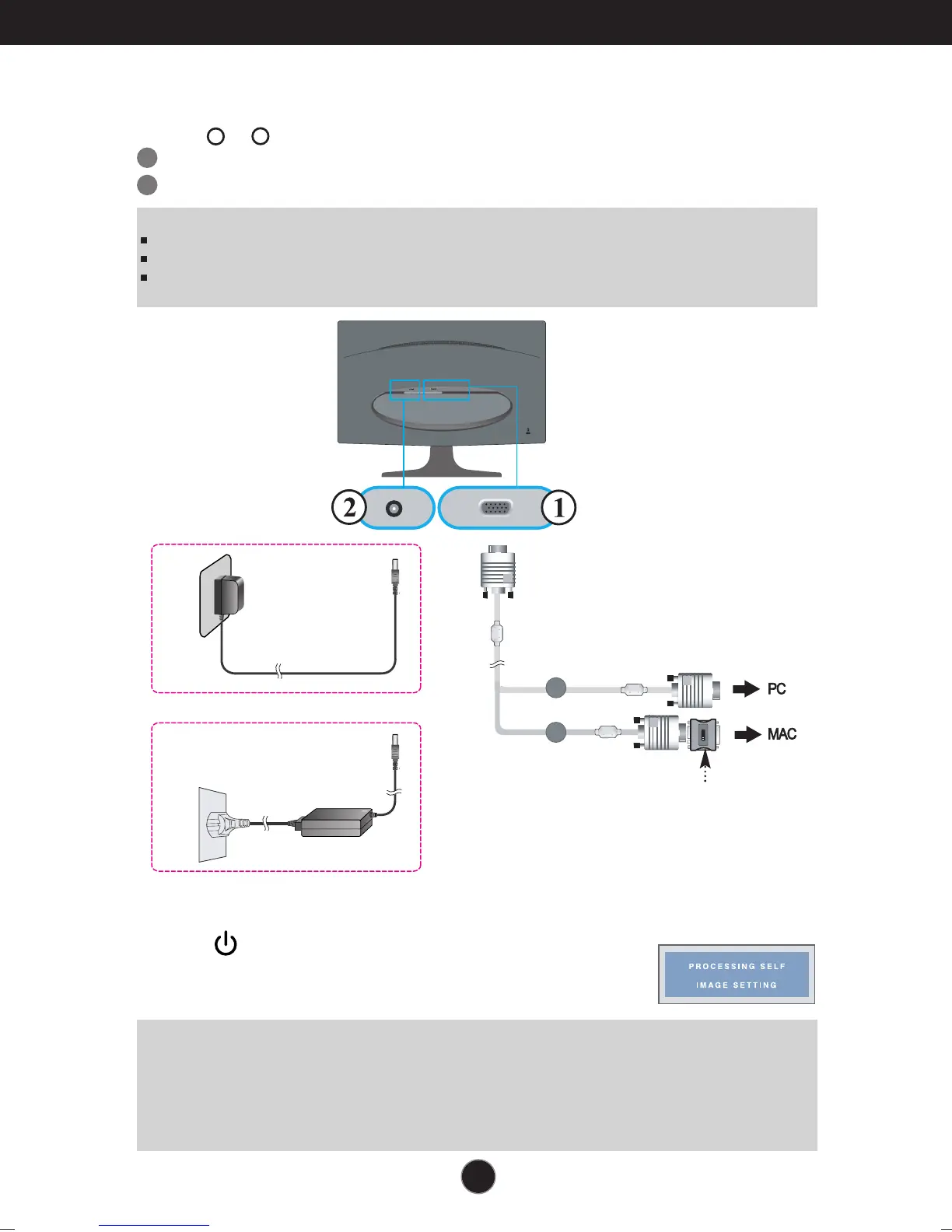

1. Make sure to turn off the computer and product. Connect the cable as below sketch map

form to .

Connect D-sub Cable (PC)

Connect D-sub Cable (Mac)

2. Press button on the front switch panel to turn the

power on. When monitor power is turned on, the

'Self Image Setting Function' is executed automatically.

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user

connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual

input signals.

‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted

screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve

resolution.

Power Cord

Varies according to model.

Mac adapter

For Apple Macintosh use, a separate plug adapter is

needed to change the 15 pin high density (3 row) D-

sub VGA connector on the supplied cable to a 15 pin 2

row connector.

Signal Cable

Wall-outlet type
