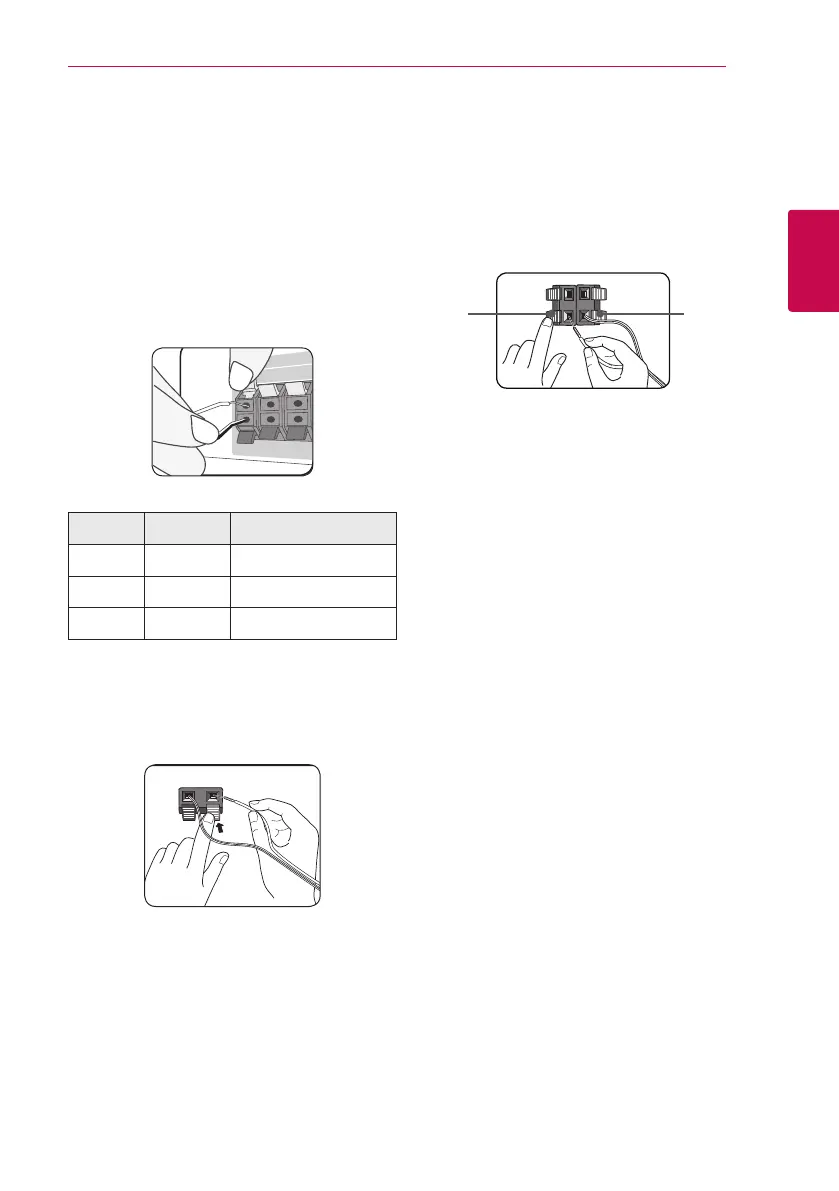

LG W96 - Connecting the System; Attaching the Speakers to the Subwoofer; Attaching the Rear Speakers to the Wireless Receiver

Connecting 23
Connecting
2
Connecting the
System
Attaching the speakers to the
subwoofer
1. Connect speaker wires to the subwoofer.
Each speaker wire is color-coded. Use matching
color wires for corresponding speakers.
Color Speaker Position
Green Center Center
Red Front Front right
White Front Front left
2. Connect the speaker wire to the terminal on the
speaker.
Make sure the wire marked black goes in to the
terminal marked “–” (minus) and the other wire
goes in to the terminal marked “+” (plus).
Speaker
Pole
Base
Screw
Cable
Attaching the rear speakers to
the wireless receiver
Connect the rear speakers to the wireless receiver
with the speaker cables.
Make sure the wire marked black goes in to the
terminal marked “–” (minus) and the other wire
goes in to the terminal marked “+” (plus).
(+)
(-)
