9. DISASSEMBLY INSTRUCTIONS
Be sure to unplug the machine from the outlet before disassembling and repairing the parts.

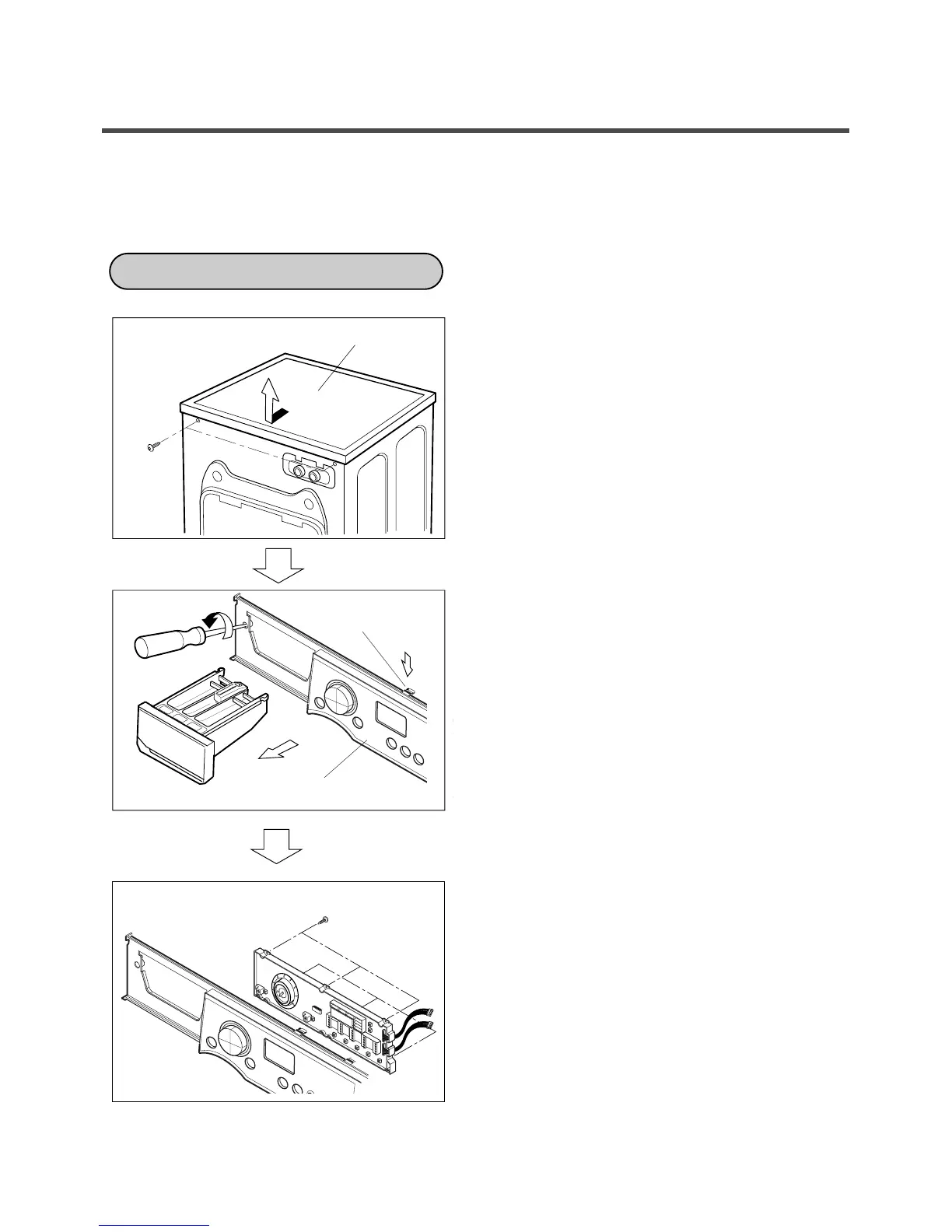

① Unscrew 2 screws on the back of the top plate.
② Pull the top plate backward and upward as
shown.
③ Disconnect the Display PWB Assembly
connector from Flat cable.
④ Pull out the drawer and unscrew 2 screws.
⑤ Push 2 upper hooks and pull the Control Panel
Assembly forward.
⑥ Unscrew the 6 screws from the Control Panel
Assembly.
⑦ Disassemble the Display PWB Assembly.
