Disassembly of Back cover, Drain
Pump.

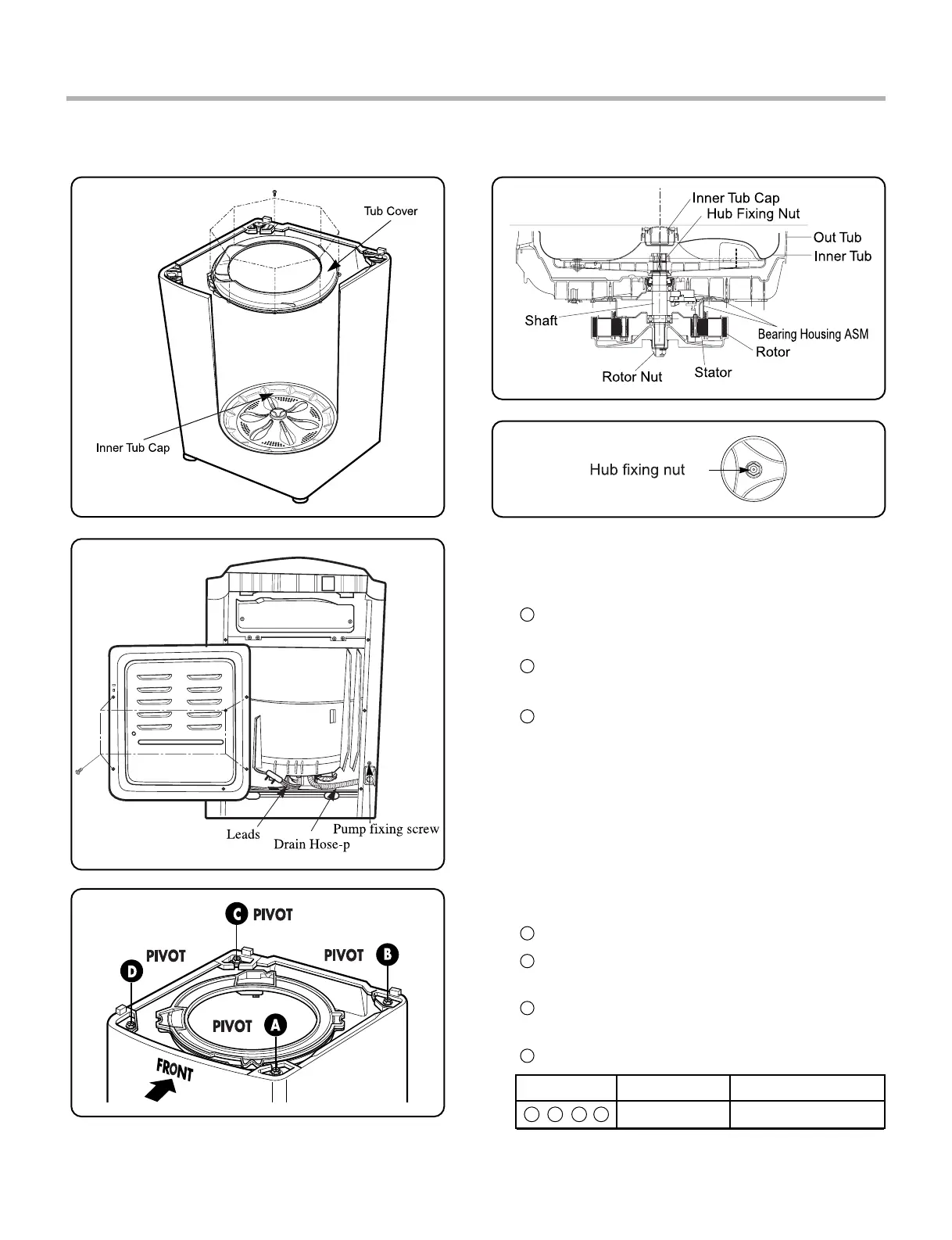

Remove back cover fixing screws then
disassemble the back cover.
1
Disconnect the leads and the drain hose-p from
the drain pump.
2
Remove the pump fixing screws and the
connector hose disassemble the drain pump.
3
4)
Replacement of Damper asm
Separate top cover from washing machine.
1
For assembly, keep the following.(Location & color)
4
As in the fig, lift snubber bar and take it out of
out case with out tub.
2
Damper assembly shall not be disassembled.
Replace damper as assembly.
3
Location P/No. PIVOT(Color)
,,,
K100 WHITE
A
B DC
To Next Page
