7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.

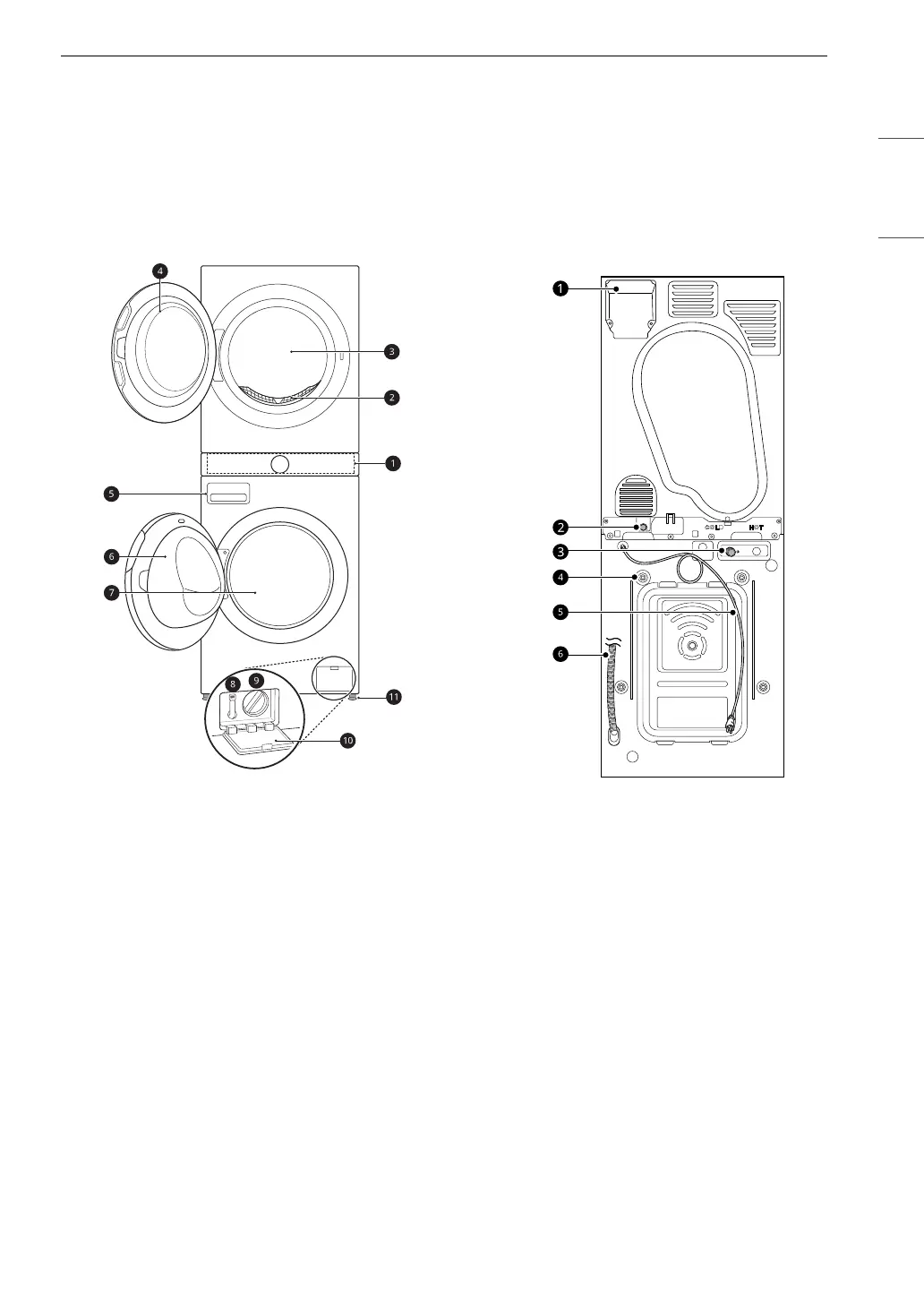

Front View
a Control Panel
b 3-Piece Lint Filter
c Dryer Drum
d Dryer Door
e Detergent Dispenser Drawer
f Washer Door
g Washer Drum
h Drain Hose
i Drain Pump Filter
j Drain Pump Filter Cover
k Leveling Feet
Rear View
a Terminal Block Access Panel
b Dryer Drain Outlet (behind stacking bracket)
c Hot and Cold Water Inlets
d Shipping Bolts
e Power Cord (for Washer)
f Drain Hose (for Washer)
