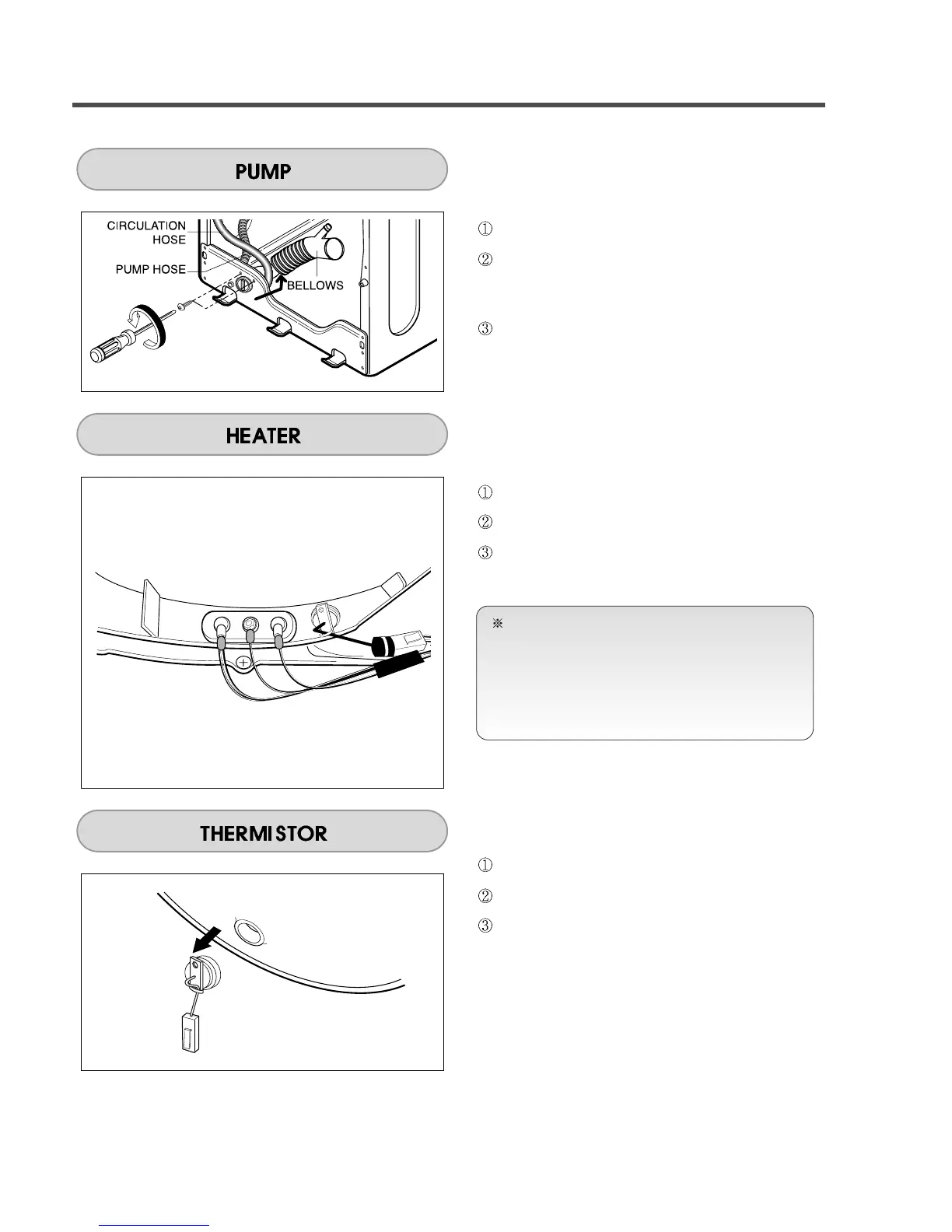

Disassemble the cabinet cover.
Separate the pump hose, the bellows
and the circulation hose assembly from the
pump assembly.
Disassemble the pump assembly in arrow
direction.
Disassemble the cabinet cover.
Separate 2 connectors from the heater.
Loosen the nut and pull out the heater.
Disassemble the cabinet cover.
Unplug the white connector from the thermistor.
Pull it out by holding the bracket of the
thermistor.
CAUTION
• When assembling the heater, insert the
heater into the heater clip on the bottom of
the tub.
• Tighten the fastening nut so the heater is
secure.
To Next Page
