LG WM3670H A Series - DETERGENT DOES NOT FLOW IN

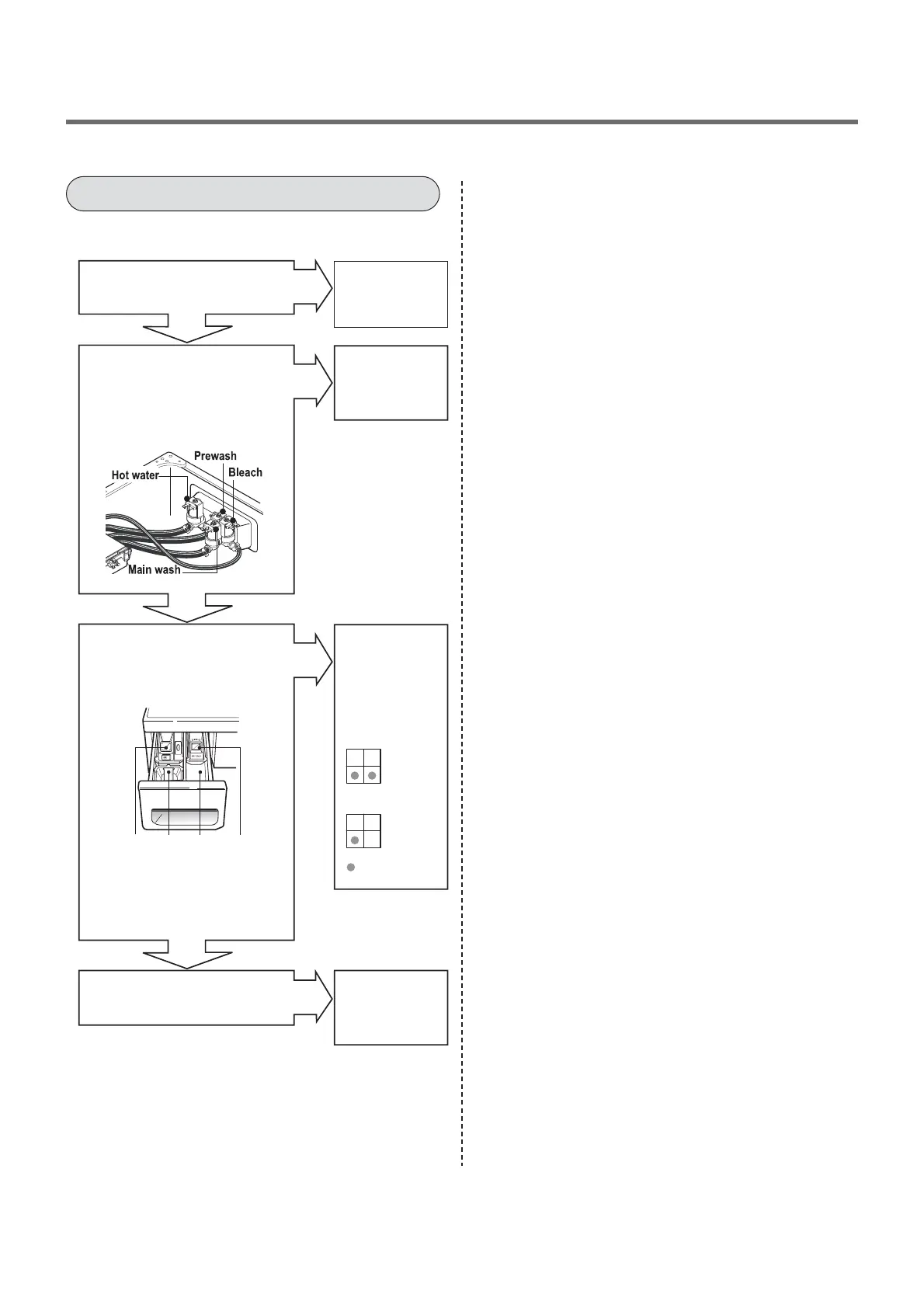

DETERGENT DOES NOT FLOW IN
Refer to
NO WATER
SUPPLY.
Yes
Yes
No
Has detergent been put in
the correct compartment
of the dispenser?
(1) Liquid chlorine Bleach Compartment
(2) Liquid fabric Softener Compartment
(3) Prewash Compartment
(4) Main Wash Compartment
Is the detergent caked or
hardened?
Is water supplied?
Check the
wiring.
No
Are receptacles correctly
connected to the terminals
of the INLET VALVE
ASSEMBLY?
Put the
detergent in
the correct
place.
Clean the
dispenser.
Yes
Yes
No
Pre wash
Main wash
: Detergent
(1) (4) (3) (2)
63
