Be sure to unplug the machine before disassembling and repairing the parts.

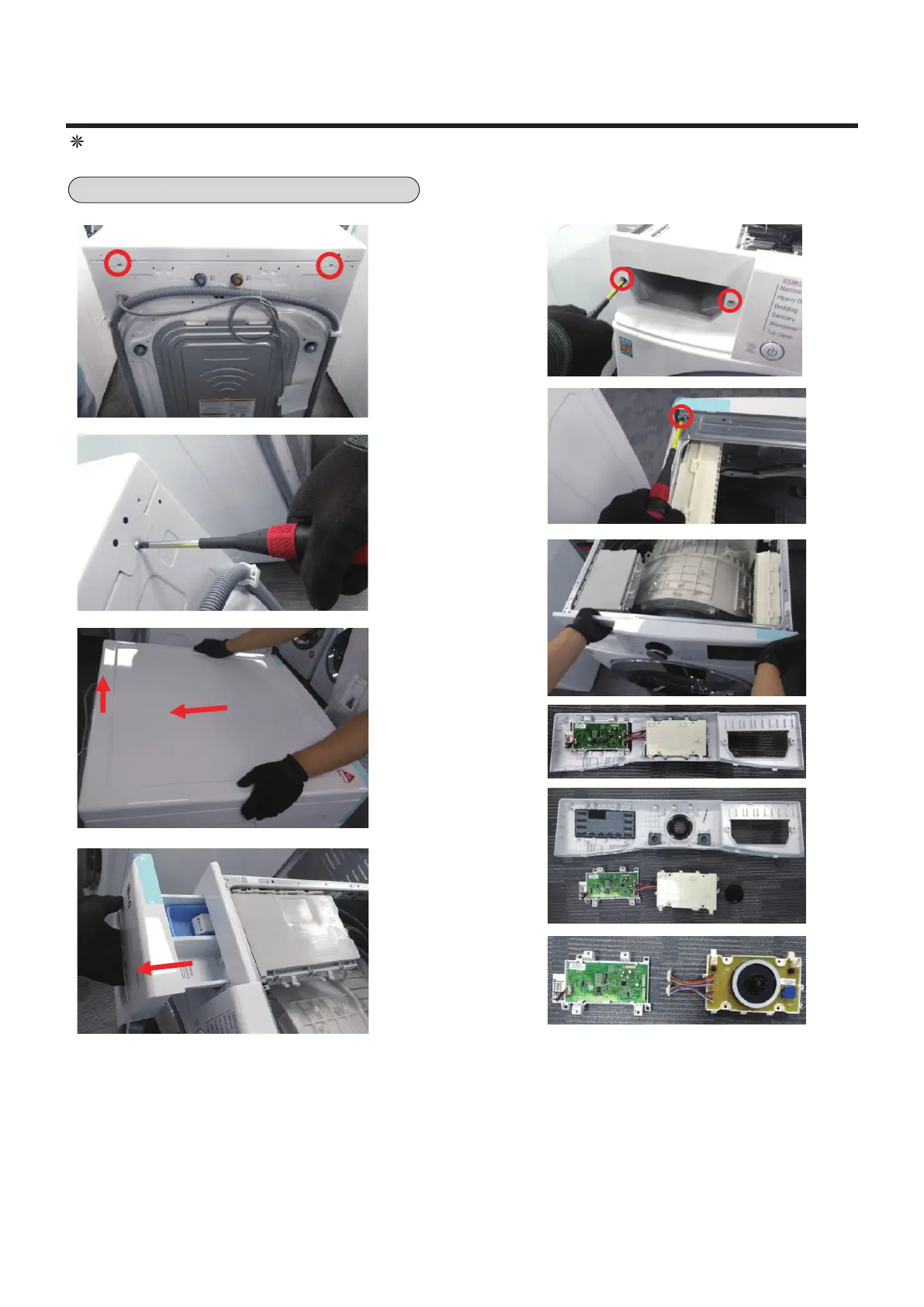

CONTROL PANEL
(1) Unscrew 2 screws on the back of the top plate.
(2) Pull the top plate backward and upward as shown.
(3) Pull out the drawer and unscrew 2 screws as shown.
(4) Remove one backside screw.
(5) Lift the side of the control panel assembly and pull it out.
(6) Disconnect the control panel PCB connector from the cabling.
(7) Unlock all 7 locking snaps & hooks from the control panel assembly.
(8) Remove rotary Knob and disassemble the control panel PCB assembly.
(9) Disconnect control panel PCB connectors from the Display PCB.
