One Touch Type
1
2
3
4
5
6

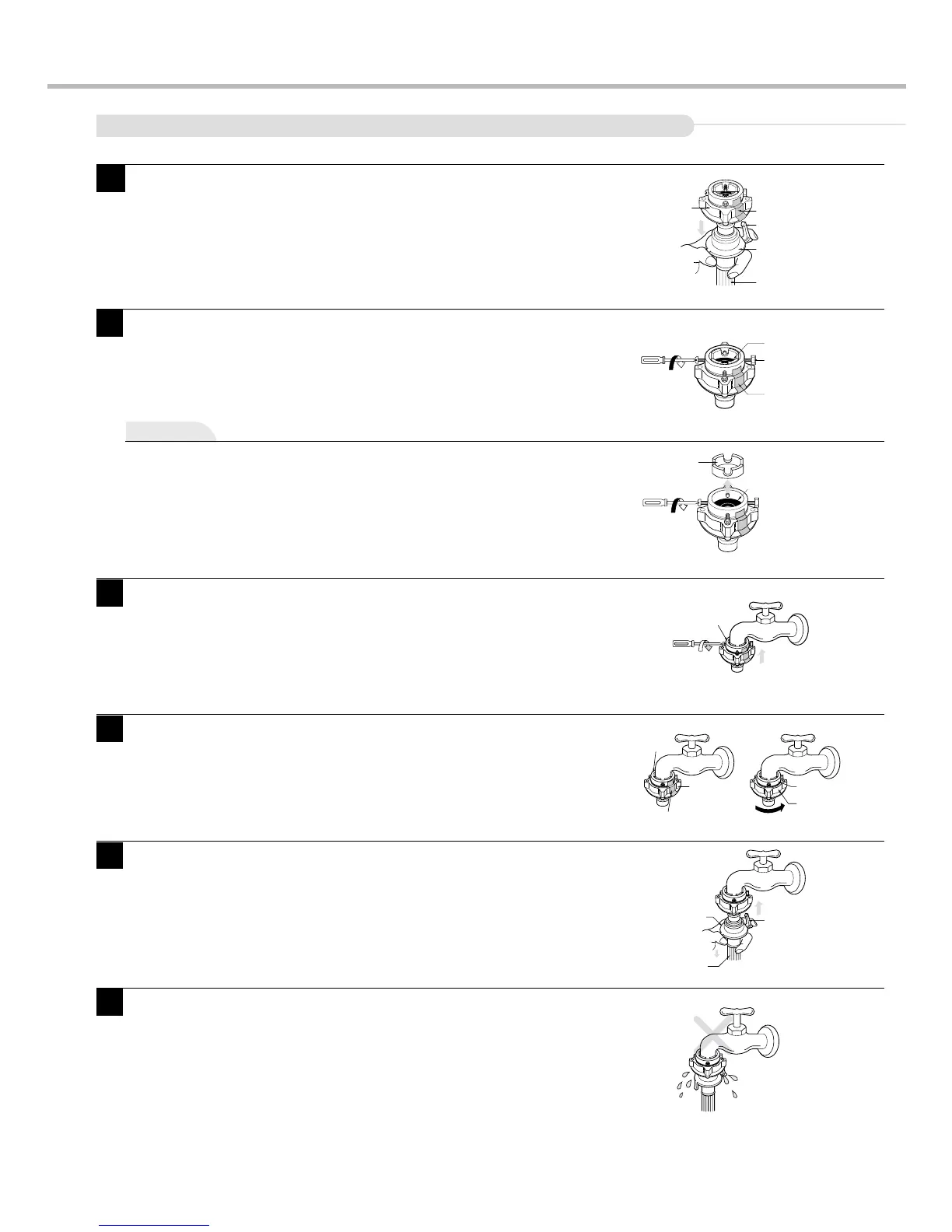

Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water Supply Hose by
pulling the Pressing Rod and the Pressing Handlre that is
attached to the Water Supply Hose.
Fixed Sticker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can be placed
in middle.
In case tap is too large.
If the tap diameter is too large or is square, untighten the
4 screws and remove the guide plate. Then follow
step1.
Rubber packing
Screw
Fixed sticker
Guide plate
Rubber packing
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in
tight contact with the tap. Then tighten the 4 screws.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper and
Middle Connectors. Tighten the connectors by holding
one connector and twist middle connector to the right.
Connector
Fixed sticker
Middle
Connector
Middle
Connector
Connector
Connecting Middle Connector and water Supply Hose
Press down the pressing rod of the Water Supply Hose
whick was separated from middle connector (refer to
Step 1) and then join it to the middle connector.
Pressing handle
Pressing Rod
Water Supply Hose
Check for water leakage
After connecting the hose, open the tap to check for any
water leakage.
If the connection leaks, close the tap and start again
from step 1.
If you skip step 1, water leakage may occur.
(Normal tab without thread & one touch type inlet hose.)
