Liebert 8 Tons - Figure 13 Indoor Air-Cooled Centrifugal Condensing Unit Dimensions and Pipe Connections

Site Preparation and Installation
21

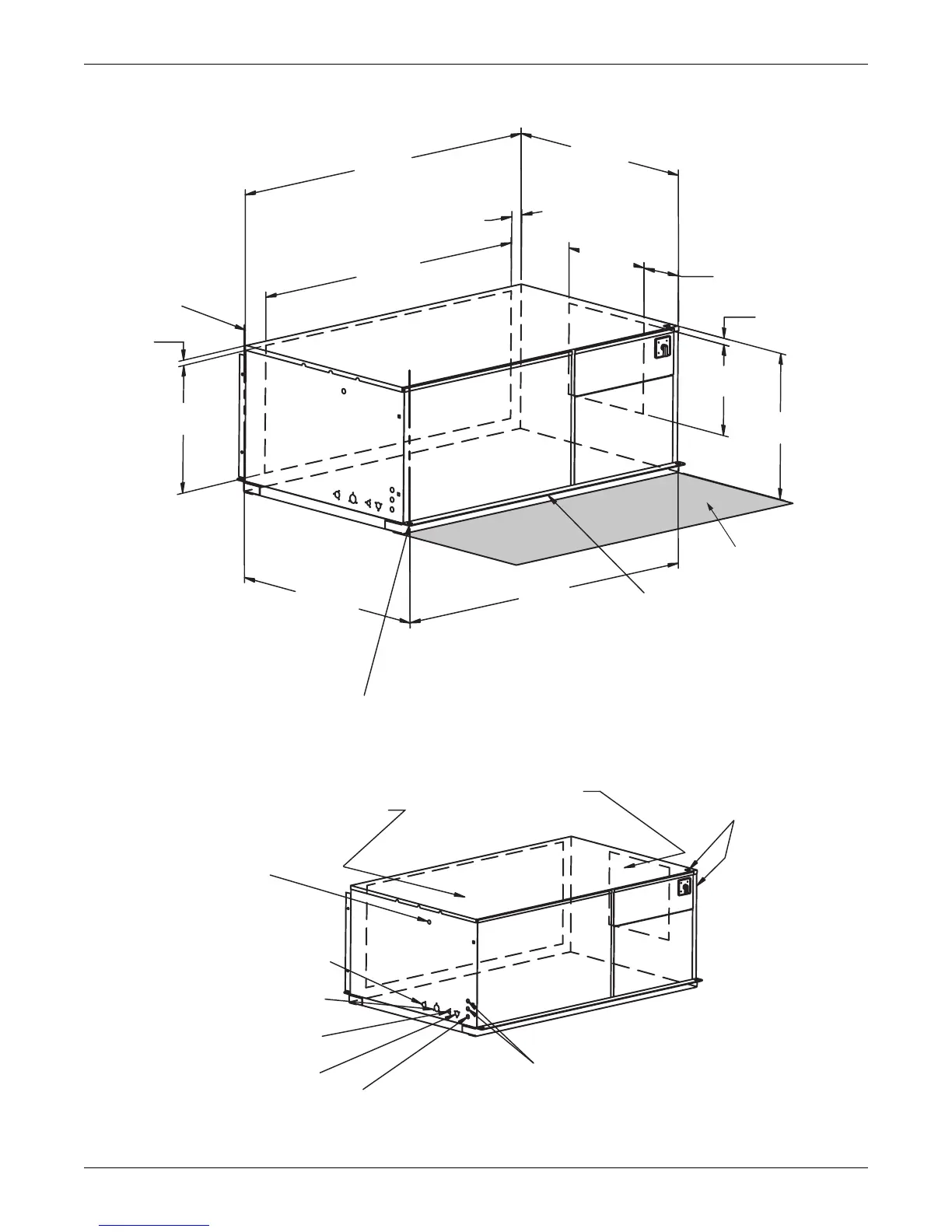

Figure 13 Indoor air-cooled centrifugal condensing unit dimensions and pipe connections
7/8" (22mm) & 1 1/8" (29mm)
dia. knoc
kouts electrical entrance
for high voltage connection
Air Outlet
7/8" (22.2mm) dia. electrical entrance
for low voltage connection.
7/8" (22.2mm) dia. knockout
electrical entrance for alternate
control panel low voltage routing.
Air Inlet
Single Point
Power Kit
connection from Evaporator.
40 5/32 "
8 13/16 "
19 1/32 "
CABINET
DIMENSION
66 9/32 "
59 13/16 "
CABINET
DIMENSION
23 7/8 "
64 1/4 "
42 17/32 "
Shaded area indicates a
recommended clearance of
30" (762mm) for
component
access and
removal.
Hanger
Bracket
Customer supplied
threaded rods for module
support from ceiling (1/2"
minimum diameter
recommended) (typ. 4).
NOTE: Unit is spaced evenly in
reference to threaded
rod centers.
9/16" (14mm) dia. holes for
threaded rods (typ. 2 each end)
1 3/32 "
16 5/16 "
26 3/8 "
1 13/16 "
(1683.5mm)
(1020mm)
(40mm)
(1519mm)
(483mm)
(224mm)
(26mm)
(414mm)
(670mm)
(606mm)
(1080.3mm)
(1
632mm)
THREADED ROD
CENTERS
THREADED ROD
CENTERS
13/16"
(21mm)
System 1 (3Ton) Suction Line Connection,
Aeroquip #11 Male.
System 2 (5Ton) Suction Line Connection,
Aeroquip #12 Male.
System 1 (3Ton) Liquid Line Connection,
Aeroquip #6 Male.
System 2 (5Ton) Liquid Line Connection,
Aeroquip #10 Male.
