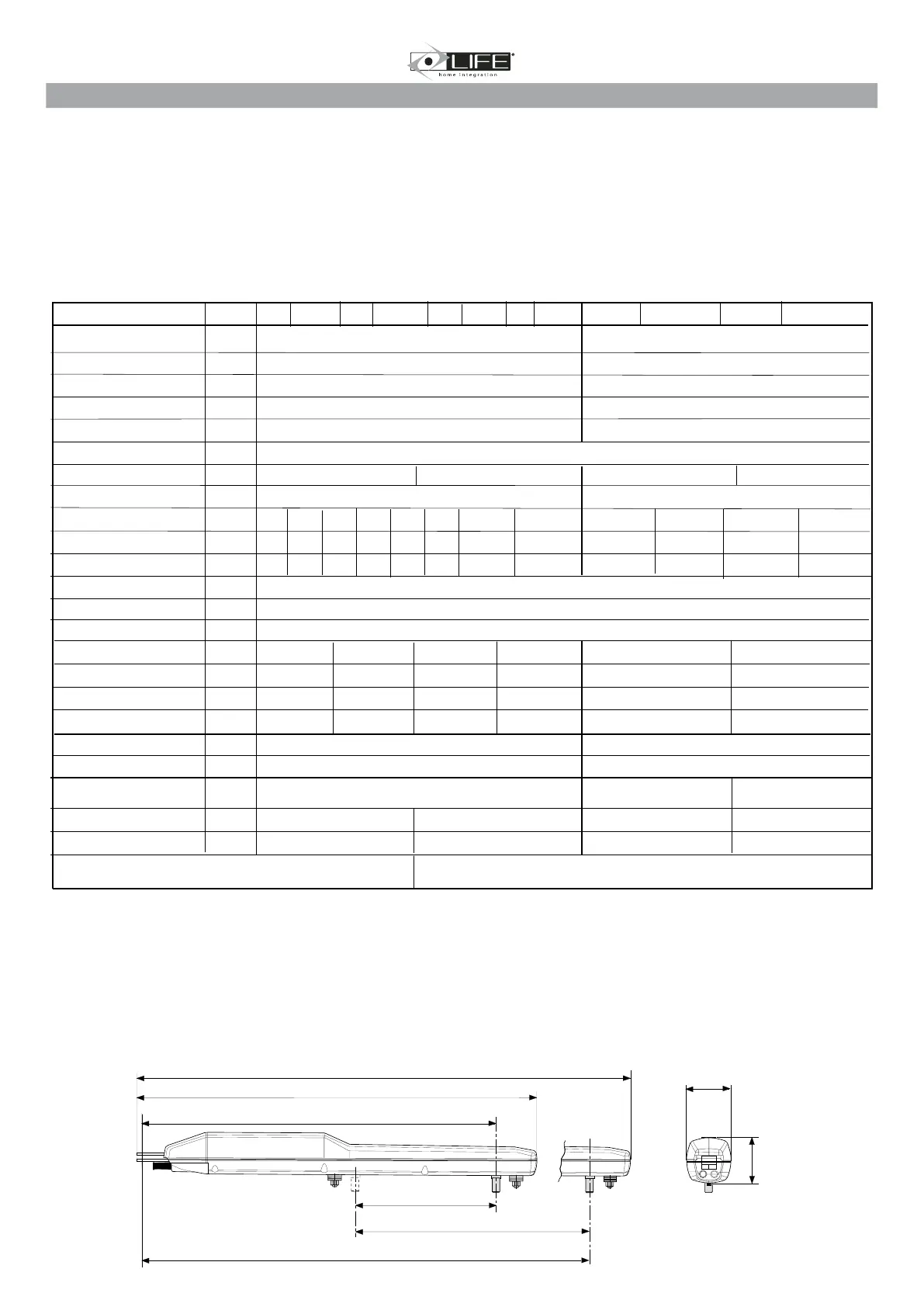

1 TECHNICAL FEATURES
2.0 INSTALLATION
The type of gate, height and shape of the leaf and climatic conditions impose certain limits of use and must be carefully taken
into consideration during installation. The following table is to be considered a rough guide.
860
OP5 450 mm
OP3 300 mm
D=
OP3 775 mm
95
106
1010
D=
OP5 905 mm
Limits of use
LIFE home integration reserves the right to make changes to technical characteristics at any time and without prior notice,
without changing the product’s intended use and function.
NAME OP3 OP3 UNI OP3L OP3L UNI OP5 OP5 UNI OP5L OP5L UNI OP324 OP324 UNI OP524 OP5 UNI
Motor power supply V 230 V ac 50 Hz 24V dc
Power W 210 80
Input A 1,3 3,5
Capacitor µF 8 NO
Thrust N 2000 1800
Lubrication Type grease
Net rod travel mm 300 450 300 450
Thermal protection device °C 140 NO
Stop plate - YES - YES - YES - YES - YES - YES
Electromechanical limit switches YES - YES - YES - YES - YES - YES -
Optic encoder YES NO YES NO YES NO YES NO YES NO YES NO
Connected cable CENELEC H07RN-F
Operating temperature °C from -20 to +70
Protection class IP 54
Speed m/min. 0,96 0,6 0,96 0,6 0,96 0,96
Time to open 90° S 19 30 28 45 19 28
Work cycle % 35 30 35 30 80 80
Nominal work time min. 10 7,5 10 7,5 20 20
Motor insulation class F D
Battery recharge time* h - 48
Opening cycles with
charged battery N° - 15 10
Operator weight kg 8,5 9,5 8,5 9,5
Total dimensions 95x106L=860 95x106L=1010 5x106L=860 95x106L=1010
Use in acid, saline or potentially explosive environment NO
OPTIMO: Irreversible electromechanical operator with 230V or 24V power supply for swing gates with or without optical encoder,
