Lifebreath 94-EXCHANGER User Manual

2
MODEL 94-EXCHANGER-MD - Includes 24 volt motorized damper
21.25"
(540 mm)
STALE AIR
TO OUTSIDE
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM INSIDE
FRESH AIR
TO INSIDE
15"
(380 mm)
18.75"
(475 mm)
*All Duct Connections 6" (150mm)
FILTER
BALANCING
COLLARS
FILTER
ALUMINUM HEAT
EXCHANGE CORE
*NOTE: Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
DRAIN
SPOUT -1/2" O.D.
(DRAIN TUBING - 1/2" I.D.)
TA P E
TO DRAIN
TEE
CONNECTOR
DRAIN
SPOUT - 1/2" O.D.
21.25"
(540 mm)
STALE AIR
TO OUTSIDE
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM INSIDE
FRESH AIR
TO INSIDE
15"
(380 mm)
18.75"
(475 mm)
*All Duct Connections 6" (150mm)
FILTER
BALANCING
COLLARS
FILTER
ALUMINUM HEAT
EXCHANGE CORE
*NOTE: Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
DRAIN
SPOUT -1/2" O.D.
(DRAIN TUBING - 1/2" I.D.)
TA P E
TO DRAIN
TEE
CONNECTOR
DRAIN
SPOUT - 1/2" O.D.
24 VOLT MOTORIZED DAMPER
1204

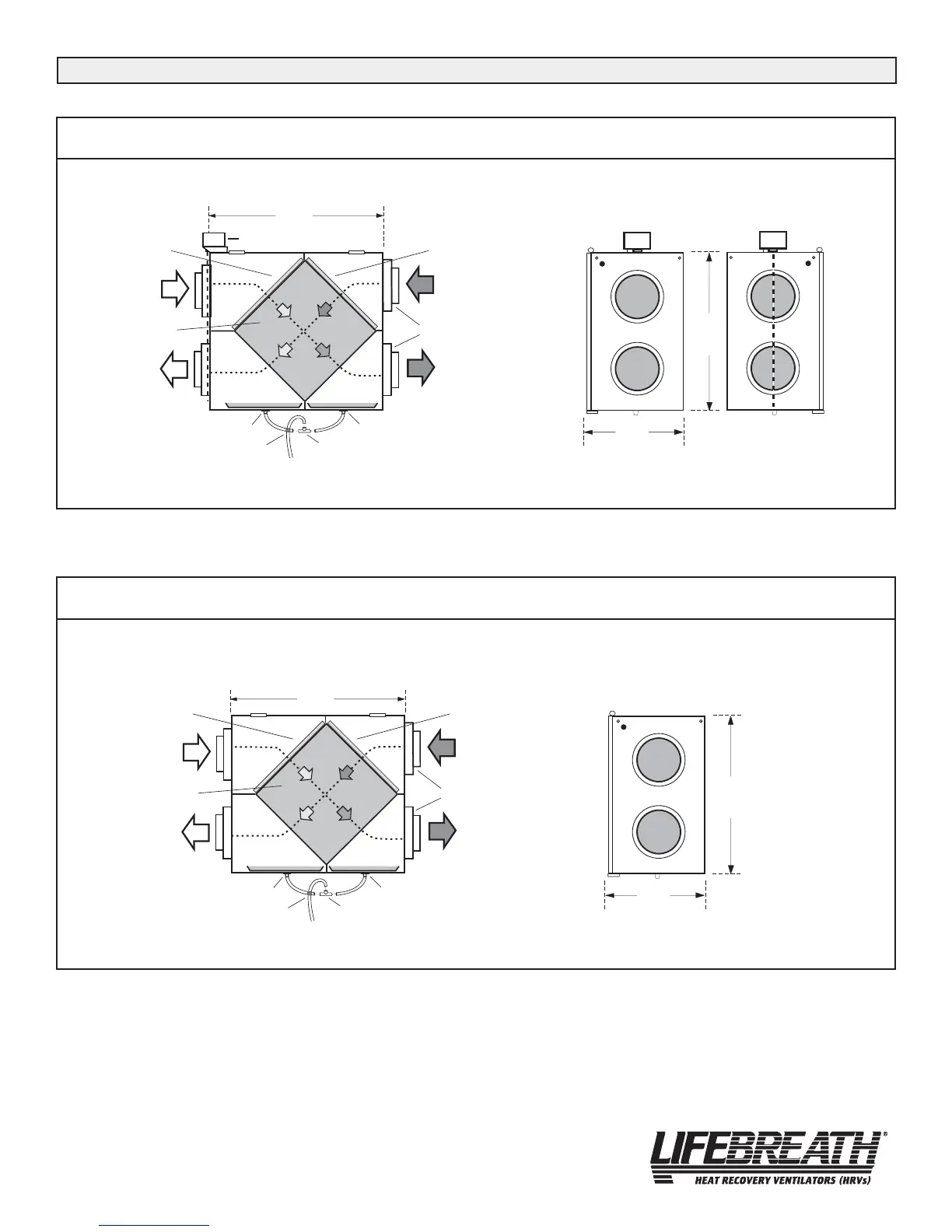

Engineering Data - HRV
Dimensions HRV
inches (mm)
Dimensions HRV
inches (mm)
WARRANTY:
Lifetime warranty on Aluminum Heat Exchange Core.
Five year warranty on all other parts.
MODEL 94-EXCHANGER - No damper. Optional kit (99-MD-KIT) can be added
Typical airflow is between 0 cfm and 130 cfm.
Typical airflow is between 60 cfm and 130 cfm.
Date: ___________________________________________
Tag: _____________________Qty:___________________
Project: _________________________________________
Engineer: _______________________________________
Contractor: ______________________________________
Supplier: ________________________________________
Quote#: _________________________________________
Submitted by: ____________________________________

Lifebreath 94-EXCHANGER Specifications

General

Brand	Lifebreath
Model	94-EXCHANGER
Category	Fan
Language	English
