LifeSpan R-1 User Manual

6

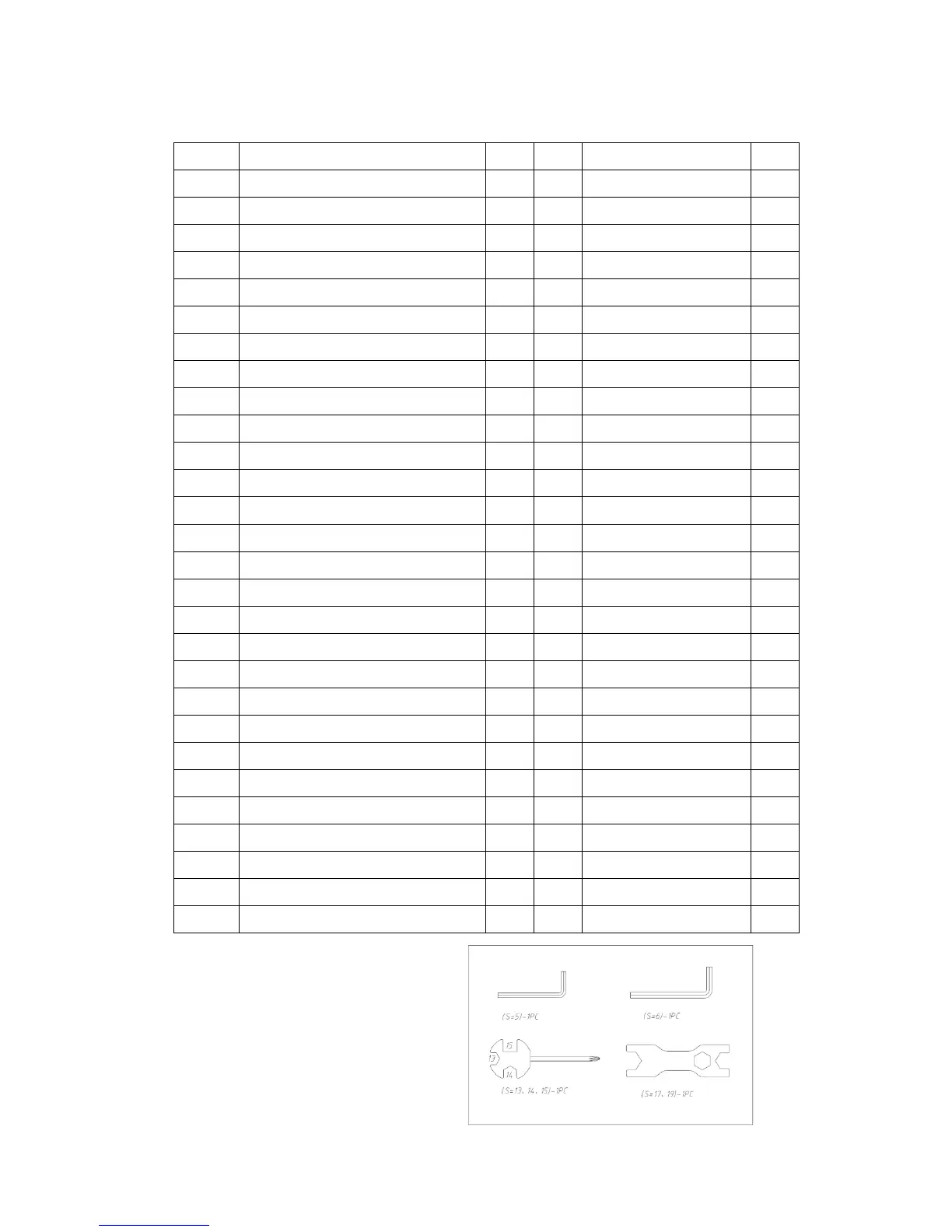

4. PARTS LIST
No.
Description
Qty
No.
Description
Qty
1
Main frame
1
29
Plug
2
2
Front stabilizer
1
30
Handlebar
1
3
End cap
4
31
Foam grip
2
4
Bolt M8x65
2
32
Rope
1
5
Curved washer d8x1.5xΦ20xR30
2
33
Bolt
1
6
Spring washer D8
6
34
Bolt M10x80
1
7
Nut M8
2
35
Sensor wire
1
8
Bolt φ12.5x130xM12x18
2
36
Extended wire
1
9
Washer D13xφ26x2
4
37
Washer D10xφ20x1.5
2
10
Pedal
2
38
Nut M10
1
11
Screw ST4.2x18
10
39
End cap
1
12
Computer
1
40
Adjustable foot pad
1
13L/R
Chain cover
2
41
Cushion pad
2
14
Bolt M8x62
4
42
Sensor
1
15
Washer D8xφ19x1.5
19
43
Screw ST3x10
2
16
Bushing φ12xφ8.5x10.5
4
44
End cap
1
17
Bearing 608
16
45
Rail tube
1
18
Wheel
2
46
Screw M8x16
4
19
Idler wheel
2
47
Rear support frame
1
20
Fixed sleeve
1
48
Bolt M6x17
4
21
Nylon nut M8
7
49
Spring washer D6
4
22
Handlebar
2
50
Washer D6
4
23
End cap
3
51
Saddle post
1
24
Axle M10xφ12x95
1
52
Saddle
1
25
Bearing φ32xφ12x11
2
53
Bolt M8x90
3
26
Wheel
1
54
Wheel
6
27
U-shaped washer
1
55
Bushing φ12xφ8x20
3
28
Rope lock
2
Tools required:
1pc 5mm Hex Wrench
1pc 6mm Hex Wrench
1pc 13mm, 14mm, 15mm Hex Wrench
1pc 17mm, 19mm Wrench
