Unfolding the TR4000i Treadmill
A. Make sure you have adequate space to lay the treadmill down. There
needs to be at least 2 feet of clearance on both sides and in the front of
the treadmill. There should be at least 4 feet of clearance on the back
side of the treadmill for safety reasons. If the user were to fall this would
give adequate clearance to get o the treadmill.
B. Inspect so nothing is on or near your treadmill that might spill, be
knocked over or prevent the treadmill from completely unfolding.

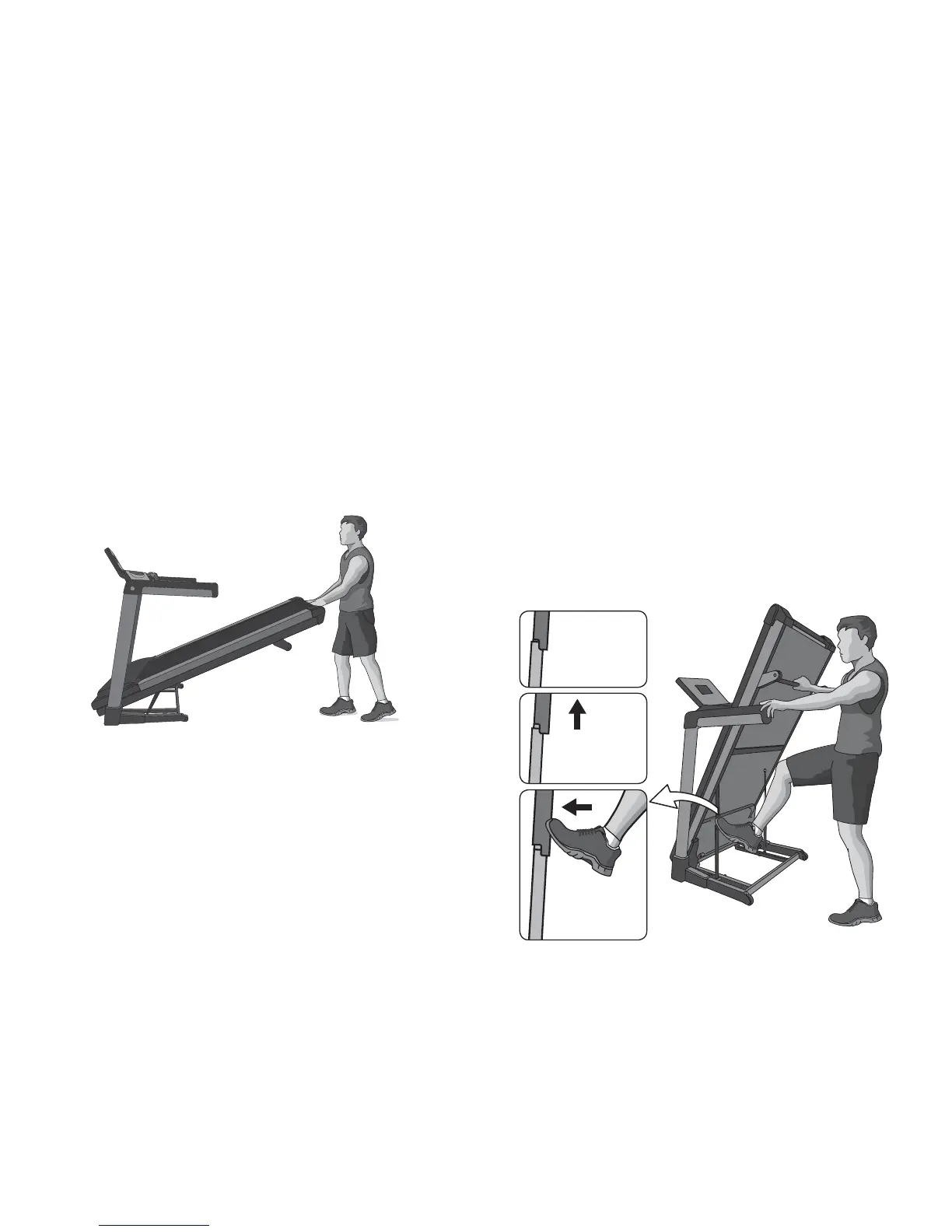

C. Position yourself behind the treadmill. Slightly push the treadmill for-
ward towards the display and with your foot lightly push the top portion
of the left hydraulic shock forward till the locking tube frees and the
treadmill can be pulled back away from the console. (See FIG. 1, 2 & 3)
D. The hydraulic shock is set up to drop softly without assistance. It is not a
bad idea to hold onto the treadmill until it is about 2/3 of the way down.
Make sure that you use proper lifting technique, bending your knees
and keeping your back straight.
Maintenance and Tips Maintenance and Tips
Folding the TR4000i Treadmill
A. Make sure that the On/O switch is turned O and the power cord is
removed from the wall.
B. Make sure that nothing is on or near your treadmill which might spill, be
knocked over or prevent the treadmill from completely folding.
C. Place both hands under the support bar that is located directly under
the back of the running belt on your treadmill to make sure that you
have a solid lifting point.
D. Lift the treadmill all of the way forward and make sure that the
hydraulic shock is properly locked in place.
E. Ensure that the locking mechanism is secure by gently pulling back on
the treadmill and make sure that it doesn’t move.
CAUTION:
• Use proper safety precautions and lifting techniques. Bend your knees
and elbows, keep your back straight and pull up with both arms.
• Do not fold the treadmill by lifting on the running belt or rear roller.
• Do not lean against the treadmill once it is folded or place items on it
that could cause it to become unstable or fall over.
• Do not connect the power cord when the treadmill is folded or try to
operate the treadmill in the folded position.
Locked position
of hydaulic shock
Slightly pushing up
on treadmill releases
pressure on joint
Lightly
pushing top of hydraulic
shock aligns and unlocks
upright position and
allows treadmill to softly
drop down
Figure 1
Figure 2
Figure 3
