Assembling Your Treadmill

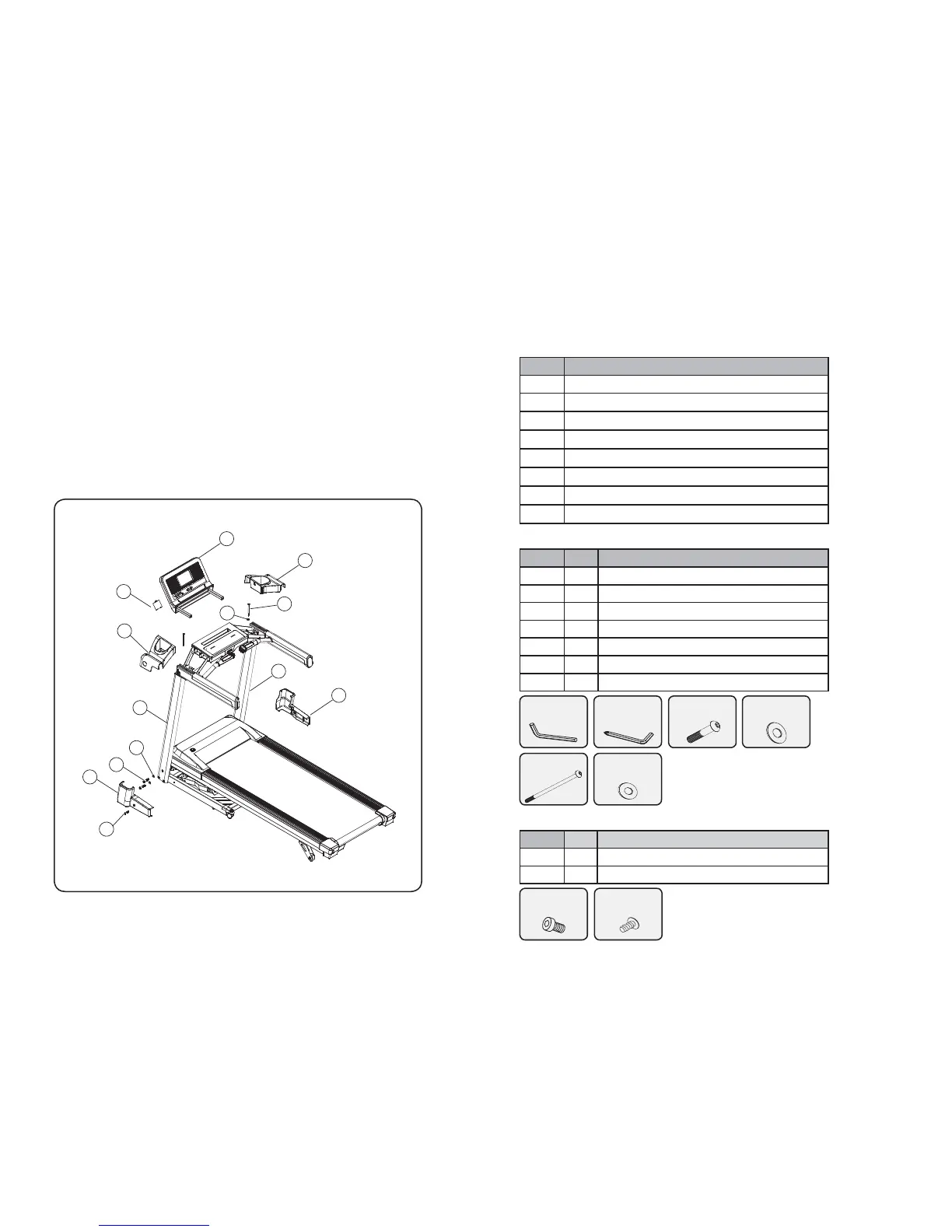

Exploded View
Prior to starting the assembly process take all of the parts out of the box.
Remove plastic bags and lay them out on the  oor to become familiar with
the components.
Since your treadmill is a heavy piece of equipment it is recommended you use
two people during assembly and follow these assembly instructions to reduce
any problems that could occur.
Hardware Included
Item# Part Description
1 Right Upright Post
2 Left Upright Post
3 Right Upright Post Cover
4 Left Upright Post Cover
5 Console
6 Right Cup Holder
7 Left Cup Holder
8 Cover for Optional Bluetooth Adapter
Hardware Bag Contents
Item # Qty. Hardware Description
N/A 1 6mm Allen Wrench
N/A 1 5mm Allen Wrench w/Phillips Screw Driver
9 4 M10 x 55L Bolt -
(Upright Attachment)
10 4 M10 Washer - (Upright Attachment)
11 2 M8 x 100L Bolt - (Handlebar Hold Down)
12 2 M8 Washer - (Handlebar Hold Down)
13 2 M4 x 10L - (Upright Cover Attachment)
Pre-installed Hardware (not shown)
Item # Qty. Hardware Description
14 4 M8 x 15L Bolt -
(Console Attachment)
15 4 M4 x 10L Screw - (Cup Holder Attachment)
Assembling Your Treadmill
M8 x 15L
(x4)
M10 x 55L
(x4)
6mm Allen
Wrench
5mm Allen
Wrench w/
Phillips
M10 Washer
(x4)
M8 x 100L
(x2)
M8 Washer
(x2)
M4 x 10L
(x4)
8
2
1
3
4
5
6
7
9
10
11
12
13
