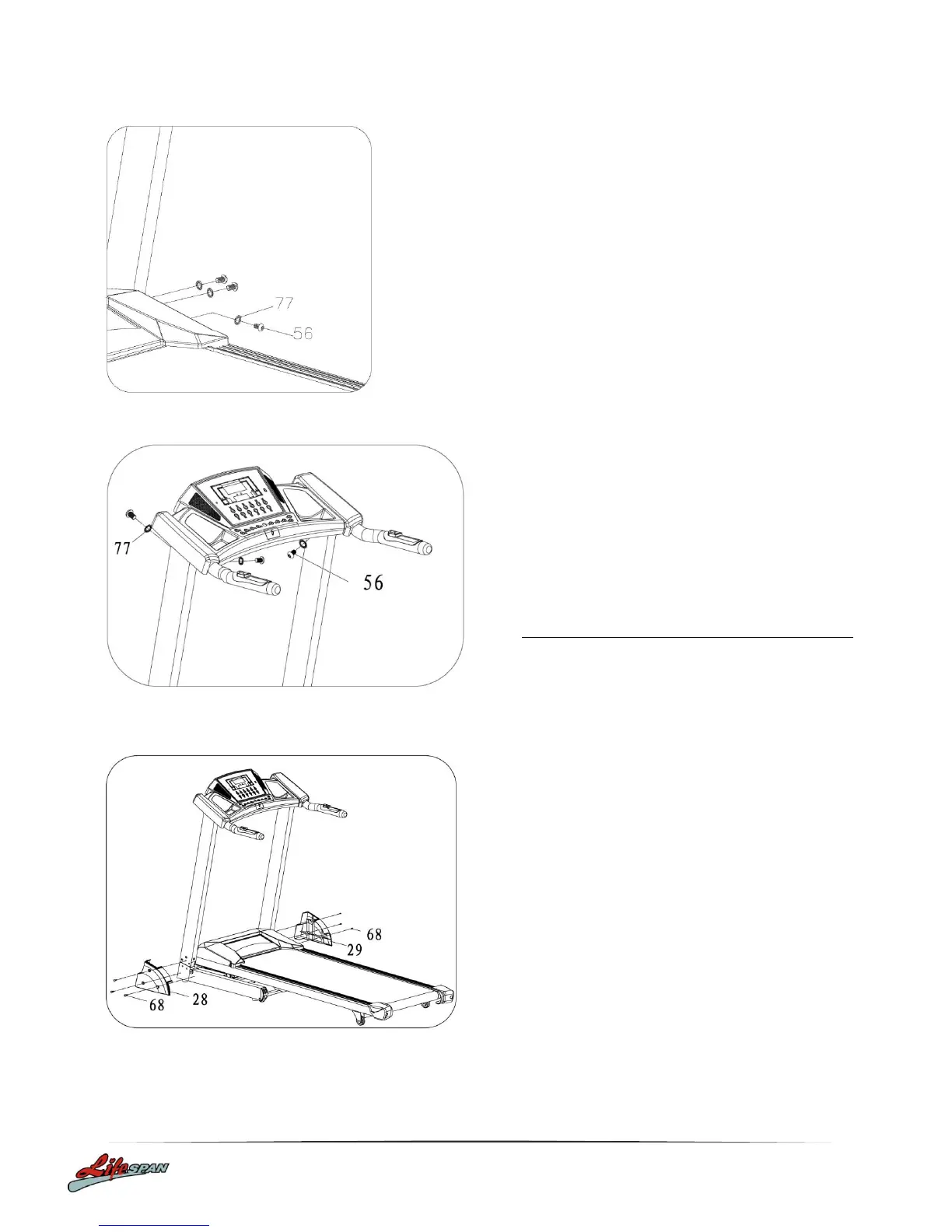

1. Using the 6# Allen wrench, screw through
the bolt (56) M10*15 to Lock washer (77),
then lock the Right upright tube onto MAIN
FRAME.
Note: Support the Computer with your hands to
prevent it falling down and causing injury.
1. Use the 6# Allen wrench, screw through the
bolt (56) M10*15 to Lock washer (77), then
lock the COMPUTER (64) onto R&L upright
tubes.
1. Lock the left upright tube cover (28) and
right upright tube cover (29) onto the base
frame with screw (68) M5*8
To Next Page
