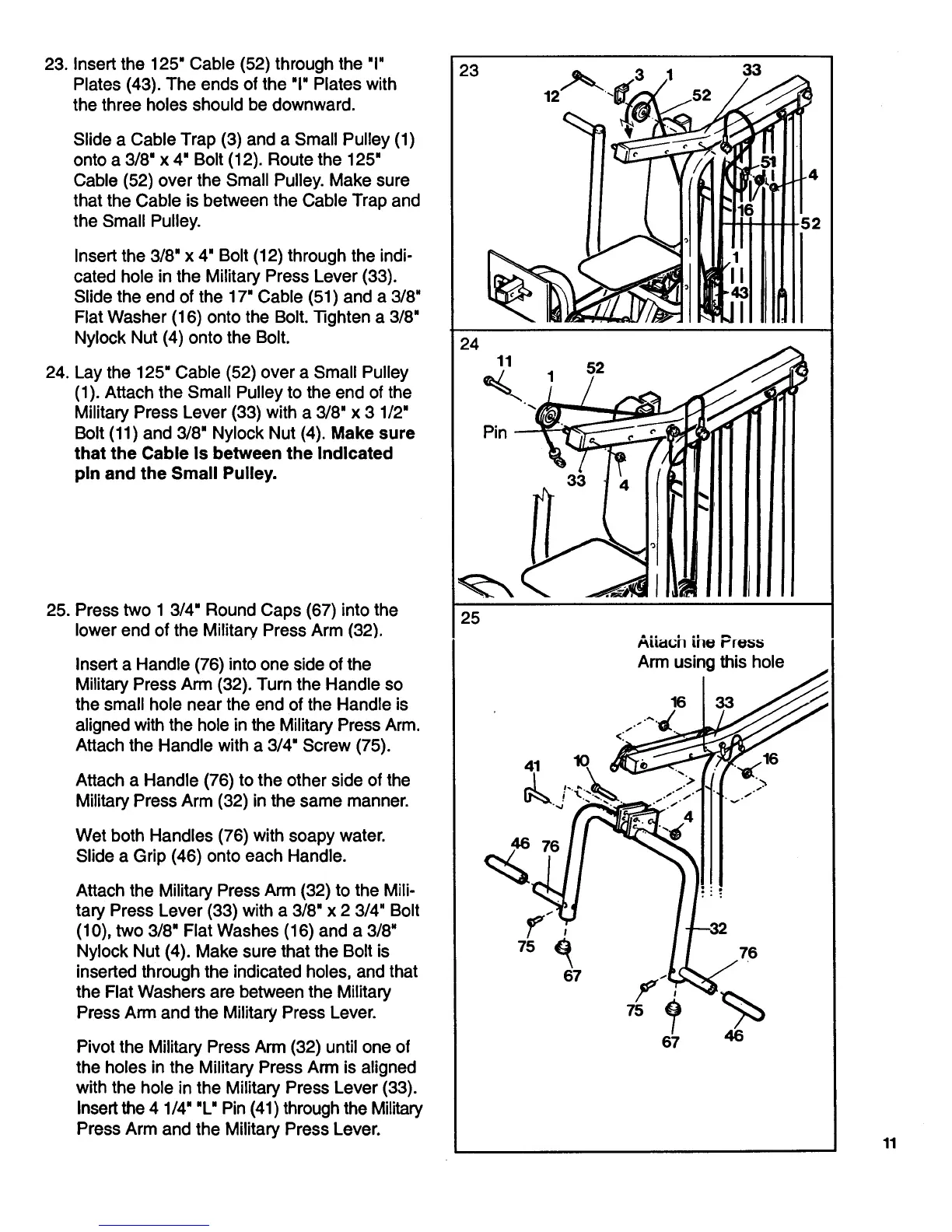

23. Insert the 125" Cable (52) through the "1"
Plates (43). The ends of the "1"Plates with
the three holes should be downward.
Slide a Cable Trap (3) and a Small Pulley (1)
onto a 3/8" x 4" Bolt (12). Route the 125"
Cable (52) over the Small Pulley. Make sure
that the Cable is between the Cable Trap and
the Small Pulley.
Insert the 3/8" x 4" Bolt (12) through the indi-
cated hole in the Military Press Lever (33).
Slide the end of the 17" Cable (51) and a 3/8"
Flat Washer (16) onto the Bolt. 13ghten a 3/8"
Nylock Nut (4) onto the Bolt.
24. Lay the 125" Cable (52) over a Small Pulley
(1). Attach the Small Pulley to the end of the
Military Press Lever (33) with a 3/8" x 3 1/2"
Bolt (11) and 3/8" Nylock Nut (4). Make sure
that the Cable Is between the Indicated
pin and the Small Pulley.
25. Press two 1 3/4" Round Caps (67) into the
lower end of the Military Press Arm (32).
Insert a Handle (76) into one side of the
Military Press Arm (32). Turn the Handle so
the small hole near the end of the Handle is
aligned with the hole in the Military Press Arm.
Attach the Handle with a 3/4" Screw (75).
Attach a Handle (76) to the other side of the
Military Press Arm (32) in the same manner.
Wet both Handles (76) with soapy water.
Slide a Grip (46) onto each Handle.
Attach the Military Press Arm (32) to the Mili-
tary Press Lever (33) with a 3/8" x 2 3/4" Bolt
(10), two 3/8" Flat Washes (16) and a 3/8"
Nylock Nut (4). Make sure that the Bolt is
inserted through the indicated holes, and that
the Flat Washers are between the Military
Press Arm and the Military Press Lever.
Pivot the Military Press Arm (32) until one of
the holes in the Military Press Arm is aligned
with the hole in the Military Press Lever (33).
Insert the 4 1/4" "L' Pin(41) throughthe Military
Press Arm and the Military Press Lever.
23
24
11
Pin
25
46
52
1
33
41 10
67
Aiiuch ihe Press
Arm using this hole
16
s. o
<
76
67 46
11
To Next Page
